22025 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) RECOIL STARTER ASSEMBLY Parts Diagram

Walk-Behind Mower

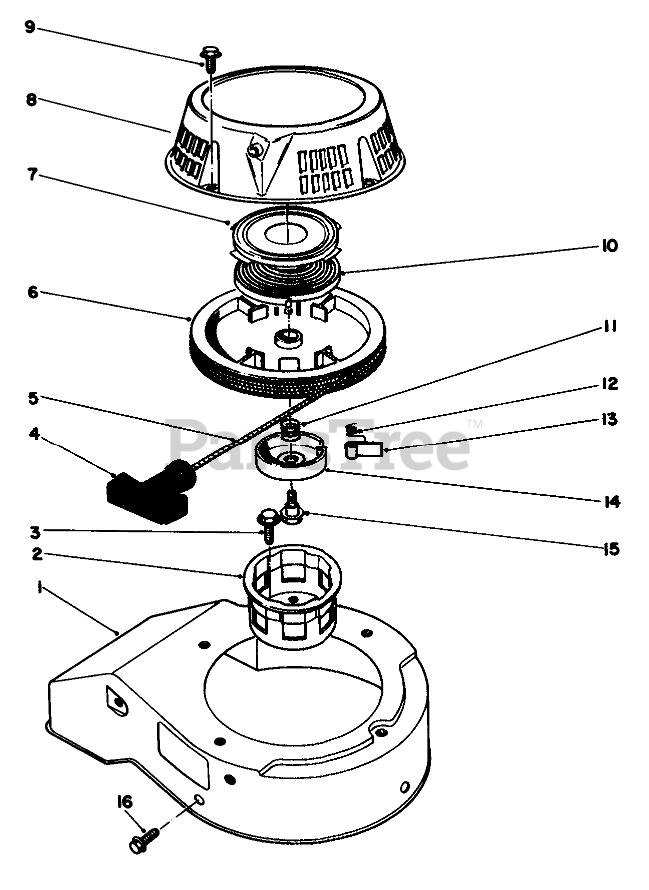

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title
1

Toro 81-2080

Cover-Cooling Fan
(Superseded to 81-2070)

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

3

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

5

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

In Stock, only 1 left!

0

6

$54.99

$

In Stock, only 2 left!

0

7

Toro 81-1640

Retainer-Recoil Spring
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

8

Toro 81-2100

CASE-STARTER

$230.99

$

Usually ships in 3-6 days

0

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

10

Toro 81-1200

Spring-Recoil
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

11

Toro 81-1240

SPRING

$

$

Not available

12

Toro 81-1220

SPRING

$

$

Not available

13

$

$

Not available

14

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

15

$

$

Not available

16

$

$

Not available

Toro 81-2030

Starter Assembly (Incl. Ref. #4-15)
(Superseded to 81-5940)

Note: Not illustrated

$

$

Not available

Toro 81-2300

Recoil & Cup (Incl. Ref. #7 & 10)

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0
