22025 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) RECOIL ASSEMBLY (MODEL NO. 47PK9-3) Parts Diagram

Walk-Behind Mower

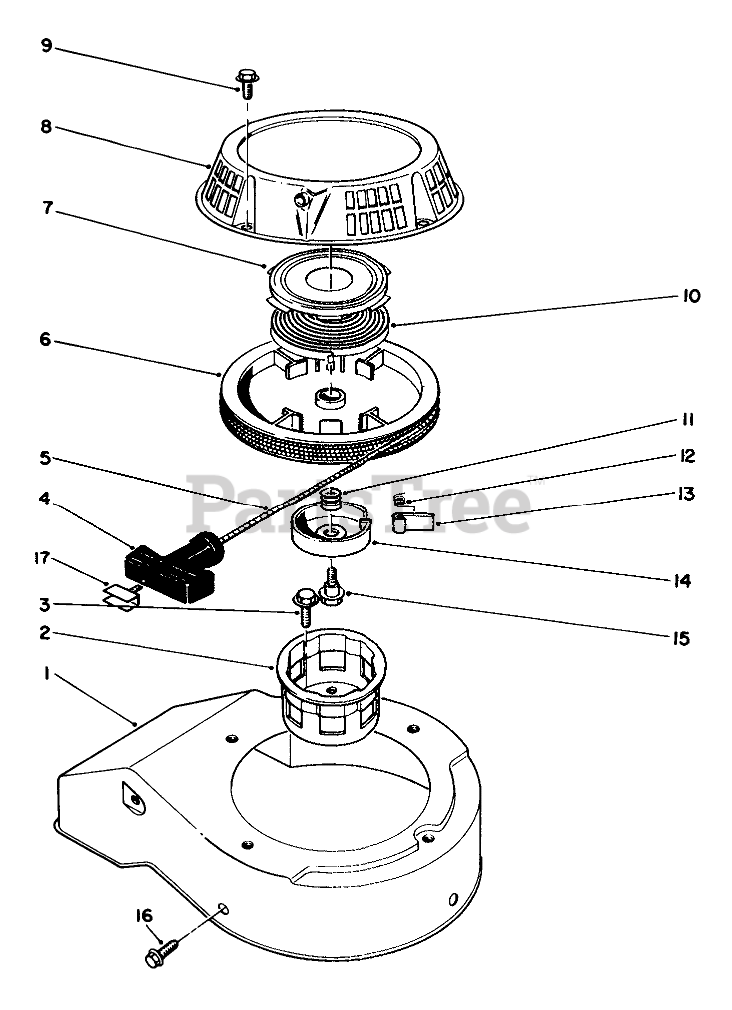

RECOIL ASSEMBLY (MODEL NO. 47PK9-3) Parts Diagram

  • Title

1

Toro 81-2080

Cover-Cooling Fan
(Superseded to 81-2070)

$

$

Not available

2

Toro 81-2170

PULLEY-CUP, STARTER

$99.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$10.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$

$

Not available

5

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$37.99

$

In Stock, only 1 left!

0

6

Toro 81-1210

REEL

$58.99

$

In Stock, only 2 left!

0

7

Retainer-Spring, Recoil

$

$

Not available

8

Toro 81-2100

CASE-STARTER

$244.99

$

Usually ships in 3-6 days

0

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

10

Spring-Recoil

$

$

Not available

11

Toro 81-1240

SPRING

$

$

Not available

12

Toro 81-1220

SPRING

$

$

Not available

13

Toro 81-1230

DOG

$

$

Not available

14

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

15

Toro 81-1260

BOLT

$

$

Not available

16

Toro 81-1170

BOLT

$

$

Not available

17

Toro 81-5760

Insert Handle

$

$

Not available

Toro 81-2030

Starter Assembly (Incl. Ref. #4-15)
(Superseded to 81-5940)

$

$

Not available

Toro 81-2300

Spring & Retainer Assembly (Incl. Ref. #7 & 10)

$46.99

$

In Stock, only 2 left!

0
