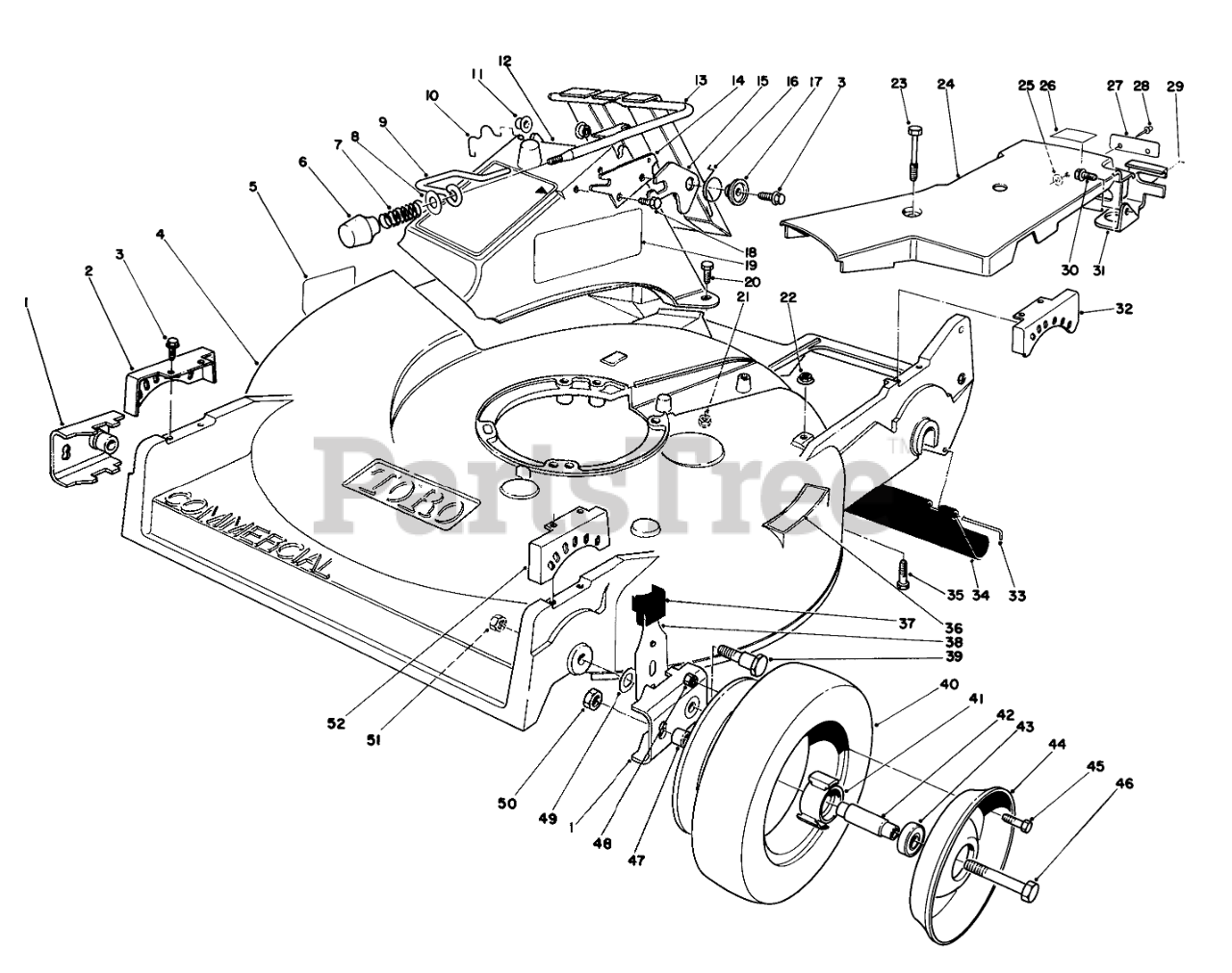

22020 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HOUSING ASSEMBLY (MODEL 22020) Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY (MODEL 22020) Parts Diagram

  • Title

1

Toro 49-9160

PIVOT ARM

$64.99

$

Usually ships in 3-6 days

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, Qty 6

0

3

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 11-7859

Housing (Incl. Ref. #5 & 36)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

6

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$8.99

$

Usually ships in 3-6 days

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 36-1350

DISCHARGE CHUTE B

$356.99

$

Usually ships in 3-6 days

0

13

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 29-4720

DECAL SAF INST

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

24

Toro 48-2770

Belt Cover Assembly (Incl. Ref. #25 & 27-28)

$

$

Not available

25

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

26

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$2.49

$

In Stock, only 2 left!

0

27

Toro 48-2790

NAMEPLATE-GRD SPEED

$

$

Not available

28

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

29

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

30

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

31

Toro 46-5870

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

32

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$26.99

$

In Stock, only 4 left!

0

33

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

34

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

37

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

38

Toro 49-8800

SPRING ARM ASM-FRONT

$40.99

$

Usually ships in 3-6 days

0

39

Toro 49-9180

PIVOT SCREW

$9.99

$

Usually ships in 3-6 days

0

40

Toro 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

41

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

42

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

43

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

44

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 2 left!

0

45

Toro 3234-26

SCREW-HHF

$2.99

$

In Stock, Qty 15

0

46

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

47

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

48

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 49-9150

WASHER-PIVOT

$0.99

$

Usually ships in 3-6 days

0

50

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

51

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

52

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, only 4 left!

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #40-45 & 48)
(Superseded to 121-1380)

Note: Not illustrated

$100.99

$

In Stock, only 3 left!

0

Toro 53-7760

Hub Assembly (Incl. Ref. #41-45 & 48)
(Superseded to 121-1380)

Note: Not illustrated

$100.99

$

In Stock, only 3 left!

0

Toro 11-5639

Chute & Door Assembly (Incl. Ref. #3 & 6-21)

Note: Not illustrated

$

$

Not available
