22020 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY (MODEL 22020) Parts Diagram

Walk-Behind Mower

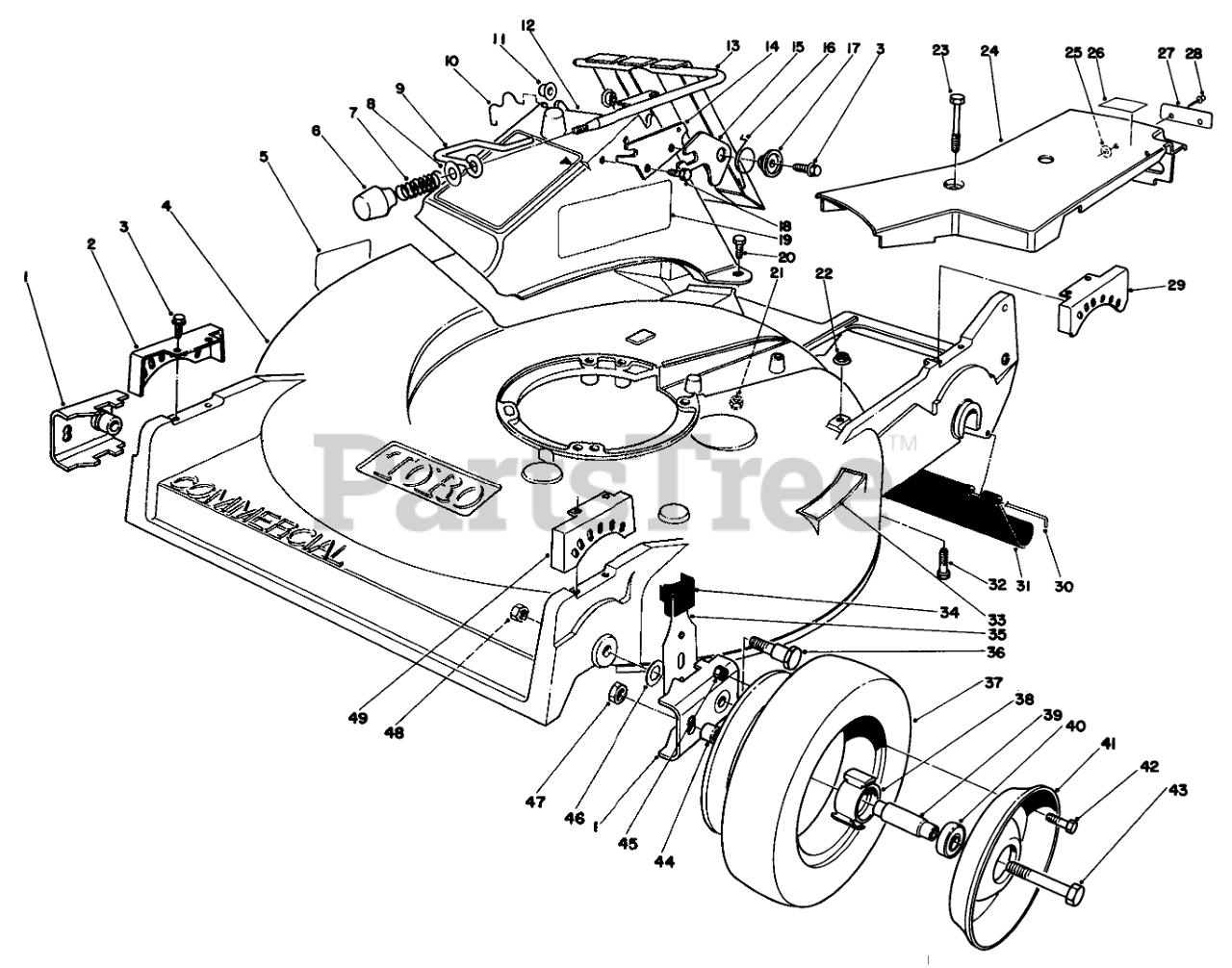

HOUSING ASSEMBLY (MODEL 22020) Parts Diagram

  • Title

1

Toro 49-9160

PIVOT ARM

$74.99

$

Usually ships in 3-6 days

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

3

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 11-7059

Housing (Incl. Ref. #5 & 33)
(Superseded to 11-7859)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 11-5639

Chute & Door Assembly (Incl. Ref. #3 8 6-21)

$

$

Not available

13

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 29-4720

DECAL SAF INST

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

24

Toro 48-2770

Belt Cover Assembly (Incl. Ref. #25 8 27-28)

$

$

Not available

25

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

26

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$3.49

$

In Stock, only 2 left!

0

27

Toro 48-2790

NAMEPLATE-GRD SPEED

$

$

Not available

28

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

29

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$27.99

$

In Stock, only 4 left!

0

30

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

31

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

32

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

34

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

35

Toro 49-8800

SPRING ARM ASM-FRONT

$46.99

$

Usually ships in 3-6 days

0

36

Toro 49-9180

PIVOT SCREW

$

$

Not available

37

Toro 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

38

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

39

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

40

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

41

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

42

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

43

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

44

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

45

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

46

Toro 49-9150

WASHER-PIVOT

$0.99

$

Usually ships in 3-6 days

0

47

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

48

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

49

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #37-42 8 45)
(Superseded to 121-1380)

Note: Not illustrated

$101.99

$

In Stock, only 3 left!

0
