22020 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY (MODEL 22015) Parts Diagram

Walk-Behind Mower

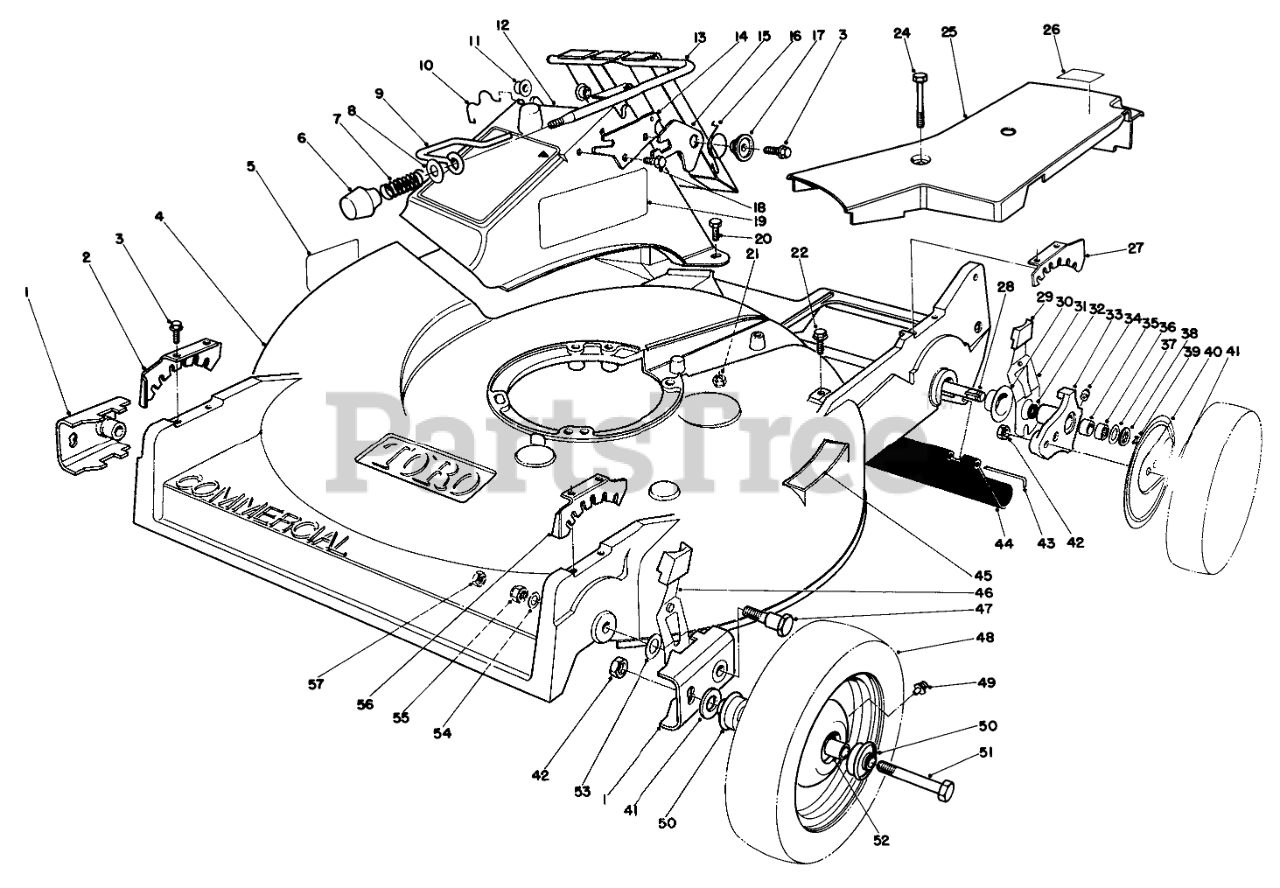

HOUSING ASSEMBLY (MODEL 22015) Parts Diagram

  • Title

1

Toro 48-2320

PIVOT ARM ASM

$

$

Not available

2

Toro 48-2660

RH QUADRANT

$

$

Not available

3

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 48-2760

Housing
(Superseded to 11-7859)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 11-5639

Chute & Door Assembly (Incl. Ref. #3, 6-11 & 13-21)

$

$

Not available

13

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-1010

Latch Safety

$

$

Currently unavailable

16

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 29-4720

DECAL SAF INST

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

22

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

24

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

25

Toro 48-2800

Belt-Cover
(Superseded to 63-9441)

$52.99

$

Usually ships in 3-6 days

0

26

Toro 48-2670

Label-Grease
(Superseded to 52-2610)

$

$

Not available

27

Toro 48-2630

Quadrant-Rear L.H.

$

$

Not available

Toro 48-2640

Quadrant-Rear R.H.

Note: Not illustrated

$

$

Not available

28

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

29

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

30

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

31

Toro 48-2390

SPRING ARM ASM

$

$

Not available

32

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

33

Toro 48-2540

Pivot Arm Assembly (Incl. Ref. #32, 34-36)
(Superseded to 53-7940)

$

$

Not available

34

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

35

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

36

Toro 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

37

Toro 48-2890

THRUST WASHER

$

$

Not available

38

Toro 48-2580

KEYED WASHER

$14.99

$

Usually ships in 3-6 days

0

39

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 6

0

40

Toro 44-0600

WHEEL COVER

$

$

Not available

41

Toro 48-2920

WHEEL SPACER-HP

$

$

Not available

42

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

43

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

44

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

45

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

46

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$

$

Not available

47

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 8

0

48

Toro 48-2291

Wheel & Tire Assembly (Incl. Ref. #49-50 & 52)
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

49

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

50

Toro 48-2970

Bearing-Flanged

$

$

Currently unavailable

51

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

52

Toro 48-2910

Spacer-Wheel Bearing

$

$

Not available

53

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

54

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

55

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Toro 48-2650

LH QUADRANT

$

$

Not available

57

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0
