22015 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE BRIGGS & STRATTON MODEL 131922-0163-01 Parts Diagram

Walk-Behind Mower

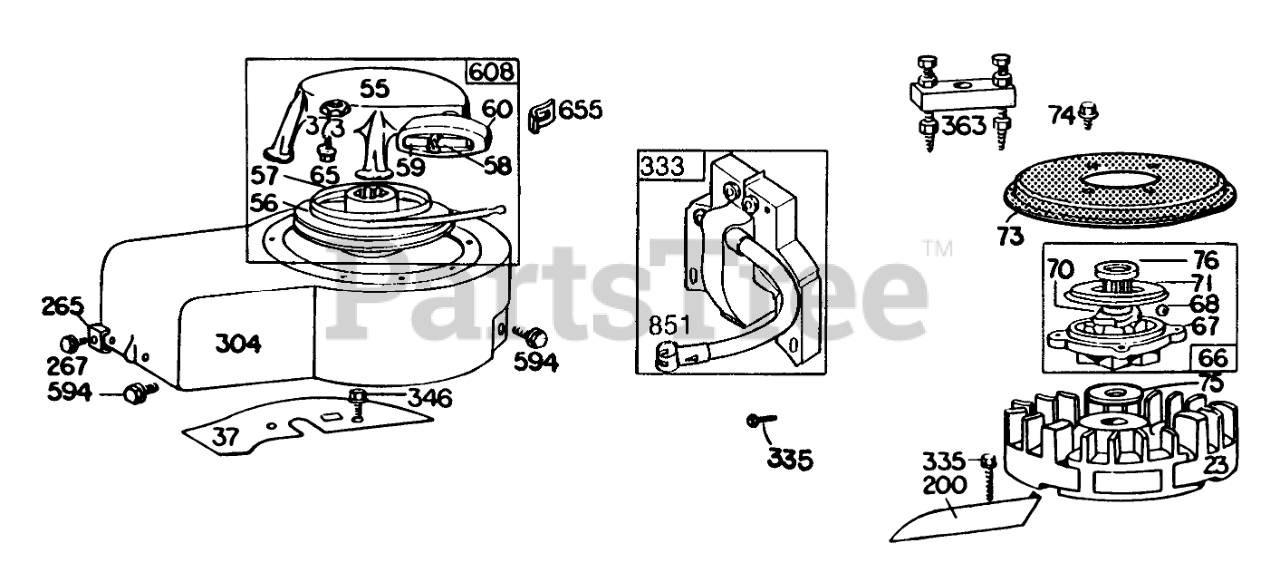

ENGINE BRIGGS & STRATTON MODEL 131922-0163-01 Parts Diagram

  • Title

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

65

Briggs & Stratton 94128

Screw
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221923

Screen-Rewind Starter

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 392277

Housing-Blower

$

$

Not available

333

Briggs & Stratton 397358

Armature Group

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

363

Toro 19060

Flywheel Puller

$

$

Currently unavailable

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

594

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

608

Briggs & Stratton 390463

Starter-Rewind

$

$

Not available

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
