22015 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY (MODEL 22015) Parts Diagram

Walk-Behind Mower

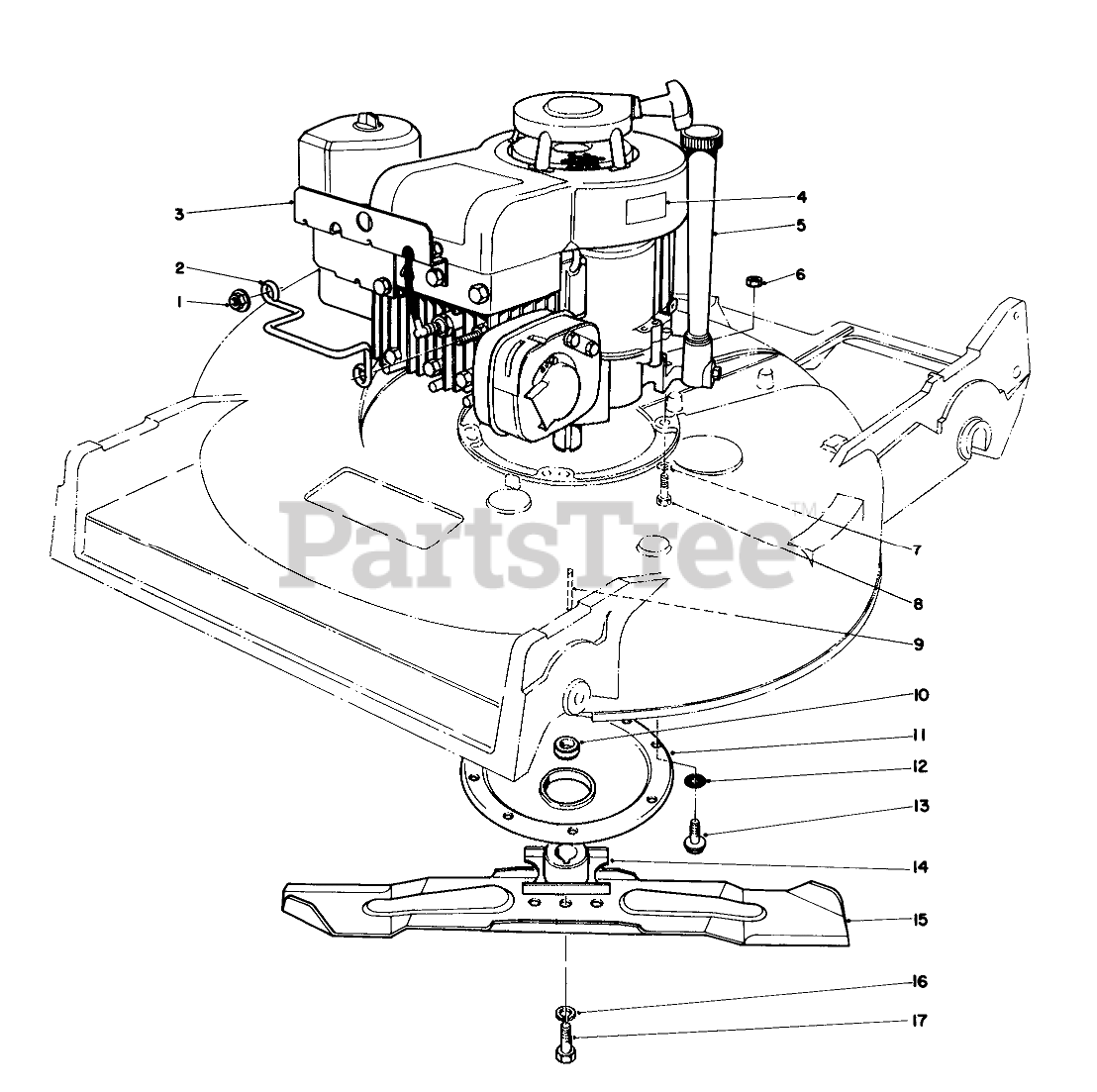

ENGINE ASSEMBLY (MODEL 22015) Parts Diagram

  • Title

1

Toro 32128-35

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 48-2190

Protector-Spark Plug

$

$

Not available

3

Toro 48-2940

ENGINE GD BRKT

$

$

Not available

4

Toro 48-2900

Decal-Oil Caution

$

$

Not available

5

Toro 48-2860

Engine

$

$

Currently unavailable

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

9

Toro 5-0930

KEY

$

$

Not available

10

Toro 48-2710

BLADE RETAINER SPACER

$

$

Not available

11

Toro 48-2591

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

12

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

13

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

14

Toro 48-2700

BLADE RETAINER W A

$

$

Not available

15

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

17

Toro 23-0080

BLADE SCREW

$

$

Not available
