22015 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY (MODEL 22020) Parts Diagram

Walk-Behind Mower

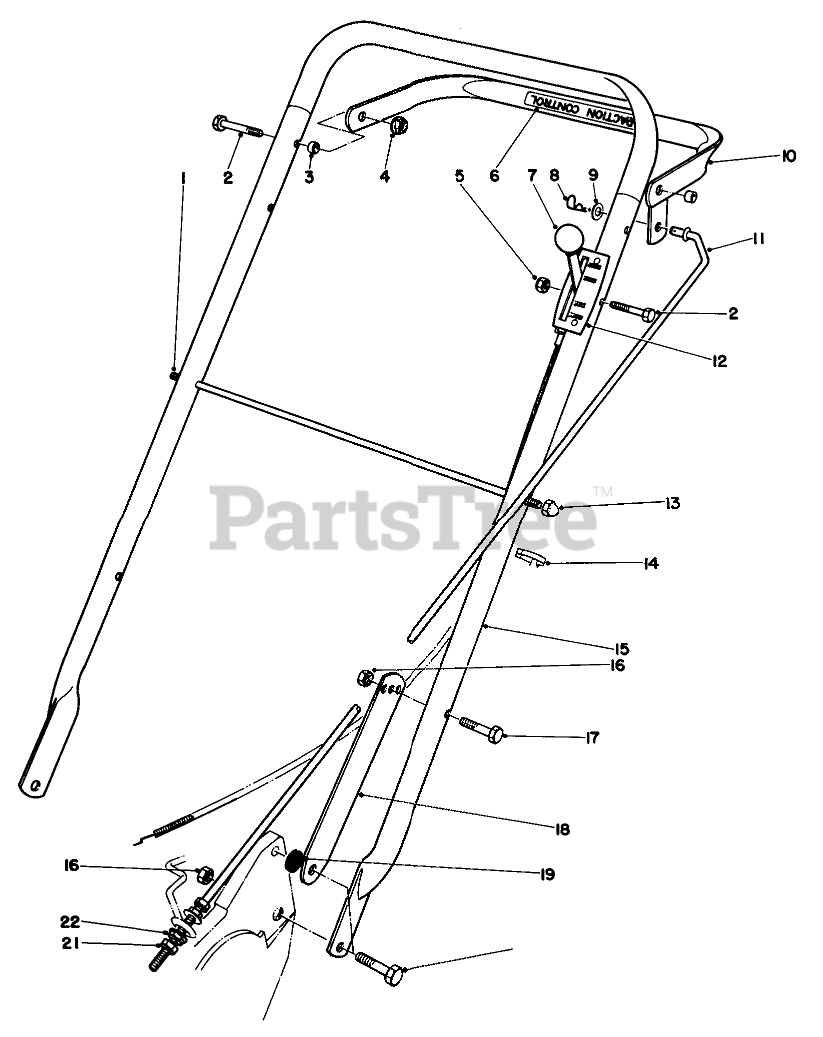

HANDLE ASSEMBLY (MODEL 22020) Parts Diagram

  • Title

1

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

2

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 48-2740

STANDOFF LIFT BAIL

$

$

Not available

4

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

6

Toro 48-2750

TRACTION DECAL

$

$

Not available

7

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

8

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 48-2470

CONTROL BAIL ASM

$168.99

$

Usually ships in 3-6 days

0

11

Toro 48-2720

CONTROL ROD

$

$

Not available

12

Toro 48-2780

Control-Throttle (Incl. Ref. #7)
(Superseded to 53-7830)

$

$

Not available

13

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

14

Toro 218-466

CLIP

$

$

Not available

15

Toro 48-2610

Handle

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 43-1371

Latch-Handle
(Superseded to 98-7138)

$

$

Not available

19

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

20

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

21

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

22

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0
