22015 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY (MODELS 22015 & 22020) Parts Diagram

Walk-Behind Mower

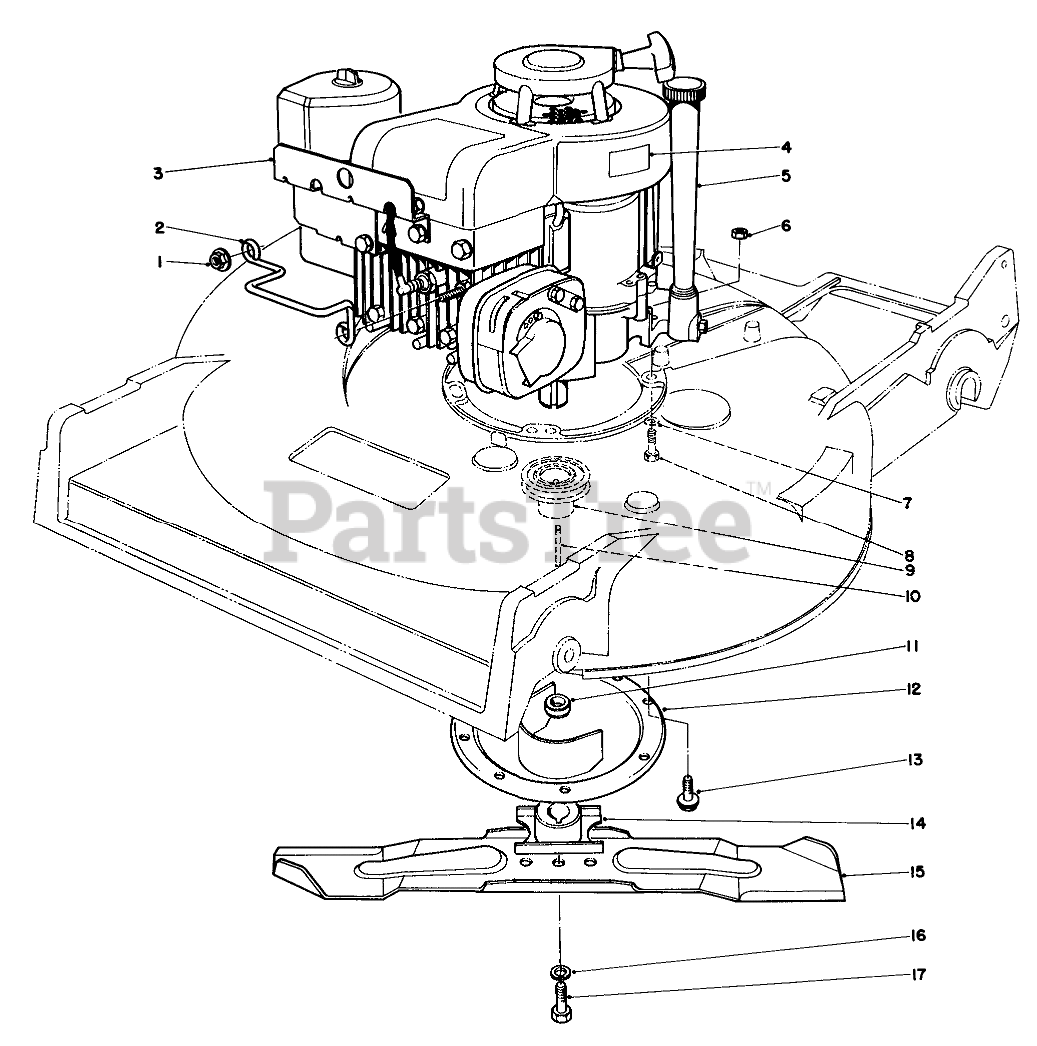

ENGINE ASSEMBLY (MODELS 22015 & 22020) Parts Diagram

  • Title

1

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

2

Toro 48-2190

Protector-Spark Plug

$

$

Not available

3

Toro 48-2940

ENGINE GD BRKT

$

$

Not available

4

Toro 48-2900

Decal-Oil Caution

$

$

Not available

5

Toro 221-751

Engine

$

$

Currently unavailable

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

9

Toro 48-2180

PULLEY DRIVER

$

$

Not available

10

Toro 5-0930

KEY

$

$

Not available

Toro 13-2840

KEY-SQUARE

Note: Not illustrated

$1.99

$

In Stock, Qty 5

0

11

Toro 48-2710

BLADE RETAINER SPACER

$

$

Not available

12

Toro 48-2590

Crankshaft Protector Assy.
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

13

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

14

Toro 48-2700

BLADE RETAINER W A

$

$

Not available

15

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

17

Toro 23-0080

BLADE SCREW

$

$

Not available
