22010 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

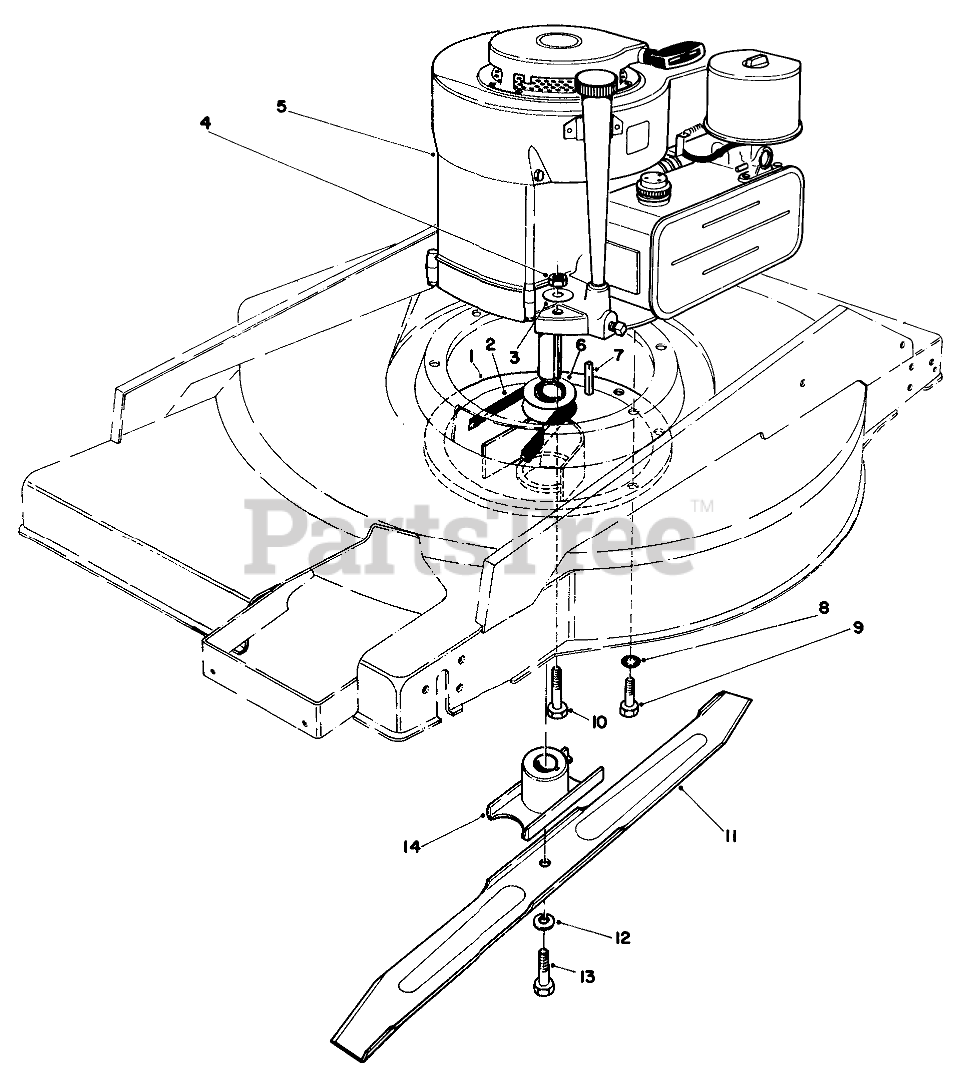

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 48-2590

Crankshaft Protector Assy.
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

2

Toro 49-9100

V-Belt

$

$

Not available

3

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

4

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

5

Toro 221-722

Engine

$

$

Currently unavailable

6

Toro 48-2180

PULLEY DRIVER

$

$

Not available

7

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

8

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

9

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

13

Toro 3-5246

SPECIAL SCREW

$

$

Not available

14

Toro 48-2700

BLADE RETAINER W A

$

$

Not available
