22005 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) REMOTE FUEL TANK KIT NO. 39-6880 (OPTIONAL) Parts Diagram

Walk-Behind Mower

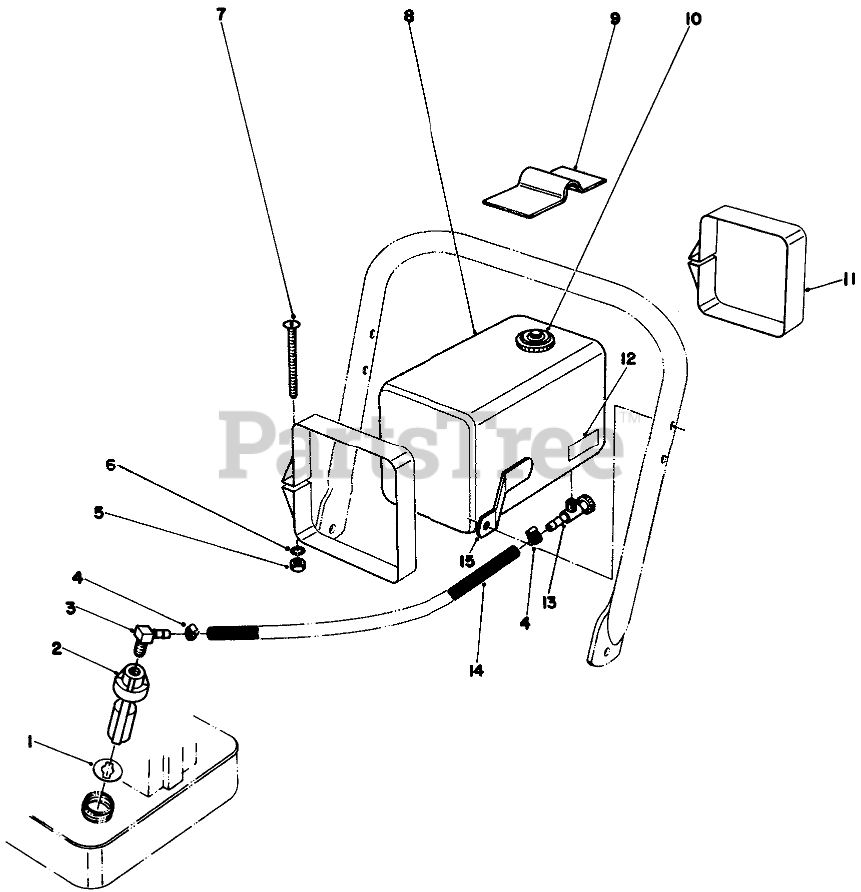

REMOTE FUEL TANK KIT NO. 39-6880 (OPTIONAL) Parts Diagram

  • Title
1

Toro 28-4850

GASKET

$

$

Not available

2

Toro 28-4840

Fuel Control Valve (Incl. Ref. #1)

$

$

Not available

3

Toro 304-75

CONNECTOR-HOSE

$9.99

$

Usually ships in 3-6 days

0

4

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

6

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3250-21

Screw
(Superseded to 3274-56)

$6.99

$

Usually ships in 3-6 days

0

8

Toro 222-14

Fuel Tank (Incl. Ref. #10)
(Superseded to 52-2331)

$408.99

$

Usually ships in 3-6 days

0

9

Toro 39-6960

TANK BRKT

$

$

Not available

10

$

$

Not available

11

Toro 39-0570

TANK STRAP WA

$122.99

$

Usually ships in 3-6 days

0

12

Toro 28-6910

Decal-Caution

$

$

Not available

13

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

14

Toro 39-6930

FUEL LINE

$

$

Not available

15

Toro 39-5940

Brace-Tank

$

$

Not available
