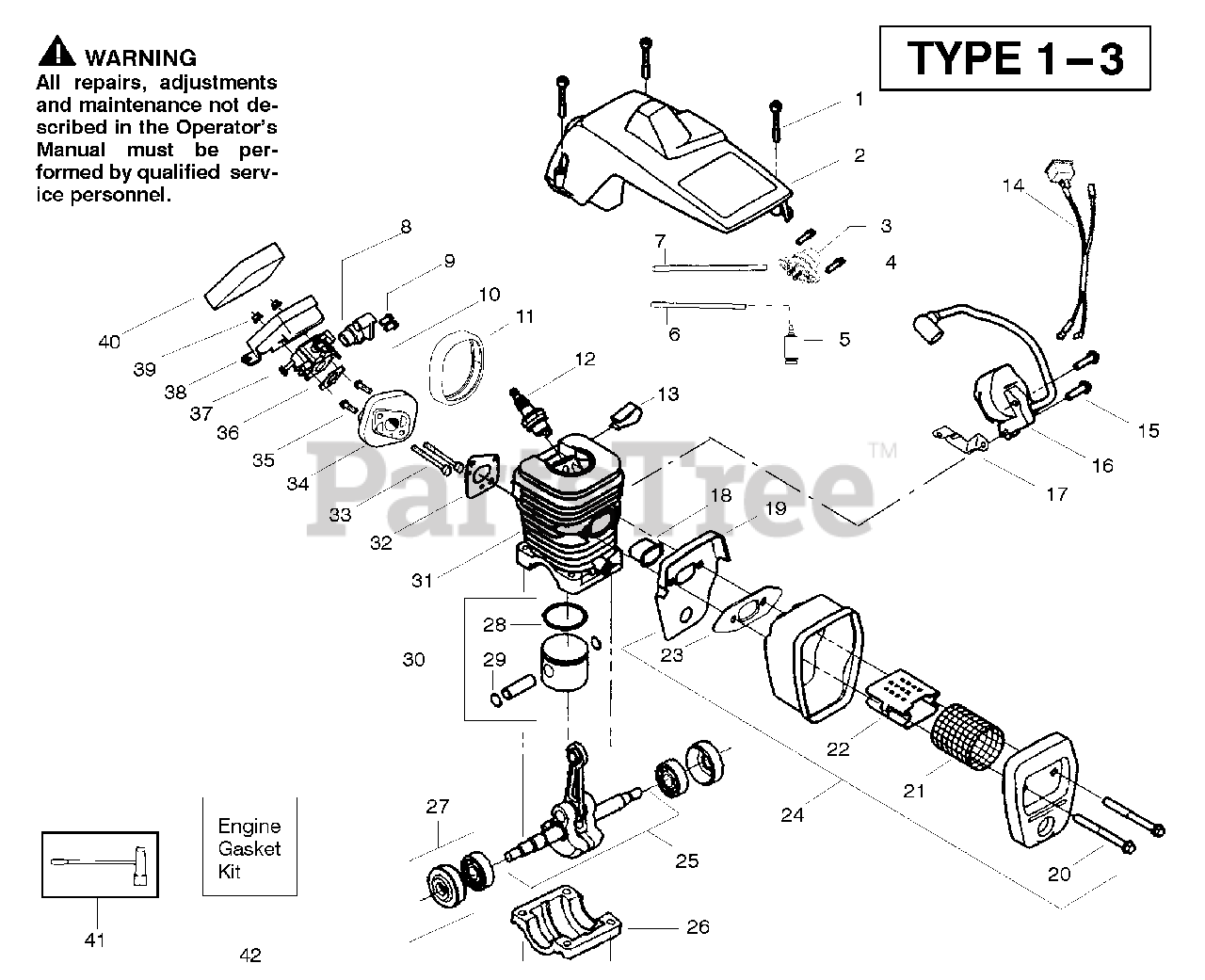

220 - Poulan Chainsaw, Type 3 (2006-09) Engine - Type 1-3 Parts Diagram

Chainsaw, Type 3

Engine - Type 1-3 Parts Diagram

  • Title

1

Electrolux/AYP 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Electrolux/AYP 530053183

Cylinder Shield
(Superseded to 530071310)

$

$

Not available

3

Electrolux/AYP 530047213

Air Purge Ass’y.
(Superseded to 530071835)

$11.99

$

In Stock, Qty 9

0

4

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 530095646

Fuel Pick-up Ass’y.

$6.99

$

In Stock, Qty 19

0

6

Electrolux/AYP 530069247

Kit-Line Purge/Carb. (Small Dia)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Line Purge/Tank (large line)

$11.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530049244

Grommet-Carb Adjust.

$4.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 530038479

Limiter Cap-High

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530038478

Limiter Cap-Low

$3.99

$

In Stock, Qty 19

0

11

Seal-Carb Adapter

Note: (Refer to Service Reference)

$

$

Not available

12

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530049117

Wire Harness Ass’y.

Note: (includes switch)

$

$

Not available

15

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

16

Electrolux/AYP 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530047442

Ground Strap

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530037652

Heat Insulator

$

$

Not available

19

Electrolux/AYP 530049870

Muffler Back Plate

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

21

Electrolux/AYP 530036103

Spark Screen

$

$

Not available

22

Electrolux/AYP 530037813

Muffler Diffuser

$4.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530019221

Muffler Gasket

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530047207

Muffler Ass’y.
(Superseded to 530071904)

Note: (Incl. 19,20, 21,22,23)

$20.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530047062

Crankshaft Assy.
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530056363

Seal & Bearing Assy.

$18.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 530038729

Piston Ring
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 530015697

Retainer - Piston Pin

$6.49

$

In Stock, Qty 6

0

30

Electrolux/AYP 530069719

Piston Kit

Note: (incl. 28-29)

$

$

Not available

31

Electrolux/AYP 530069720

Cylinder Kit
(Superseded to 530012552)

$43.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530019249

Gasket - Carb. Adapter

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

34

Electrolux/AYP 530069964

Carb. Adapter Kit
(Superseded to 530071310)

Note: (incl. 11,2,36,32)

$

$

Not available

35

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530019239

Carb. Gasket
(Superseded to 530019271)

$6.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 530069722

Carburetor Kit
(Superseded to 530071621)

Note: (incl. 9 & 10)

$

$

Not available

38

Electrolux/AYP 530047604

Air Filter Housing

$

$

Not available

39

Electrolux/AYP 530016101

Nut - Carb. Screw

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530037793

Air Filter - Foam

$4.99

$

In Stock, Qty 6

0

41

Electrolux/AYP 530031135

Scrench
(Superseded to 530031163)

$9.99

$

In Stock, Qty 12

0

42

Electrolux/AYP 530069608

Engine Gasket Kit

Note: (incl. 36,32,23)

$8.99

$

In Stock, Qty 10

0

42

Electrolux/AYP 530088313

Operator Manual
(Superseded to 530163654)

Note: Not Shown

$

$

Not available

42

Electrolux/AYP 530038257

Instruction Decal

Note: Not Shown

$

$

Not available
