220 AC - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS UPPER 2012-2015 Parts Diagram

Automower Robotic Lawn Mower

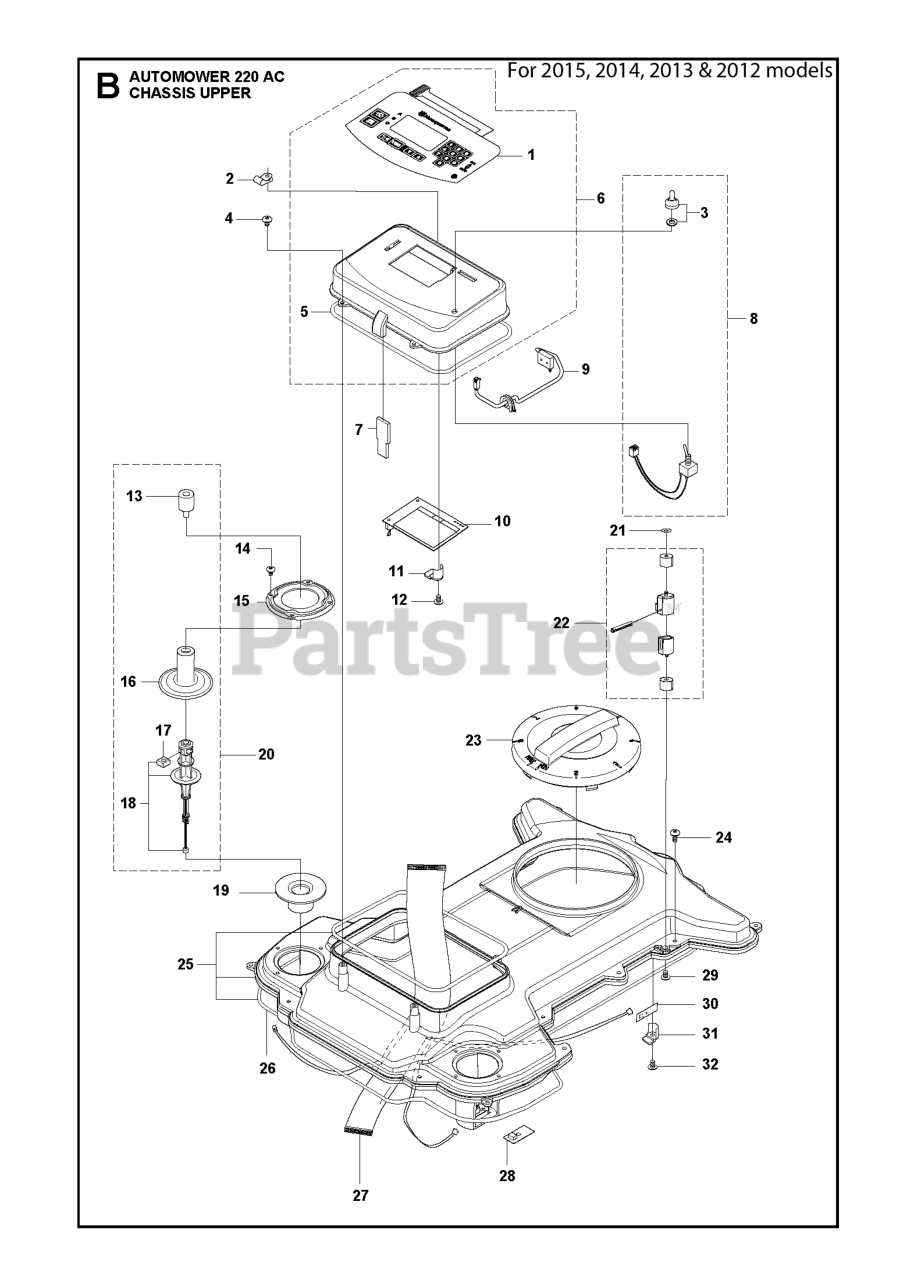

CHASSIS UPPER 2012-2015 Parts Diagram

  • Title

12

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

4

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

26

Husqvarna 574874701

SEALING STRIP G2-2 CHASSIS
(Superseded to 575986201)

Note: Ø4mm

$20.99

$

Usually ships in 3-10 days

0

21

Husqvarna 510747000

LOCKWASHER

$

$

Not available

6

Husqvarna 575944201

SWITCH KIT

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577592301

SWITCH KIT

$39.99

$

Usually ships in 3-10 days

0

24

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 535143201

MOVEMENT LIMITER

$11.99

$

Usually ships in 3-10 days

0

29

Husqvarna 535076002

SCREW

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 577525801

RUBBER GAITERS

$

$

Not available

17

Husqvarna 503226601

NUT

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 544141501

LIFT SENSOR COMP

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 578789003

PRINTED CIRCUIT ASSY

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 577670601

DAMPER RUBBER

$

$

Not available

27

Husqvarna 544126901

MAIN RIBBON HARNESS

$37.99

$

Usually ships in 3-10 days

0

1

Husqvarna 544900101

KEYPAD

$

$

Not available

3

Husqvarna 535101701

RUBBER HOOD ON/OFF SWITCH

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577527201

CABLE CLAMP

$

$

Not available

11

Husqvarna 535127901

BRACKET

$

$

Not available

7

Husqvarna 535144701

FILTER

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 535123901

BRAKER

$31.99

$

Usually ships in 3-10 days

0

32

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

20

Husqvarna 577598403

COLUMN REAR COLLISION COLUMN

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540060301

DISPLAY

$91.99

$

Usually ships in 3-10 days

0

18

Husqvarna 501122602

JOYSTICK KIT REAR

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 535122201

STEERING WHEEL

$

$

Not available

30

Husqvarna 578789003

PRINTED CIRCUIT ASSY

$13.99

$

Usually ships in 3-10 days

0

31

Husqvarna 535127901

BRACKET

$

$

Not available

25

Husqvarna 575943801

CHASSIS UPPER

$

$

Not available

15

Husqvarna 505174301

RING FASTENER

$

$

Not available

5

Husqvarna 574874702

SEALING STRIP G2-2 DISPLAY CO
(Superseded to 575986301)

Note: Ø4mm

$

$

Not available
