220 AC - Husqvarna Automower Robotic Lawn Mower (2015-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

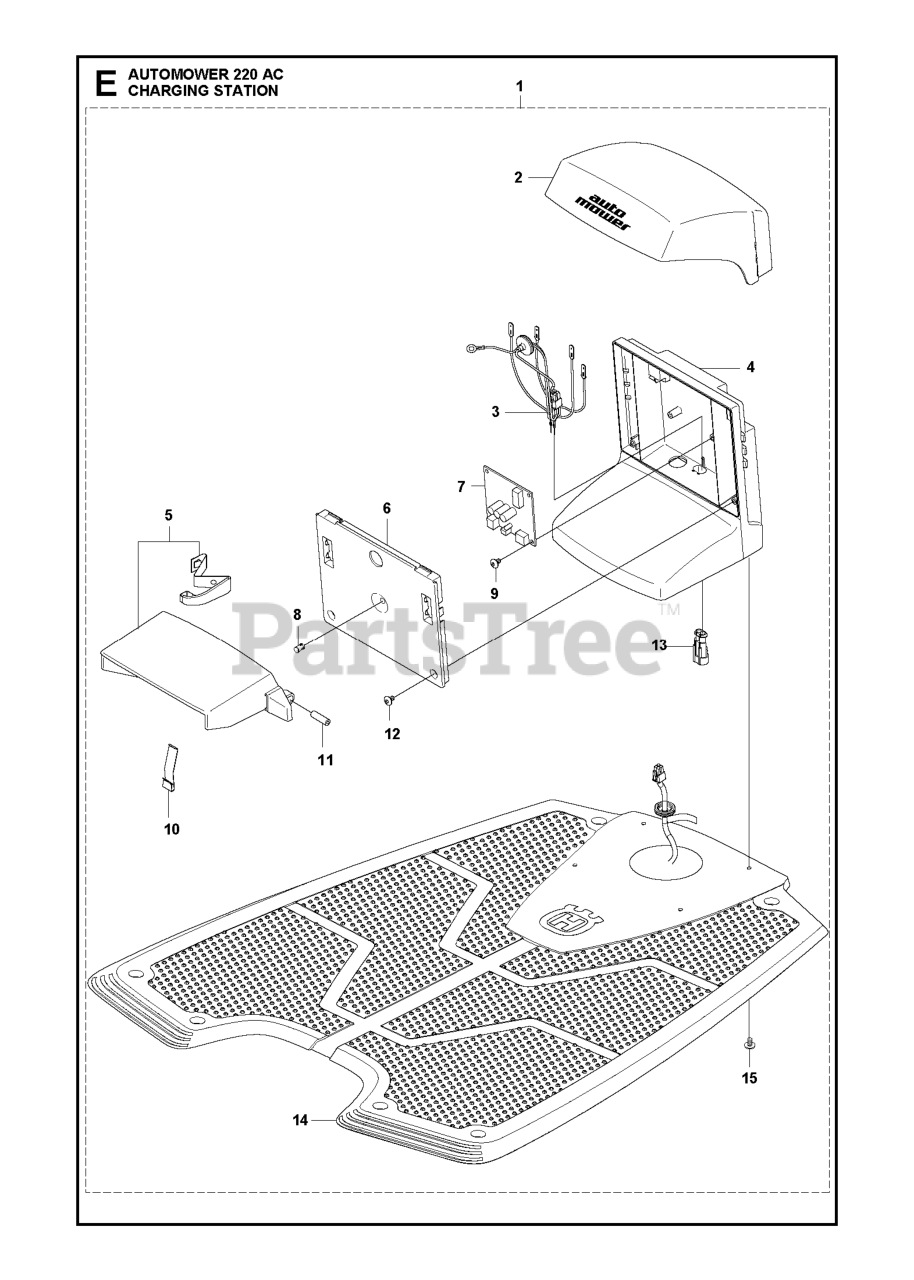

CHARGING STATION Parts Diagram

  • Title

9

Husqvarna 575543310

SCREW SILVER 10MM

$3.49

$

In Stock, Qty 9

0

2

Husqvarna 535124702

CS / TOWER COVER

$

$

Not available

1

Husqvarna 574902001

CHARGING STATION

$

$

Not available

10

Husqvarna 535128601

SPRING

$

$

Not available

7

Husqvarna 584822001

CIRCUIT BOARD ASSY PCBA GEN BO
(Superseded to 584822002)

Note: CH

$

$

Not available

7

Husqvarna 592909601

PRINTED CIRCUIT ASSY PCBA GEN

$148.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544983806

WIRING ASSY LOOM

$

$

Not available

1

Husqvarna 574902004

Note: CH

$

$

Currently unavailable

14

Husqvarna 590094001

BASE ASSY CHARGING STATION

$148.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 535128501

SLEEVE

$

$

Not available

15

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

5

Husqvarna 510059704

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 574827501

BODY CHARGING TOWER

$

$

Not available

6

Husqvarna 535124401

COVER

$

$

Not available

11

Husqvarna 535125001

PIN

$

$

Not available

8

Husqvarna 535128702

LENS
(Superseded to 590217201)

$5.99

$

Usually ships in 3-10 days

0
