220 AC - Husqvarna Automower Robotic Lawn Mower (2008-05) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

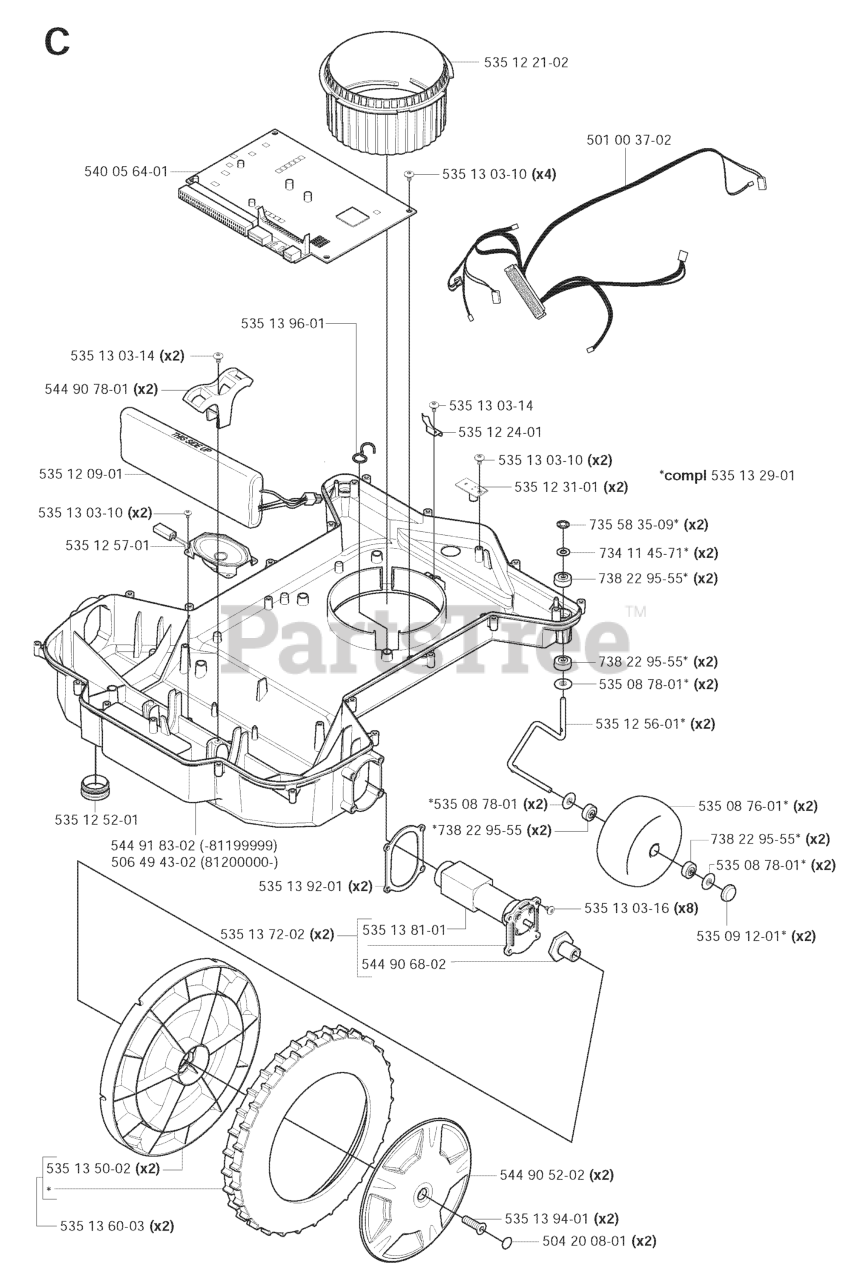

CHASSIS LOWER Parts Diagram

  • Title

535 12 21-02

Husqvarna 535122102

CUTTING HEIGHT NUT

$

$

Not available

504 20 08-01

Husqvarna 504200801

COVER WASHER

$4.99

$

Usually ships in 3-10 days

0

535 13 03-16

Husqvarna 535130316

RP SCREW
(Superseded to 575543316)

$

$

Not available

735 58 35-09

Husqvarna 735583509

WASHER

$

$

Not available

535 08 78-01

Husqvarna 535087801

WASHER, SEALING

$

$

Not available

544 91 83-02

Husqvarna 544918302

CHASSIS 220AC

$

$

Not available

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 13 96-01

Husqvarna 535139601

HOLDER

$

$

Not available

544 90 52-02

Husqvarna 544905202

HUB CAP

$

$

Not available

535 12 09-01

Husqvarna 535120901

BATTERY
(Superseded to 535120902)

$170.99

$

Usually ships in 3-10 days

0

535 13 81-01

Husqvarna 535138101

RP MOTOR, EXCL, GEARBOX
(Superseded to 535137202)

$284.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 12 56-01

Husqvarna 535125601

BRACKET

$

$

Not available

535 08 76-01

Husqvarna 535087601

RP WHEEL, FRONT
(Superseded to 575231701)

$

$

Not available

738 22 95-55

Husqvarna 738229555

BEARING

$9.49

$

Usually ships in 3-10 days

0

535 12 31-01

Husqvarna 535123101

RP PRINTED CIRCUIT CARD
(Superseded to 592852201)

$20.99

$

Usually ships in 3-10 days

0

535 13 29-01

Husqvarna 535132901

WHEEL

$

$

Not available

535 13 92-01

Husqvarna 535139201

GASKET

$17.99

$

Usually ships in 3-10 days

0

535 13 50-02

Husqvarna 535135002

WHEEL LOGO ADDED

$

$

Not available

544 90 68-02

Husqvarna 544906802

HUB

$

$

Not available

535 13 72-02

Husqvarna 535137202

WHEEL MOTOR W/GEARBOX

$284.99

$

Usually ships in 3-10 days

0

734 11 45-71

Husqvarna 734114571

Washer 0 5.3

$

$

Not available

535 12 57-01

Husqvarna 535125701

LOUD SPEAKER

$

$

Not available

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 13 60-03

Husqvarna 535136003

GEAR WHEEL

$31.99

$

Usually ships in 3-10 days

0

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

501 00 37-02

Husqvarna 501003702

MAIN WIRING

$

$

Not available

544 90 78-01

Husqvarna 544907801

BRACKET

$

$

Not available

535 13 94-01

Husqvarna 535139401

SCREW

$

$

Not available

540 05 64-01

Husqvarna 540056401

RP PRINTED CIRCUIT ASSY
(Superseded to 592852001)

$398.99

$

Usually ships in 3-10 days

0

535 09 12-01

Husqvarna 535091201

RETAINER, AXLE CAP

$

$

Not available

535 12 24-01

Husqvarna 535122401

SPRING

$

$

Not available

535 12 52-01

Husqvarna 535125201

PLUG

$

$

Not available

506 49 43-02

Husqvarna 506494302

$

$

Currently unavailable
