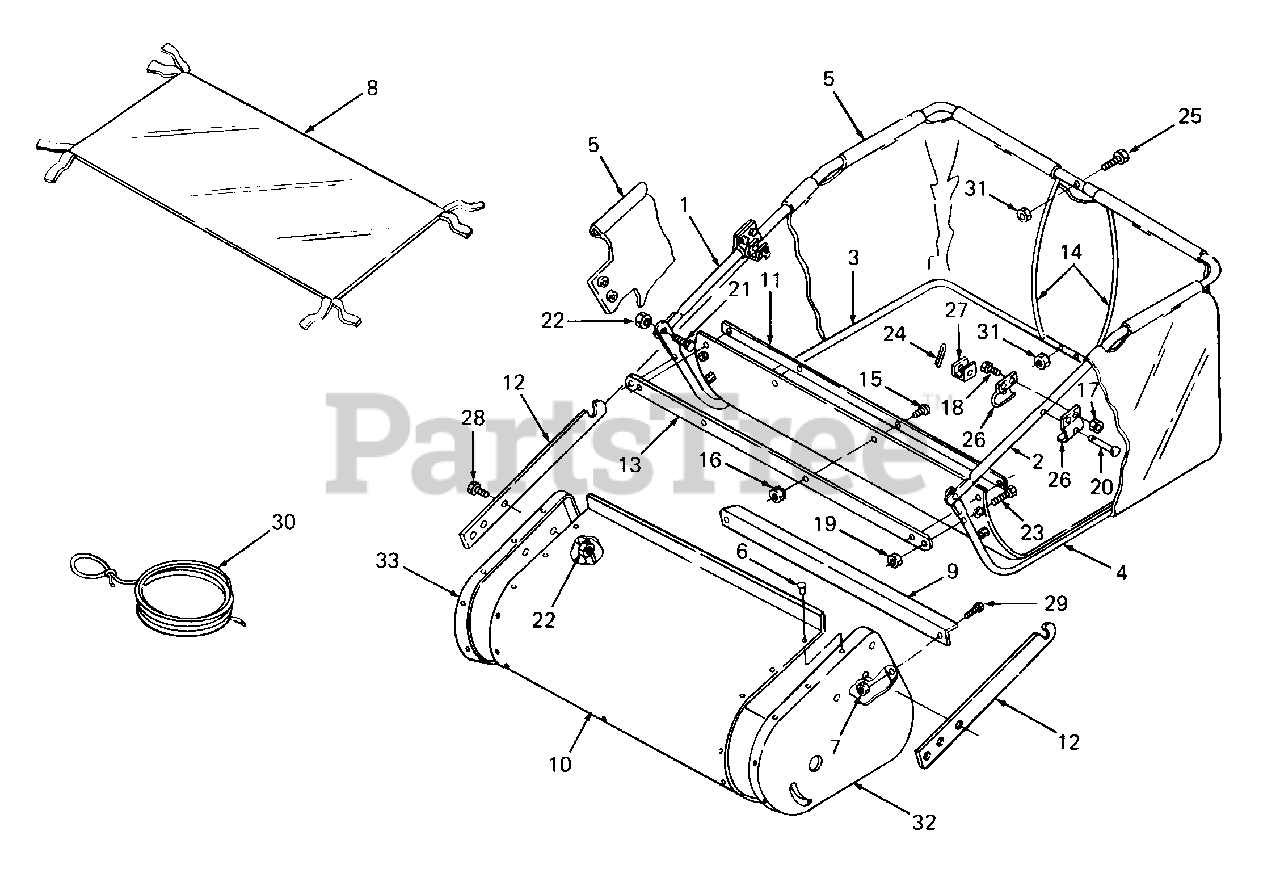

220 (190-220-100) - Cub Cadet 32" Lawn Sweeper Bag & Hopper Parts Diagram

32" Lawn Sweeper

Bag & Hopper Parts Diagram

  • Title
1

Cub Cadet AF-43928

Tube, Upper Hopper RH

$

$

Not available

2

Cub Cadet AF-43927

Tube, Upper Hopper LH

$

$

Not available

3

Cub Cadet AF-43930

Tube, Lower Hopper RH

$

$

Not available

4

Cub Cadet AF-43929

Tube, Lower Hopper LH

$

$

Not available

5

Cub Cadet AF-43650

Bag, Hopper

$

$

Not available

6

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0107

Nut, Hex Lock, 1/4-20 Thd
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet AF-43686

Screen, Wind, 32"

$

$

Not available

9

Cub Cadet AF-23853

Brace, Rear Support

$

$

Not available

10

$

$

Not available

11

Cub Cadet AF-23345

Retainer, Skirt

$

$

Currently unavailable

12

Cub Cadet AF-23812

Arm, Bag Mount

$

$

Not available

13

Cub Cadet AF-23351

Strap, Bag Frame

$

$

Currently unavailable

14

Cub Cadet AF-43926

Rod, Hopper Support

$27.99

$

In Stock, only 2 left!

0

15

Cub Cadet AF-43346

Screw, Truss Hd, Slotted #10-32 X 5/8 Lg

$2.99

$

Usually ships in 3-6 days

0

16

Cub Cadet AF-43662

Nut, Hex Lock, #10-32 Thd

$

$

Not available

17

Cub Cadet 712-0158

Nut, Hex Lock, 5/16-18 Thd
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

18

Cub Cadet 710-3008

Bolt, Hex, 5/16-18 X 3/4 Lg

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0107

Nut, Hex Lock, 1/4-20 Thd
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet AF-43513

Pin, Clevis, 3/8 Dia X 3

$

$

Not available

21

Cub Cadet 710-3000

Bolt, Hex, 3/8-16 X 3/4 Lg
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

22

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16 Thd

$4.49

$

In Stock, Qty 6

0

23

Cub Cadet 710-0106

Bolt, Hex, 1/4-20 X 1.25 Lg

$3.99

$

In Stock, Qty 12

0

24

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X 3/4 Lg

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet AF-43978

Bolt, Curved Head, 1/4-20 X

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet AF-23331

Clamp, Hopper Mount

$

$

Not available

27

Cub Cadet AF-23354

Clevis, Bag Retainer

$

$

Not available

28

Cub Cadet 710-3000

Bolt, Hex, 3/8-16 X.75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

29

Cub Cadet 710-3013

Bolt, Hex, 1/4-20 X 1/2 GR5

$4.99

$

In Stock, Qty 11

0

30

Cub Cadet AF-43737

Rope, Hopper

$

$

Not available

31

Cub Cadet 712-0107

Nut, Hex Lock, 1/4-20 Thd
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

32

Cub Cadet AF-23845

Plate, End LH

$

$

Not available

33

Cub Cadet AF-23846

Plate, End RH

$

$

Not available
