220 (1690354) - Simplicity Snowbuster 20" Snow Thrower, 2.7hp Engine & Drive Group (Later Models) Parts Diagram

Snowbuster 20" Snow Thrower, 2.7hp

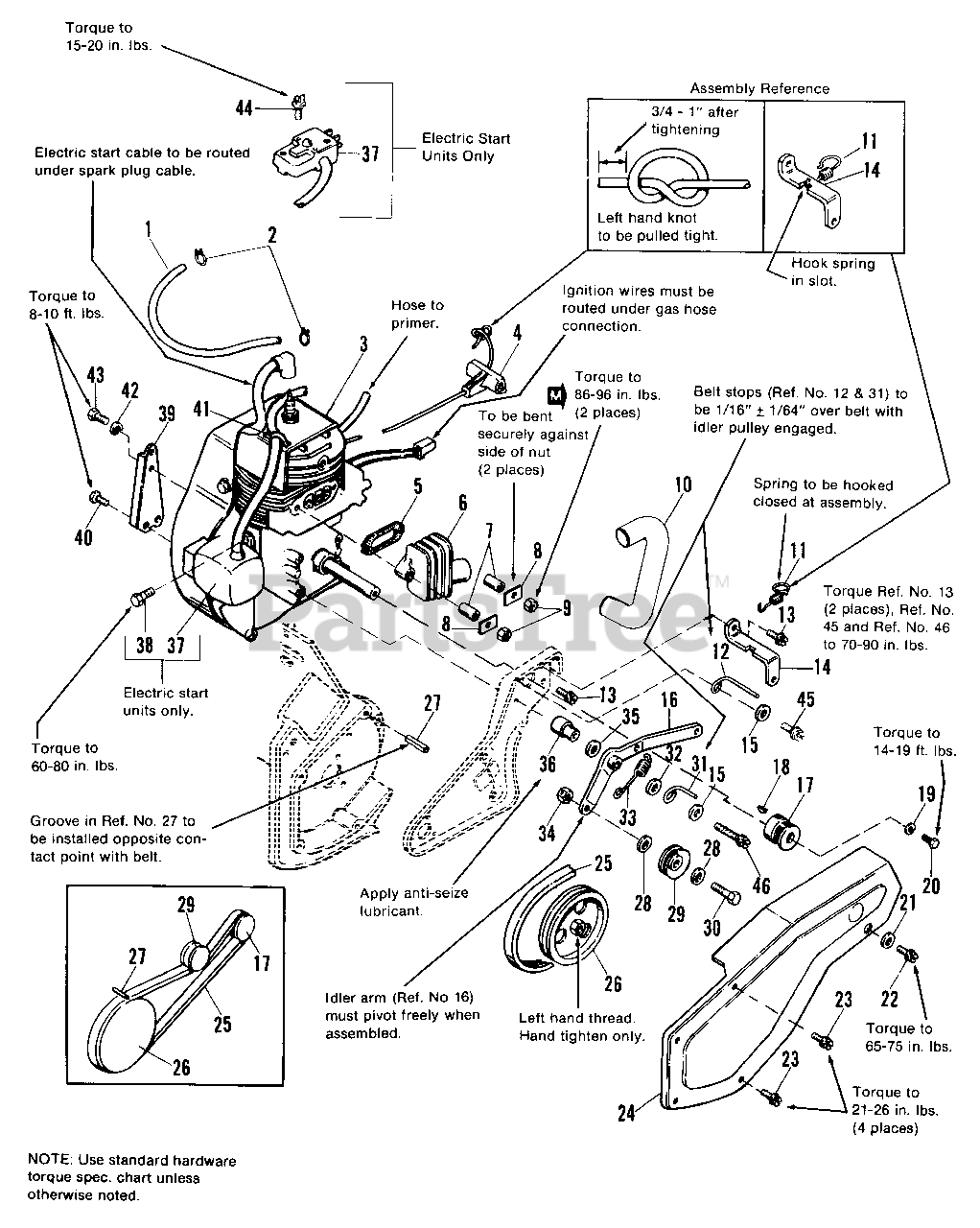

Engine & Drive Group (Later Models) Parts Diagram

  • Title

1

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

2

Simplicity 2154372

CLAMP, Hose

$

$

Not available

3

ENGINE

$

$

Not available

4

HANDLE, Pull

$

$

Not available

5

GASKET, Manifold

$

$

Not available

6

Simplicity 1663425

MANIFOLD, Exhaust

$

$

Not available

7

Simplicity 1664857SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1666394

KEEPER, Nut

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

10

Simplicity 1666710

PIPE, Exhaust

$

$

Not available

11

Simplicity 1664988

SPRING, Extension

$

$

Not available

12

Simplicity 1663440

STOP, Belt

$

$

Not available

13

Simplicity 2834665SM

SCREW, Hex, Whizlock, 5/16-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1664906

BRACKET, Cover

$

$

Not available

15

Simplicity 2819326

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 1664791

ARM ASSY., Idler

$

$

Not available

17

Simplicity 1685439SM

PULLEY, Drive

$

$

Not available

18

Simplicity 2810224SM

KEY, Woodruff, 5/32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 2821515

CAPSCREW, Hex Hd., 5/16-24 x 3/4

$

$

Not available

21

Simplicity 933897

WASHER, Belleville

$

$

Not available

22

Simplicity 1960001SM

SCREW, Wash. Hd., Hex, Slotted, #10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 1960001SM

SCREW, Wash. Hd., Hex, Slotted, #10-14 x 1/4
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

24

Simplicity 1665932

COVER, Belt

$

$

Not available

25

Simplicity 1663885SM

BELT, Drive

$24.99

$

In Stock, only 1 left!

0

26

Simplicity 1664033SM

PULLEY, Driven

$

$

Not available

27

Simplicity 1664726SM

GUIDE, Belt

$

$

Not available

28

Simplicity 2824940

WASHER, Plain, 3/8

$

$

Not available

29

Simplicity 2118414SM

PULLEY, Idler

$26.99

$

Usually ships in 2-12 days

0

30

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1664477

STOP, Belt

$

$

Not available

32

Simplicity 2819381

WASHER, Plain, 5/16

$

$

Not available

33

Simplicity 1664469

SPRING, Tension

$

$

Not available

34

Simplicity 2828731

LOCKNUT, Hex, Center, 3/8-16

$

$

Not available

35

Simplicity 2153072

WASHER

$

$

Not available

36

Simplicity 1667795

STUD

$

$

Not available

37

KIT, Electric Start

$

$

Not available

38

Simplicity 2831646

CAPSCREW, Hex Hd., 1/4-20 x 1/2 (Used on E.S. only)

$

$

Not available

39

Simplicity 1665935

BRACKET, Engine

$

$

Not available

40

Simplicity 2825003

SCREW, Hex, Taptite, 1/4-20 x 1/2

$

$

Not available

41

Simplicity 2834683SM

CLIP, Tinnerman (Used on E.S. only)
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

43

Simplicity 929486

CAPSCREW, Hex Hd., 1-1/4-20 x 3/8

$

$

Not available

44

Simplicity 1665695

SCREW, Round Hd., #8 x 3/4 (Used on E.S. only)

$

$

Not available

45

Simplicity 1930591SM

SCREW, Hex, Whizlock, 5/16-18 x 2-1/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

46

Simplicity 2835159

SCREW, Hex, Whizlock, 5/16-18 x 3/4

$

$

Not available
