22 T - Shindaiwa String Trimmer Starter Parts Diagram

String Trimmer

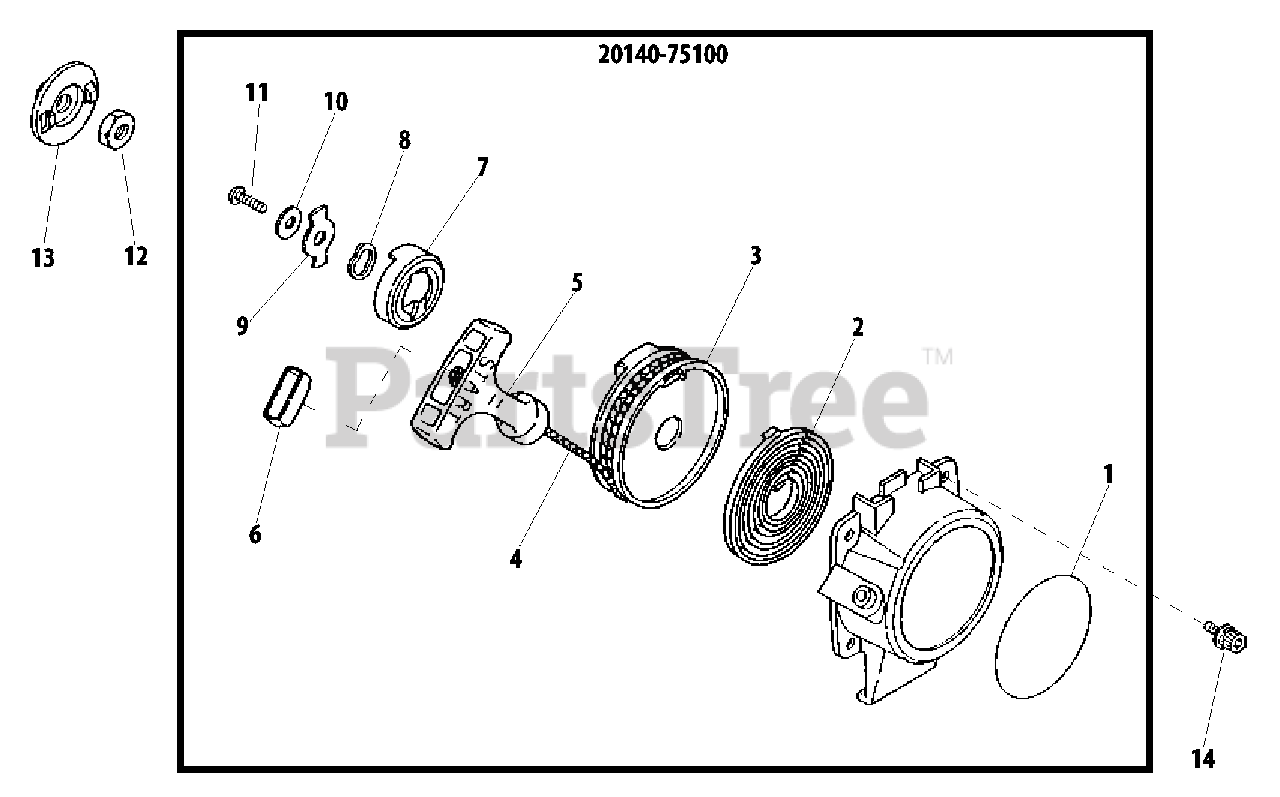

Starter Parts Diagram

  • Title

20140-75100

Echo 20140-75100

STARTER ASSY
(Superseded to P021035261)

$36.99

$

In Stock, only 3 left!

0

1

Echo 67000-91031

NAME PLATE
(Superseded to X504001350)

$0.99

$

In Stock, Qty 9

0

2

Echo 20140-75130

SPRING
(Superseded to A504000110)

$7.99

$

Usually ships in 2-4 days

0

3

Echo 20140-75120

REEL, ROPE

$4.99

$

Usually ships in 2-4 days

0

4

Echo 70064-75190

ROPE, STARTER
(Superseded to A509000320)

$3.49

$

In Stock, Qty 8

0

5

Echo 70064-75211

GRIP, STARTER
(Superseded to A511000150)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 70064-75220

RETAINER, ROPE
(Superseded to A522000020)

$1.99

$

In Stock, only 3 left!

0

7

Echo 20140-75140

RATCHET
(Superseded to C533000060)

$3.49

$

In Stock, Qty 7

0

8

Echo 20140-75150

WASHER - WAVE
(Superseded to V450000840)

$0.99

$

Usually ships in 2-4 days

0

9

Echo 20140-75170

RETAINER
(Superseded to A503000040)

$1.99

$

In Stock, only 2 left!

0

10

Echo 20140-75180

WASHER
(Superseded to V392000000)

$1.99

$

In Stock, only 4 left!

0

11

Echo 20140-75160

SCREW

$1.99

$

In Stock, only 3 left!

0

12

Echo 01511-08051

NUT - 8
(Superseded to 90050300008)

$0.99

$

In Stock, Qty 20+

0

13

Echo 20140-75310

REEL, ROPE
(Superseded to A520000120)

$2.99

$

In Stock, only 4 left!

0

14

Echo 11024-04120

SCREW - 4X12
(Superseded to V202000180)

$0.99

$

In Stock, Qty 20+

0
