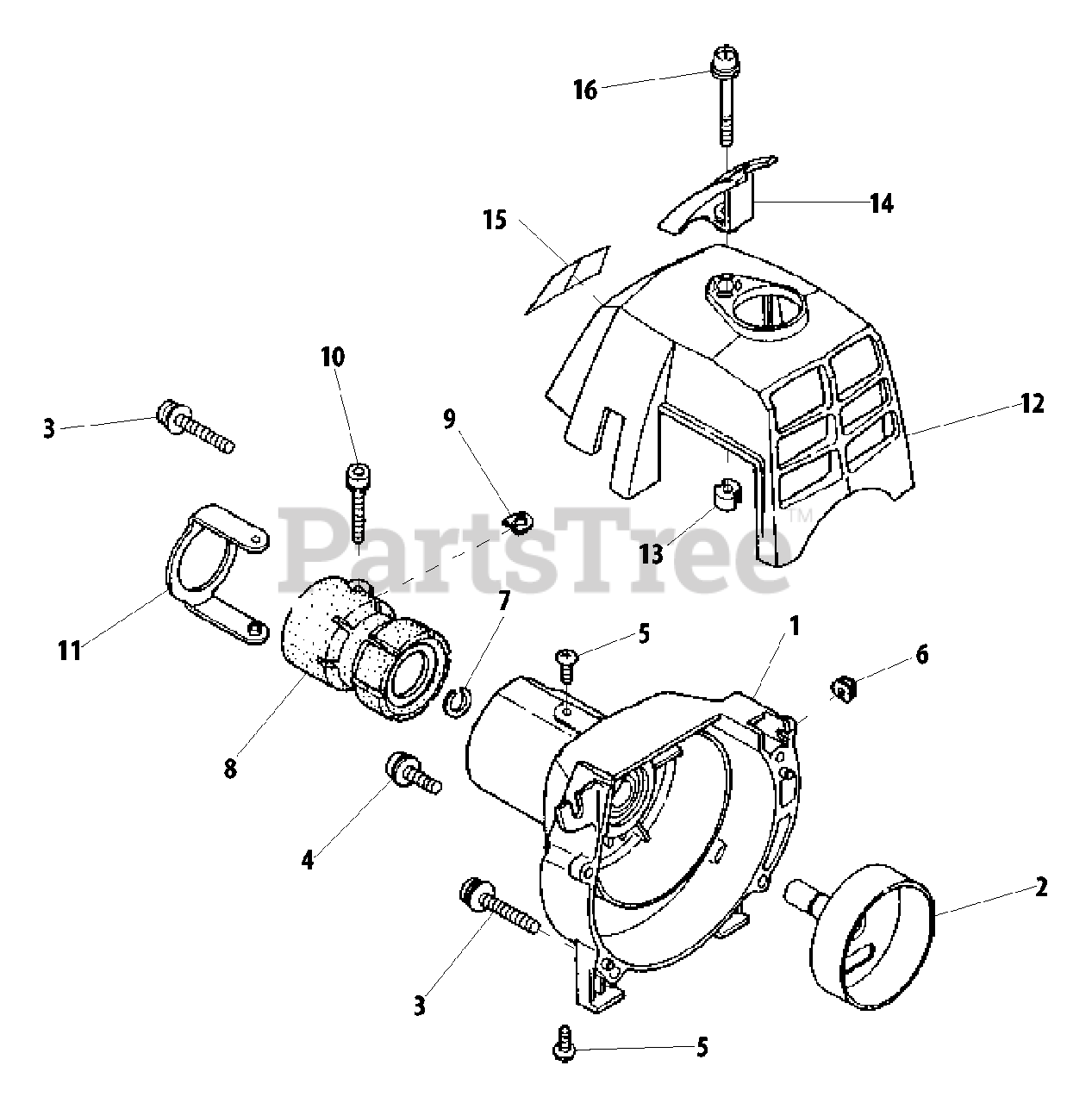

22 T - Shindaiwa String Trimmer Fan Cover Parts Diagram

String Trimmer

Fan Cover Parts Diagram

  • Title

1

Echo 20142-31111

COVER, FAN
(Superseded to A172000990)

$37.99

$

Usually ships in 2-4 days

0

2

Echo 20016-31212

DRUM, CLUTCH
(Superseded to A556000650)

$16.99

$

In Stock, Qty 5

0

3

Echo 11206-05300

SCREW - 5X30
(Superseded to 9157405030)

$0.99

$

In Stock, Qty 5

0

4

Echo 11206-05160

SCREW - 5X16
(Superseded to 9157405016)

$0.99

$

In Stock, Qty 10

0

5

Echo 11260-04081

SCREW - 4X8
(Superseded to V252000100)

$0.99

$

Usually ships in 2-4 days

0

6

Echo 20011-72120

GROMMET
(Superseded to V136000060)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 12

0

8

Echo 20087-31410

CLAMP, MAIN PIPE
(Superseded to A575000190)

$16.99

$

In Stock, only 1 left!

0

9

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

10

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 20142-31420

BRACKET
(Superseded to C617000400)

$5.99

$

In Stock, only 1 left!

0

12

Echo 20140-32110

COVER, ENGINE
(Superseded to 20140-32111)

$11.99

$

Usually ships in 2-4 days

0

13

Echo 20140-31260

INSULATOR
(Superseded to V354000240)

$0.99

$

In Stock, Qty 8

0

14

Echo 20140-34110

PROTECTOR
(Superseded to 20140-34111)

$1.99

$

In Stock, Qty 5

0

15

Echo 67000-91021

LABEL - MODEL
(Superseded to X504001340)

$1.49

$

In Stock, Qty 11

0

16

Echo 20140-31250

SCREW
(Superseded to V254000030)

$0.99

$

In Stock, Qty 6

0
