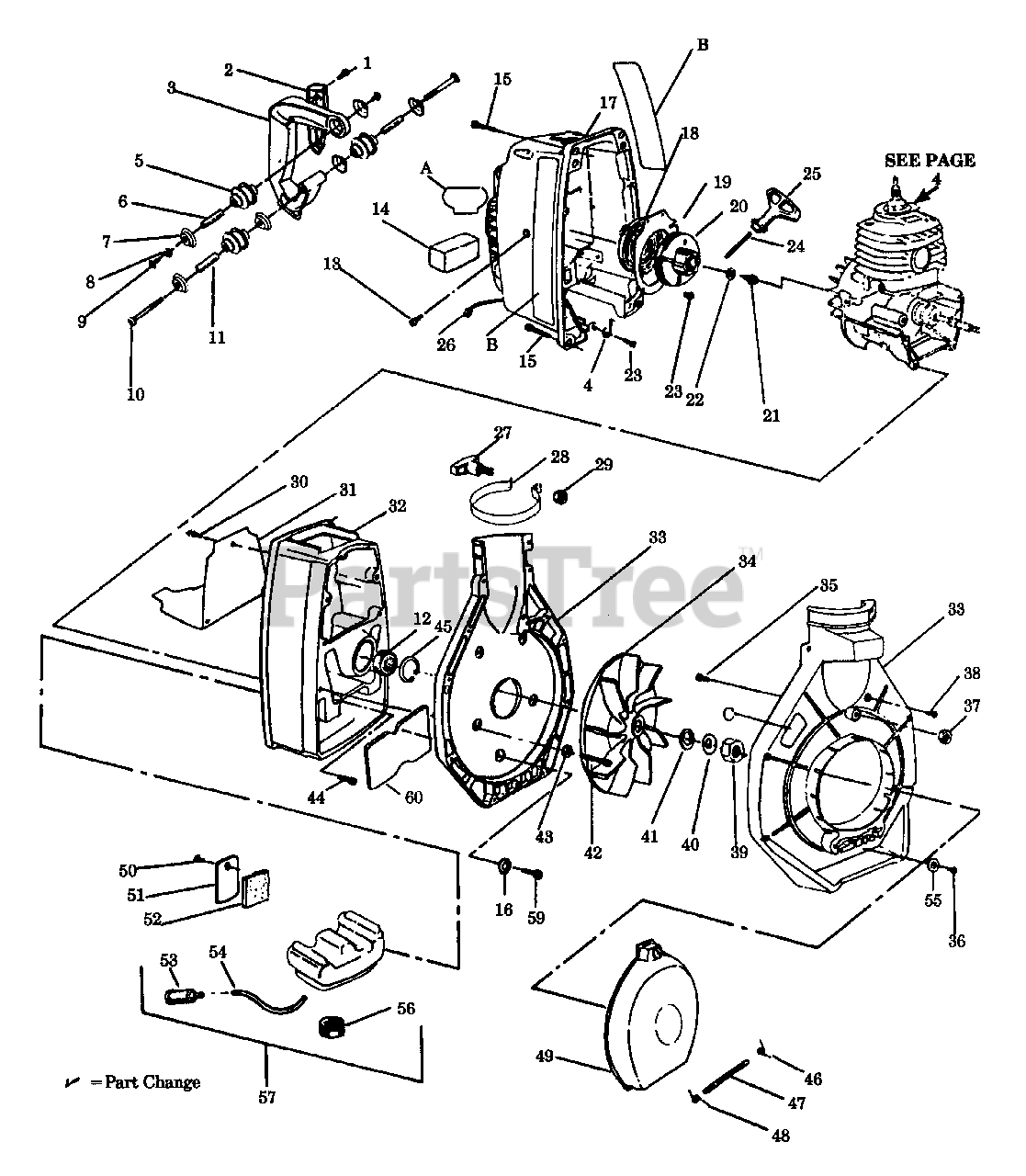

22 HB - Husqvarna Handheld Blower (1988-01) Housing/Impeller Parts Diagram

Handheld Blower

Housing/Impeller Parts Diagram

  • Title

1

Husqvarna 530015635

Screw

$5.99

$

In Stock, only 4 left!

0

2

Husqvarna 530094212

Handle Cover

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530010827

Handle Ass'y.

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530027157

Static Ground Wire

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530026994

Handle Isolator

$

$

Not available

6

Husqvarna 530015343

Isolator Spacer (Front)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530026163

Isolator Cup

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530015629

Washer

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530015628

Screw

$0.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530015561

Screw

$

$

Not available

11

Husqvarna 530015342

Isolator Spacer (Rear)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530032091

Ball Bearing (Shroud)

$

$

Not available

13

Husqvarna 530015700

Screw

$

$

Not available

14

Husqvarna 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530015687

Screw

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

17

Husqvarna 530029081

Fan Housing

$

$

Not available

18

Husqvarna 530042023

Starter Pulley Spring
(Superseded to 545008007)

$

$

Not available

19

Husqvarna 530026780

Air Baffle

$2.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530069200

Pulley Replacement Kit
(Superseded to 530069288)

$

$

Not available

21

Husqvarna 530015479

Screw

$

$

Not available

22

Husqvarna 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

23

Husqvarna 530015544

Screw

$0.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

25

Husqvarna 530026735

Starter Rope Handle
(Superseded to 530027569)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 530027175

Ground Wire

$

$

Not available

27

Husqvarna 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

28

Husqvarna 530094222

Blower Tube Clamp
(Superseded to 530095592)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 530015197

Nut

$6.49

$

In Stock, only 4 left!

0

30

Husqvarna 530015636

Screw

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530026776

Heat Deflector

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530010824

Shroud

Note: (Incl. #12 & 45)

$

$

Not available

33

Husqvarna 530069269

Blower Hsg. Kit

Note: (Incl. #36, 46-49, 55, & Vac. Tubes)

$

$

Not available

34

Husqvarna 530094215

Impeller

$

$

Not available

35

Husqvarna 530015661

Screw

$0.99

$

Usually ships in 3-10 days

0

36

Husqvarna 530015495

Screw
(Superseded to 534222402)

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 530001543

Nut

$

$

Not available

38

Husqvarna 530015367

Screw
(Superseded to 530015872)

$6.49

$

In Stock, Qty 16

0

39

Husqvarna 530015644

Nut

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 530015441

Washer

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 530015626

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 530015632

Screw

$0.99

$

Usually ships in 3-10 days

0

43

Husqvarna 530015682

Washer
(Superseded to 530015149)

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 530015168

Screw

$

$

Not available

45

Husqvarna 530001516

Shroud Bearing Retainer

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 530015667

Spring-Tension (Right)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 530015647

Pivot Pin

$1.49

$

In Stock, only 1 left!

0

48

Husqvarna 530015672

Spring-Tension (Left)

$

$

Not available

49

Husqvarna 530094241

Inlet Door Ass'y.

$7.99

$

Usually ships in 3-10 days

0

50

Husqvarna 530015638

Screw

$0.99

$

Usually ships in 3-10 days

0

51

Husqvarna 530015637

Fuel Tank Retainer

$1.99

$

Usually ships in 3-10 days

0

52

Husqvarna 530026781

Fuel Tank Cushion

$1.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530010897

Fuel Pick-Up Ass'y
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

54

Husqvarna 530069247

Line Kit

$7.99

$

In Stock, Qty 20+

0

55

Husqvarna 530015382

Washer

$

$

Not available

56

Husqvarna 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

Note: (Incl. 0-Ring)

$9.49

$

In Stock, Qty 15

0

57

Husqvarna 530010815

Fuel Tank Ass'y.

Note: (Incl. #53, 54 & 56)

$

$

Not available

59

Husqvarna 530015683

Screw

$0.99

$

Usually ships in 3-10 days

0

60

Husqvarna 530027350

Fuel Tank Shield

$3.99

$

Usually ships in 3-10 days

0

A

Husqvarna 530029034

Instruction Decal

$

$

Not available

B

Husqvarna 530029031

Fan Housing Decal (Left & Right) - Model 22HB

$

$

Currently unavailable

B

Husqvarna 530029032

Fan Housing Decal (Left & Right) - Model 28HBV

$

$

Currently unavailable

C

Husqvarna 530027334

Blower/Vac Warning Decal

$

$

Not available
