22 HB - Husqvarna Handheld Blower (1988-01) Engine Parts Diagram

Handheld Blower

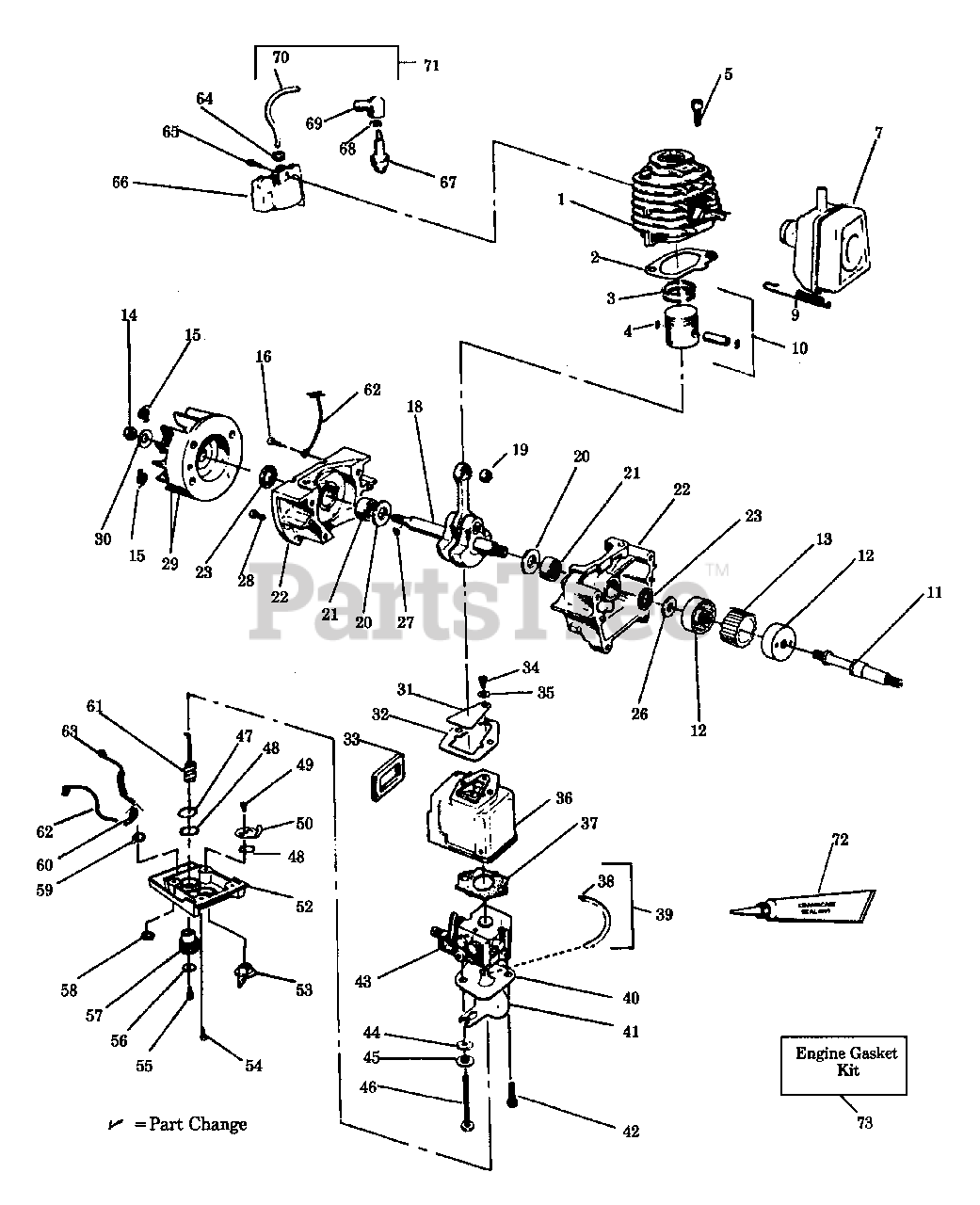

Engine Parts Diagram

  • Title

1

Husqvarna 530012168

Cylinder - Model 22HB
(Superseded to 530012349)

$

$

Not available

1

Husqvarna 530012192

Cylinder - Model 28HBV
(Superseded to 530012252)

$24.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530019111

Cylinder Gasket
(Superseded to 530069219)

$

$

Not available

3

Husqvarna 530026413

Piston Ring - Model 22HB

$

$

Not available

3

Husqvarna 530026681

Piston Ring - Model 28HBV

$

$

Not available

4

Husqvarna 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Husqvarna 530069245

Muffler Ass'y.

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530024903

Muffler Attachment Spring
(Superseded to 530036409)

$

$

Not available

10

Husqvarna 530010753

Piston Kit - Model 22HB

Note: (Incl. #3, 4 & Pin)

$

$

Not available

10

Husqvarna 530069203

Piston Kit - Model 28HBV

Note: (Incl. #3, 4 & Pin)

$

$

Not available

11

Husqvarna 530069242

Shaft Kit

$

$

Not available

12

Husqvarna 530012145

Shaft Coupling

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530094243

Plastic Coupling

$

$

Not available

14

Husqvarna 530626605

Flywheel Nut

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530027273

Crankshaft & Rod Ass'y. - Model 22HB

$84.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530010853

Crankshaft & Rod Ass'y. - Model 28HBV

$84.99

$

Usually ships in 3-10 days

0

19

Husqvarna 530032092

Piston Pin Bearing - Model 28HBV Only

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530015351

Washer

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

22

Husqvarna 530010757

Crankcase Ass'y.

Note: (Incl. #21, 23 & 28)

$

$

Not available

23

Husqvarna 530019059

Crankcase Seal

$

$

Not available

26

Husqvarna 530001717

Coupling Washer

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530015168

Screw

$

$

Not available

29

Husqvarna 530039111

Flywheel Ass'y.
(Superseded to 530047198)

$

$

Not available

30

Husqvarna 530015127

Flywheel Washer

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 530024438

Reed Valve

$

$

Not available

32

Husqvarna 530019108

Carburetor Case to Crankcase Gasket

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530019105

Carburetor Case Seal

$

$

Not available

34

Husqvarna 530015241

Screw
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 530023367

Washer

$

$

Not available

36

Husqvarna 530026818

Carburetor Case

$9.99

$

Usually ships in 3-10 days

0

37

Husqvarna 530019157

Carburetor Gasket

$

$

Not available

38

Husqvarna 530026981

Fuel Line Fitting

$6.49

$

In Stock, Qty 7

0

39

Husqvarna 530010875

Fuel Line & Fitting Ass'y.

$

$

Not available

40

Husqvarna 530026797

Choke Guide Plate

$

$

Not available

41

Husqvarna 530026772

Choke Shutter

$

$

Not available

42

Husqvarna 530015674

Screw

$1.99

$

Usually ships in 3-10 days

0

43

Husqvarna 530035196

Carburetor
(Superseded to 530035183)

$

$

Not available

44

Husqvarna 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

45

Husqvarna 530015673

Spacer

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 530015630

Screw

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 530015654

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 530015147

Wave Washer

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 530015407

Screw

$

$

Not available

50

Husqvarna 530026773

Choke Actuator

$1.99

$

Usually ships in 3-10 days

0

52

Husqvarna 530026764

Carb. Case Cover

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530023807

Choke Knob

$2.49

$

In Stock, only 2 left!

0

54

Husqvarna 530015675

Screw

$3.99

$

In Stock, only 1 left!

0

55

Husqvarna 530015660

Screw

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

57

Husqvarna 530015614

Throttle Knob

$

$

Not available

58

Husqvarna 530023575

Grounding Switch Nut
(Superseded to 530002582)

$

$

Not available

59

Husqvarna 530024569

Washer

$

$

Not available

60

Husqvarna 530069204

Toggle Switch Kit

Note: (Incl. #58 & 59)

$

$

Not available

61

Husqvarna 530026771

Throttle Wire Ass'y.

$

$

Not available

62

Husqvarna 530026951

Ignition Wire

$

$

Not available

63

Husqvarna 530026829

Ground Wire

$

$

Not available

64

Husqvarna 530024435

Plug Wire Grommet

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 530039124

Ignition Module

$

$

Not available

67

Husqvarna 530030058

Spark Plug (RCJ-8)

$3.99

$

In Stock, only 2 left!

0

68

Husqvarna 530003933

Spark Plug Lead Connector
(Superseded to 507475326)

$

$

Not available

69

Husqvarna 530003934

Spark Plug Boot

$

$

Not available

70

Husqvarna 530039082

High Tension Lead Wire

$

$

Not available

71

Husqvarna 530039103

High Tension Lead Ass'y.

Note: (Incl. #68, 69 & 70)

$

$

Not available

72

Husqvarna 530030054

Crankcase Sealant

Note: (Not Supplied With Unit)

$

$

Not available

73

Husqvarna 530069219

Engine Gasket Kit

Note: (Contents include items 2, 23, 32-33, 37)

$

$

Not available
