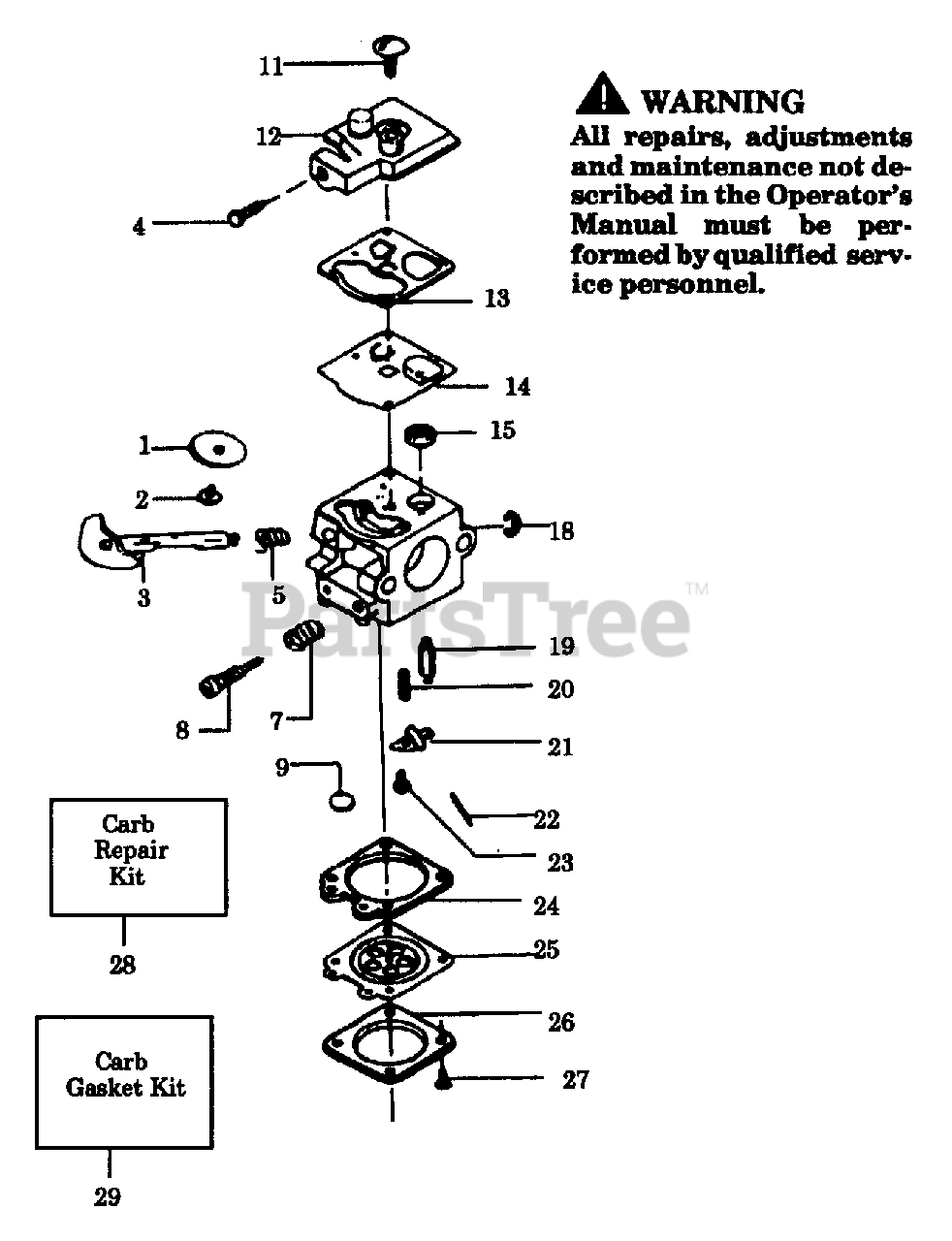

22 HB - Husqvarna Handheld Blower (1988-01) Carburetor Assembly Parts Diagram

Handheld Blower

Carburetor Assembly Parts Diagram

  • Title

1

Husqvarna 530035197

Valve Throttle

$1.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530035015

Screw-Throttle Valve

$

$

Not available

3

Husqvarna 530035132

Shaft Ass'y.-Throttle

$

$

Not available

4

Husqvarna 530035156

Idle Speed Screw

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530035138

Spring-Throttle Return

$

$

Not available

7

Husqvarna 530035200

Spring-High Speed Mixture Needle
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530035198

Needle-High Speed Mixture

$

$

Not available

9

Husqvarna 530035162

Plug-5/16 Dia. Welch

$

$

Not available

11

Husqvarna 530035017

Screw-Pump Cover

$0.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530035191

Cover-Fuel Pump

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530035164

Gasket-Fuel Pump
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

14

Husqvarna 530035166

Diaphragm-Fuel Pump
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

15

Husqvarna 530035178

Screen-Fuel Inlet

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530035007

Ring-Throttle Retainer

$

$

Not available

19

Husqvarna 530035106

Valve-Inlet Needle
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

20

Husqvarna 530035139

Spring-Metering Lever
(Superseded to 530035188)

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 530035031

Lever-Metering
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 530035028

Pin-Metering Lever
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

23

Husqvarna 530035016

Screw-Metering Lever Pin

$7.99

$

In Stock, Qty 6

0

24

Husqvarna 530035151

Gasket-Metering Diaphragm

$3.99

$

In Stock, Qty 8

0

25

Husqvarna 530035014

Diaphragm-Metering
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

26

Husqvarna 530035003

Cover-Metering Diaphragm

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 530035021

Screw Ass'y.-Metering Cover

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530035199

Kit-Carb. Kwik Repair

Note: (Contents include items 13-14, 24-25)

$

$

Not available

29

Husqvarna 530035186

Kit-Carb. Gasket/Diaphragm
(Superseded to 530069844)

Note: (Contents include items 9, 13-14, 19-25)

$20.99

$

In Stock, only 3 left!
