22 F - Shindaiwa String Trimmer Cylinder Parts Diagram

String Trimmer

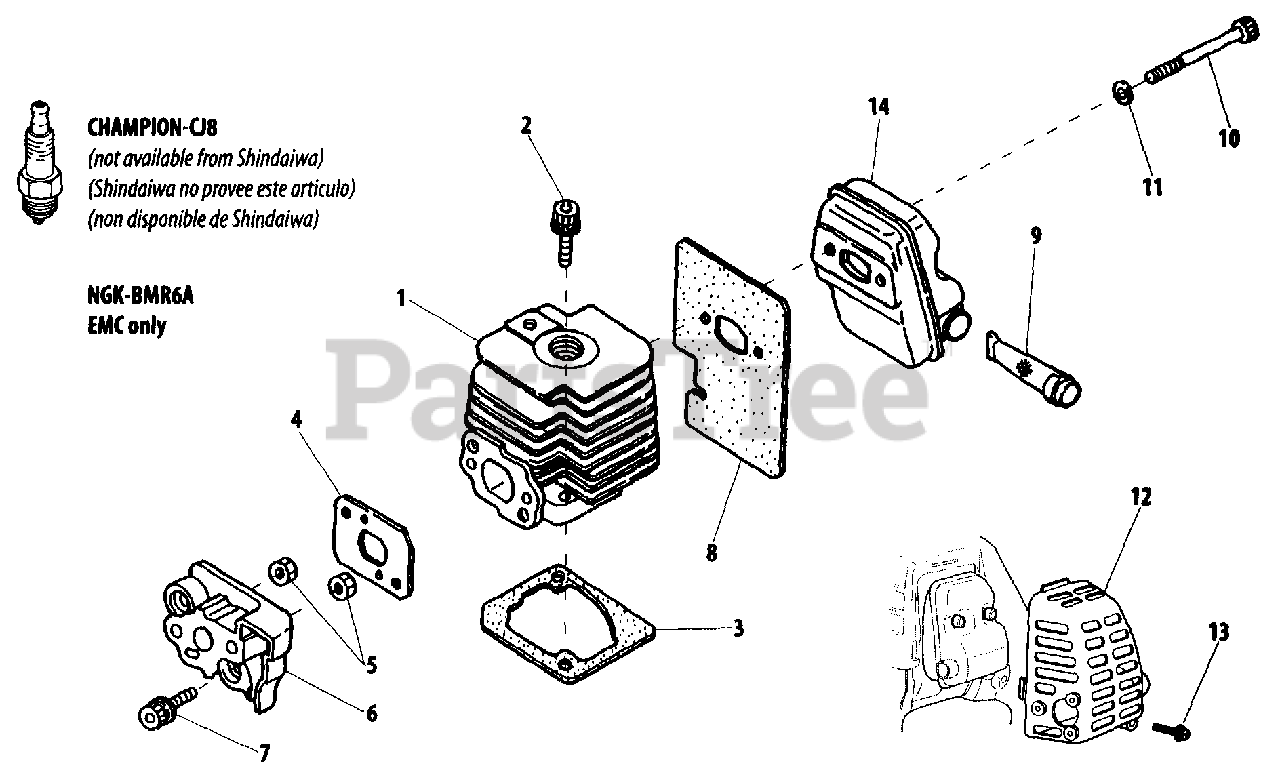

Cylinder Parts Diagram

  • Title

1

Echo 20142-12110

CYLINDER
(Superseded to A130001150)

$40.99

$

In Stock, only 3 left!

0

2

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

3

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 11

0

4

Echo 20140-12220

GASKET
(Superseded to 20140-12221)

$1.99

$

In Stock, Qty 7

0

5

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0

6

Echo 20140-12210

INSULATOR
(Superseded to A200000470)

$7.99

$

Usually ships in 2-4 days

0

7

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 20140-15120

SHIELD, EXHAUST
(Superseded to V104001120)

$3.99

$

In Stock, only 1 left!

0

9

Echo 67000-15340

SCREEN, SPARK ARRESTOR
(Superseded to A310000180)

$10.99

$

In Stock, Qty 6

0

10

Echo 01020-05400

SCREW - 5X40
(Superseded to 90010505040)

$1.49

$

In Stock, Qty 5

0

11

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 20142-32211

COVER, MUFFLER
(Superseded to A320000590)

$7.49

$

Usually ships in 2-4 days

0

13

Echo 22160-32210

SCREW
(Superseded to V253000710)

$0.99

$

In Stock, Qty 9

0

14

Echo 67000-15110

MUFFLER
(Superseded to A300000900)

$20.99

$

Usually ships in 2-4 days

0
