22 DH - Shindaiwa Hedge Trimmer, Dual-Sided Gearcase Parts Diagram

Hedge Trimmer, Dual-Sided

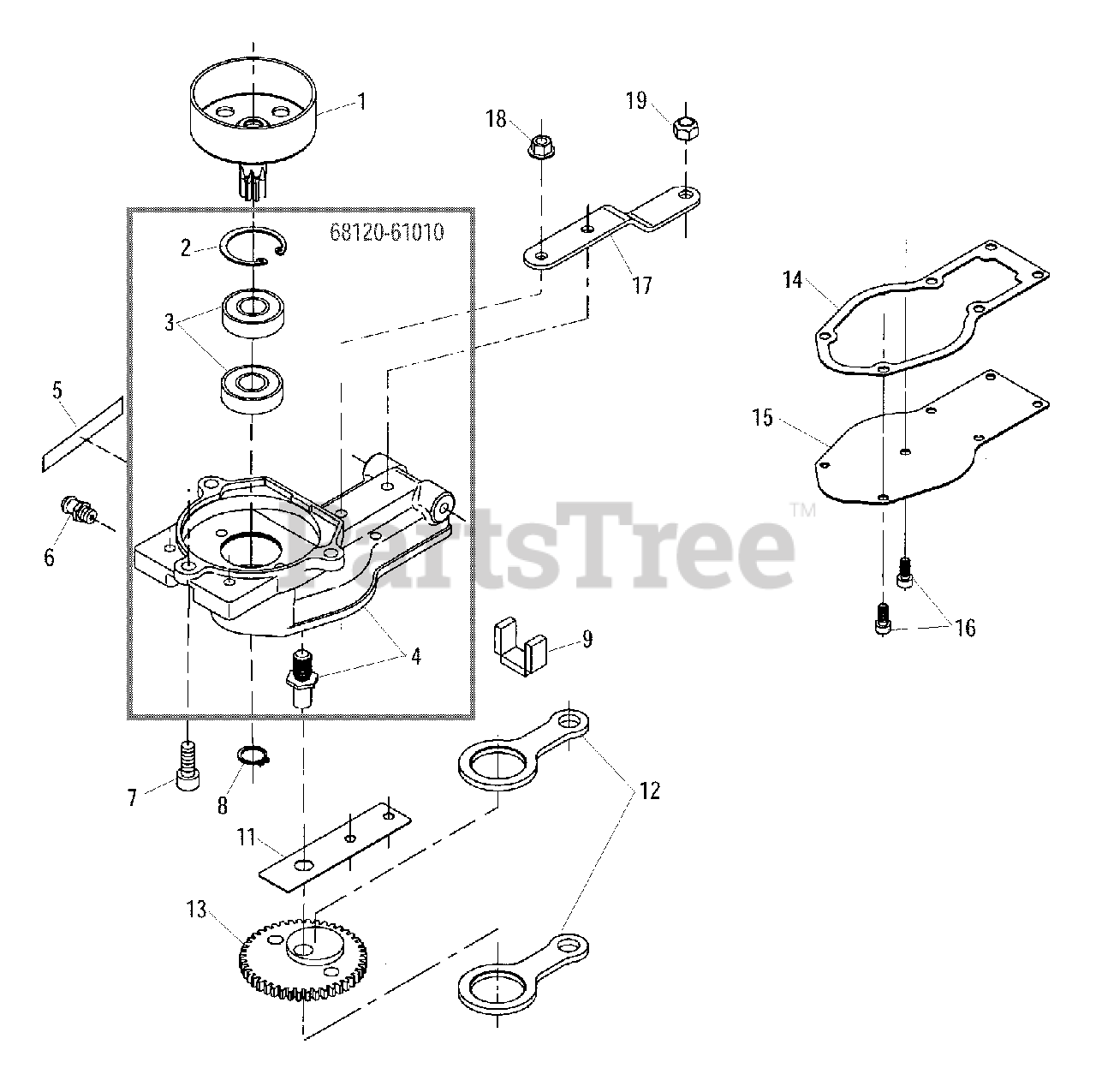

Gearcase Parts Diagram

  • Title

1

Echo 68120-61160

DRUM, CLUTCH
(Superseded to A556000950)

$32.99

$

Usually ships in 2-4 days

0

68120-61010

Echo 68120-61010

GEAR CASE ASSY
(Superseded to P021029260)

$70.99

$

Usually ships in 2-4 days

0

2

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 13

0

3

Echo 02006-06001

BEARING, BALL - 6001DDU
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

4

Echo 68120-61110

CASE, GEAR
(Superseded to P021029270)

$50.99

$

Usually ships in 2-4 days

0

5

Echo 19402-00134

LABEL - LUBRICATION
(Superseded to X505003390)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, Qty 11

0

7

Echo 01020-06160

SCREW - 6X16
(Superseded to 90010506016)

$0.99

$

In Stock, Qty 10

0

8

Echo 02430-12100

RING, RETAINING - 12
(Superseded to 9242312000)

$0.99

$

In Stock, only 3 left!

0

9

Echo 68120-61340

SEAL, FELT
(Superseded to V541000220)

$1.99

$

In Stock, Qty 5

0

11

Echo 68120-61330

PLATE
(Superseded to 68120-61331)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 68120-61170

ROD, CONNECTING
(Superseded to C532000220)

$10.99

$

In Stock, Qty 15

0

13

Echo 68120-61131

CAM GEAR
(Superseded to 68120-61130)

$29.99

$

Usually ships in 2-4 days

0

14

Echo 68120-61350

GASKET
(Superseded to 68120-61351)

$1.99

$

In Stock, Qty 20+

0

15

Echo 68120-61120

PLATE, GEAR CASE
(Superseded to C542000040)

$7.49

$

Usually ships in 2-4 days

0

16

Echo 01020-04100

SCREW - 4X10
(Superseded to 90010504010)

$1.49

$

In Stock, Qty 20+

0

17

Echo 68120-62330

BRACKET, CUTTER
(Superseded to 68120-62331)

$6.99

$

In Stock, only 2 left!

0

18

Echo 11526-05212

NUT - 5 -- FLANGE
(Superseded to V263000330)

$0.99

$

In Stock, Qty 17

0

19

Echo 23510-35230

LOCKNUT
(Superseded to 22011-97840)

$1.49

$

In Stock, Qty 20+

0
