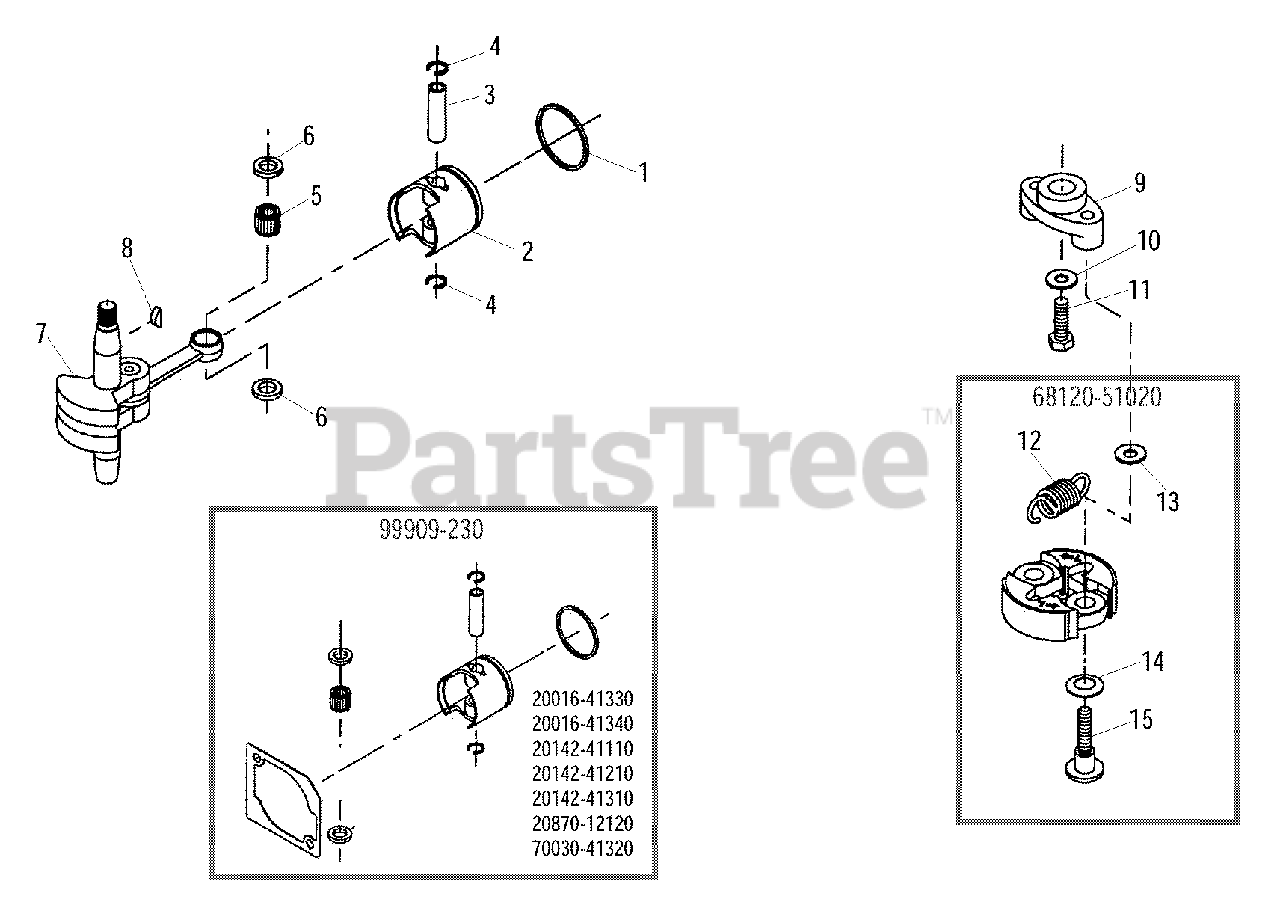

22 DH - Shindaiwa Hedge Trimmer, Dual-Sided Clutch, Piston Parts Diagram

Hedge Trimmer, Dual-Sided

Clutch, Piston Parts Diagram

  • Title

99909-230

Echo 99909-230

PISTON ASSY

$49.99

$

In Stock, only 4 left!

0

1

Echo 20142-41210

RING, PISTON
(Superseded to A101000300)

$6.99

$

In Stock, Qty 7

0

2

Echo 20142-41110

PISTON
(Superseded to 20142-41111)

$32.99

$

In Stock, only 4 left!

0

3

Echo 20142-41310

PIN, PISTON
(Superseded to V606000050)

$1.99

$

In Stock, only 1 left!

0

4

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

5

Echo 20016-41330

BEARING, NEEDLE
(Superseded to 81593)

$7.99

$

In Stock, only 1 left!

0

6

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

20870-12120

Echo 20870-12120

GASKET, CYLINDER
(Superseded to 20870-12121)

Note: See "Cylinder/Muffler", ITEM 2

$1.99

$

In Stock, only 3 left!

0

7

Echo 68120-42010

CRANKSHAFT ASSY
(Superseded to A011000920)

$52.99

$

Usually ships in 2-4 days

0

8

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

9

Echo 20870-51210

HUB, CLUTCH
(Superseded to 20870-51211)

$8.49

$

In Stock, only 1 left!

0

10

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 20870-51220

SCREW - 6X18
(Superseded to V204000480)

$1.99

$

Usually ships in 2-4 days

0

68120-51020

Echo 68120-51020

CLUTCH SHOE ASSY
(Superseded to 67000-51011)

$27.99

$

Usually ships in 2-4 days

0

12

Echo 20035-51221

SPRING, CLUTCH
(Superseded to A566000060)

$1.99

$

In Stock, only 3 left!

0

13

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 20142-51210

BOLT, CLUTCH
(Superseded to A557000060)

$1.99

$

Usually ships in 2-4 days

0
