22-17KE01 (257-H) - Toro Yard Tractor (1988) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Yard Tractor

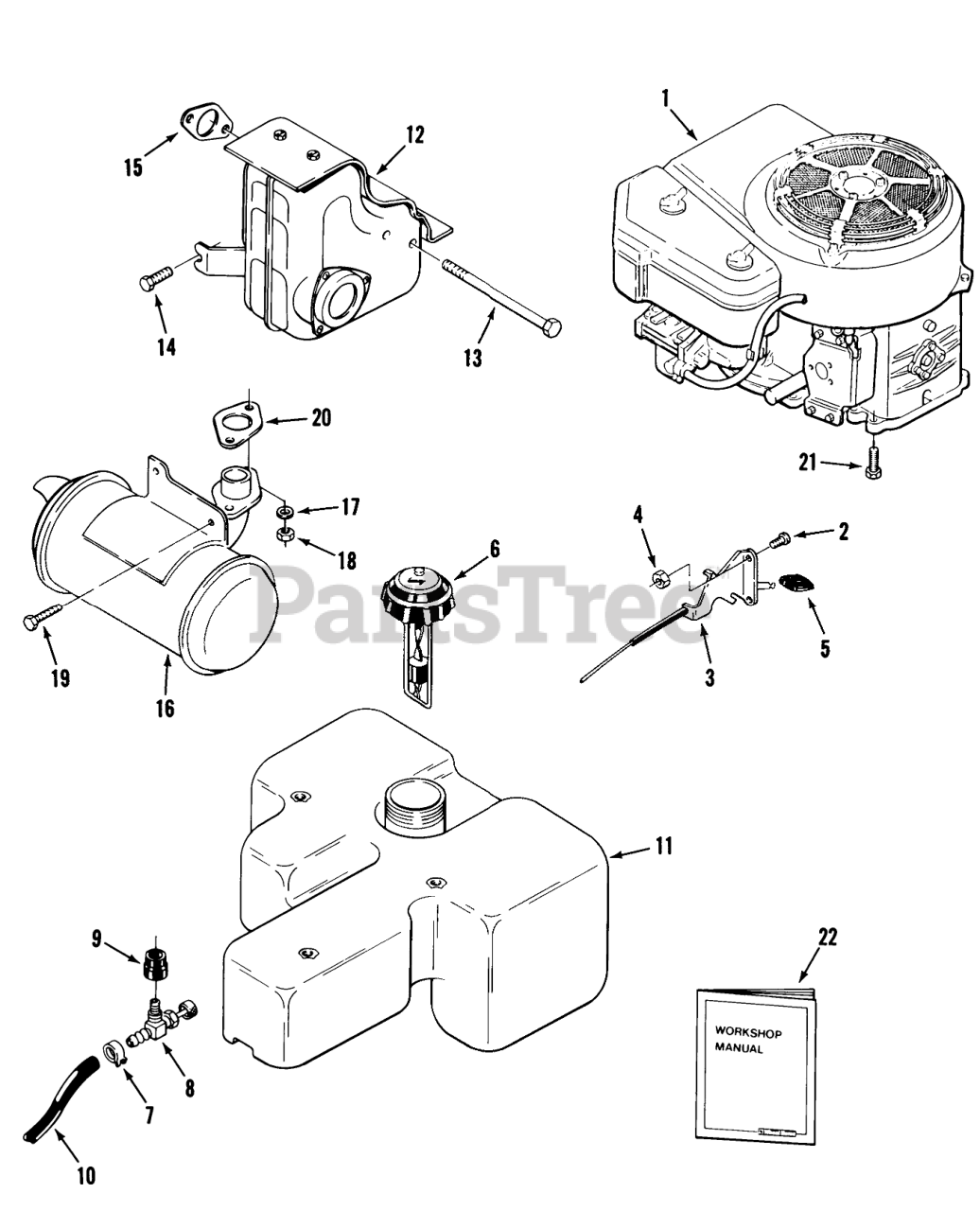

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 114047

Engine-12.5 HP-Kawasaki Model FB460V, Type AS-26 252-H

$

$

Currently unavailable

1

Toro 112711

Engine-17 HP-Kawasaki Model FC540V, Type AS-08 257-H

$

$

Not available

2

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

3

Toro 110684

Choke/Throttle Control
(Superseded to 115789)

$104.99

$

Usually ships in 3-6 days

0

4

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, only 1 left!

0

6

Toro 113867

ASS'Y-GAUGE CAP

$

$

Not available

7

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

8

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

9

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

10

Toro 114572

Fuel Hose 54 in. (137.2 cm)
(Superseded to 110521)

$

$

Not available

11

Toro 114622

Fuel Tank

$

$

Not available

12

Toro KW10255

MUFFLER-FB-460V

$

$

Not available

13

Toro KW10691

BOLT

$

$

Not available

14

Toro KW10033

BOLT-FLANGED

$

$

Not available

15

Toro KW10289

GASKET-L MUFFLER

$

$

Not available

16

Toro 112475

Muffler 257-H
(Superseded to 113494)

$1171.99

$

Usually ships in 3-6 days

0

17

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

18

Toro 112190

Nut M8x1.25 257-H

$

$

Not available

19

Toro 113114

HHCS M8X1.25X15

$

$

Not available

20

Toro KW10250

OBS GASKET-EXH FC-540V

$

$

Not available

21

Toro KW10035

BOLT-FLANGED

$

$

Not available

22

Shop Manual 252-H (Kawasaki #99924-2011)

$

$

Not available

22

Shop Manual 257-H (Kawasaki #99924-2015)

$

$

Not available
