22-17KE01 (257-H) - Toro Yard Tractor (1988) ELECTRICAL SYSTEM Parts Diagram

Yard Tractor

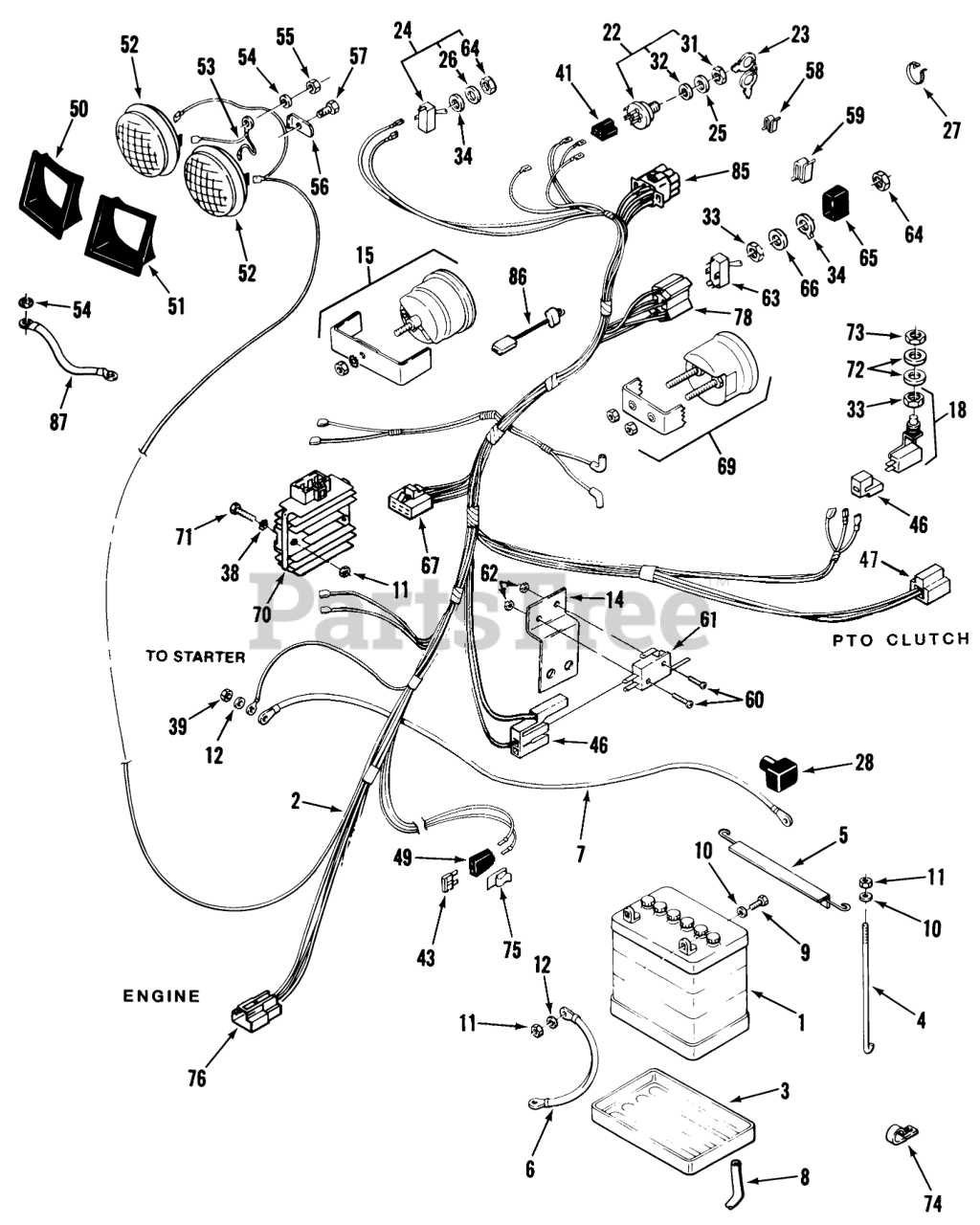

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

2

Toro 114091

Wiring Harness 252-H

$

$

Not available

2

Toro 112749

MAIN-HARN & WIR DIA

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

6

Toro 111076

WIRE - 14" BLACK

$

$

Not available

7

Toro 111077

ASSY WIRE

$

$

Not available

8

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

9

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

14

Toro 111739

BRKT SWITCH BRAKE R

$

$

Not available

15

Toro 110853

Hourmeter 257-H Only (Includes 108768 clamp, 915538 #10-24 Nut & 920120 Ext. Tooth Lockwasher)
(Superseded to 113469)

$446.99

$

Usually ships in 3-6 days

0

18

Toro 114240

Seat Switch
(Superseded to 112418)

$60.99

$

In Stock, only 3 left!

0

22

Toro 111215

Ignition Switch (includes items 31 & 32)
(Superseded to 103991)

$55.99

$

In Stock, only 2 left!

0

23

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

23

Toro 111214

KEY PADDED

$

$

Not available

24

Toro 102138

Light Switch (includes items 33 & 34)

$40.99

$

Usually ships in 3-6 days

0

25

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

27

Toro 100571

PLASTIC TIE

$

$

Not available

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

31

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

33

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

34

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

38

Toro 920122

LOCKWASHER

$

$

Not available

39

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

41

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

43

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 16

0

46

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

47

Toro 109357

CONNECTOR BODY

$

$

Not available

49

Toro 113133

FUSE-BLOCK ASS'Y

$

$

Not available

50

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available

51

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

52

Toro 102881

HEADLAMP

$

$

Not available

53

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

54

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

55

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

56

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

57

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

58

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

59

Toro 3023

SPEED CLIP

$

$

Not available

59

Toro 519337

CLIP-CABLE

$

$

Not available

60

Toro 910478

Screw
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

61

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

62

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

63

Toro 113178

Electric Clutch Switch (includes items 33, 34 & 64)

$

$

Not available

64

Toro 113179

DISC

$

$

Not available

65

Toro 113050

COVER-PTO SWITCH

$

$

Not available

66

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

67

Toro 59221-2099

6 Terminal Connector 112-C Only

$

$

Currently unavailable

69

Toro 110741

Voltmeter (Includes 109650 Clamp & 5924 #10-32 Nut)
(Superseded to 117176)

$

$

Not available

70

Toro KW-10083

Voltage Regulator 252-H (Kawasaki #21066-2004)

$

$

Currently unavailable

70

Toro KW-10253

Voltage Regulator 257-H (Kawasaki #21066-2056)

$

$

Currently unavailable

71

Toro 960155

HHCS 1/4-20X1" WHIZ

$

$

Not available

72

Toro 920263

Washer
(Superseded to 9202634)

$6.49

$

Usually ships in 3-6 days

0

73

Toro 112419

NUT-HEX SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

74

Toro 105490

CLAMP

$

$

Not available

75

Toro 112364

MOUNTING-CLIP CONN

$

$

Not available

76

Toro 112362

3-CONTACT LOCK-TYPE

$

$

Not available

78

Toro 105303

CONNECTOR 5 WAY

$5.49

$

Usually ships in 3-6 days

0

85

Toro 113118

9-Terminal Connector

$

$

Currently unavailable

86

Toro 113357

LIGHT-OIL INDICATOR

$

$

Not available

87

Toro 113463

WIRE-LIGHT GROUND

$

$

Not available
