22-14OE02 (244-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) BATTERY ASSEMBLY Parts Diagram

Yard Tractor

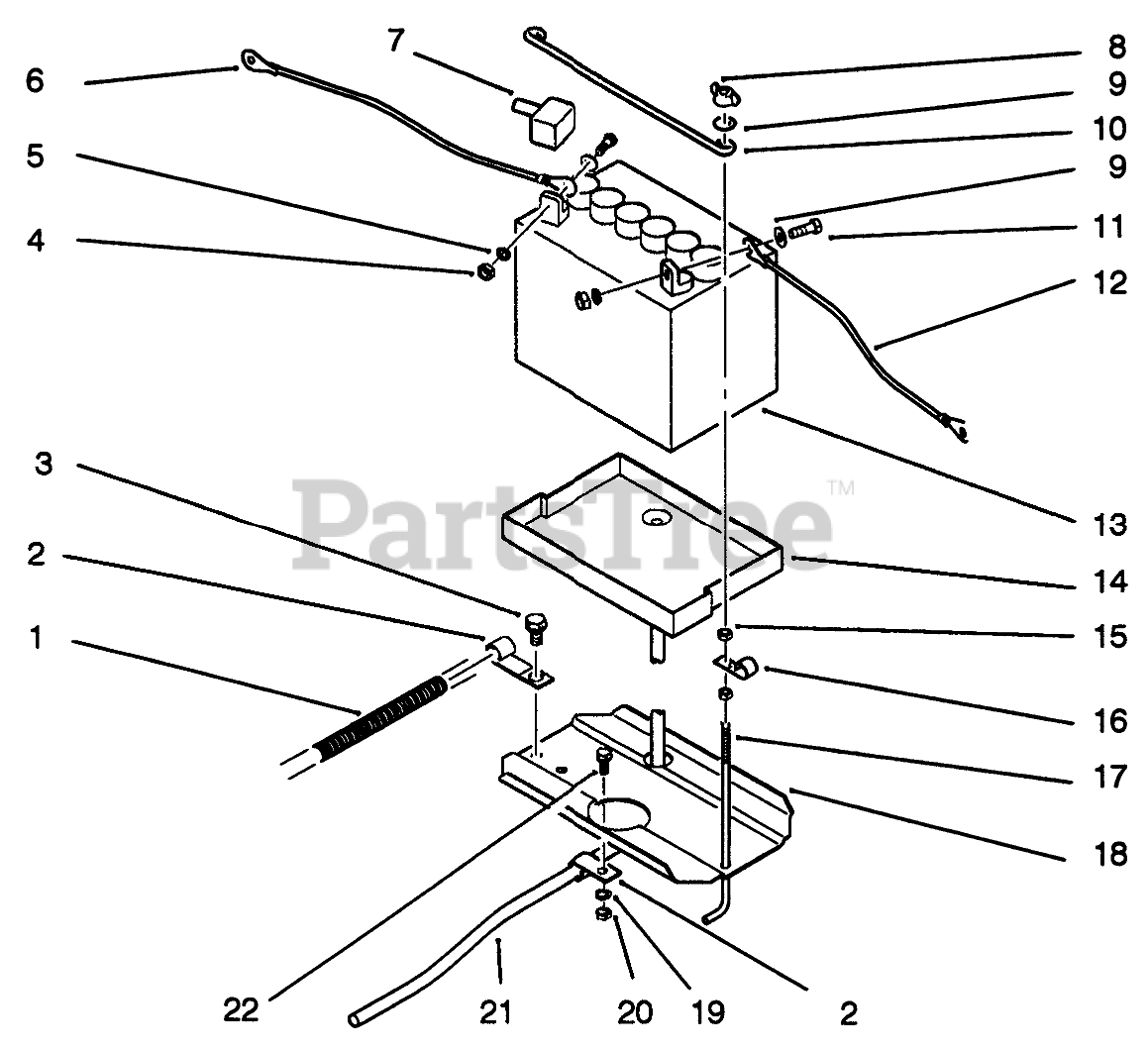

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 79-5010

WIRING-HARNESS & DIA

$

$

Not available

2

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

3

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

4

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 111076

WIRE - 14" BLACK

$

$

Not available

7

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

8

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 117316

ROD-BATTERY HOLD DWN

$29.99

$

In Stock, only 1 left!

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 112757

ASS'Y-WIRE

$

$

Not available

13

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

14

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

15

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

16

Toro 105490

CLAMP

$

$

Not available

17

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

18

Toro 78-6820

Tray
(Superseded to 78-6820-03)

$

$

Not available

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

22

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0
