22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) STEERING SHAFT AND INDICATOR ASSEMBLY Parts Diagram

Yard Tractor

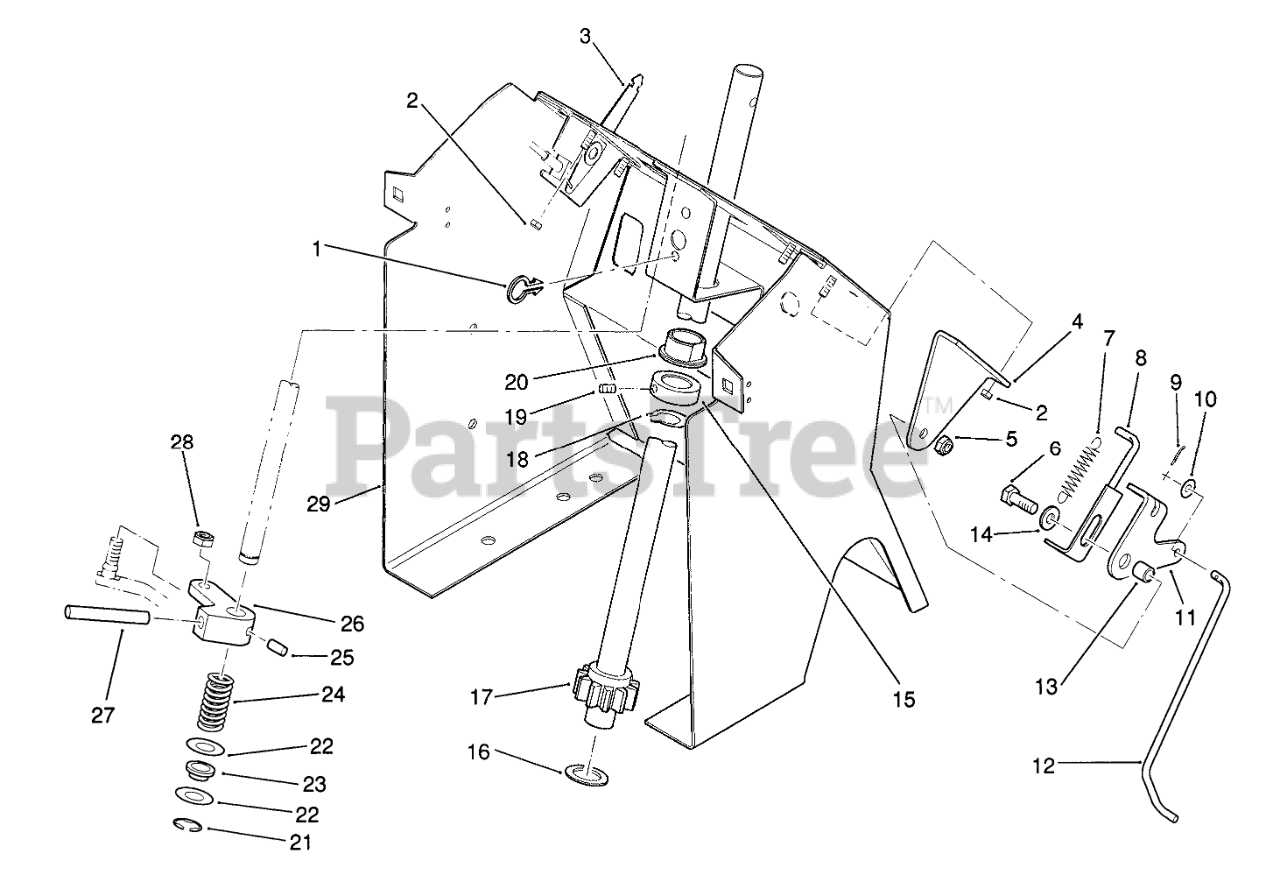

STEERING SHAFT AND INDICATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 115858

CLIP-SNAP IN

$2.99

$

Usually ships in 3-6 days

0

2

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

3

Toro 78-8750

Control-Throttle
(Superseded to 79-3330)

$98.99

$

Usually ships in 3-6 days

0

4

Toro 78-7911

SUPPORT-INDICATOR B

$

$

Not available

5

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 10

0

6

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 78-9750

SPRING-EXTENSION

$

$

Not available

8

Toro 79-1070

WLDMT-INDICATOR R

$

$

Not available

9

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

10

Toro 92000

Washer

$

$

Currently unavailable

11

Toro 78-7901

RETAINER-INDICATO B

$

$

Not available

12

Toro 78-2100

ROD-INDICATOR

$

$

Not available

13

Toro 78-9481

SPACER

$

$

Not available

14

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

15

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

17

Toro 78-8130

WLDMT-STRG SHAFT

$203.99

$

Usually ships in 3-6 days

0

18

Toro 111646

RING-RETAINING

$1.99

$

In Stock, only 4 left!

0

19

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

20

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

21

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

22

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

23

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, only 4 left!

0

24

Toro 78-8730

SPRING-COMPRESSION

$

$

Not available

25

Toro 933276

PIN-SPIROL

$9.99

$

Usually ships in 3-6 days

0

26

Toro 78-6201

ARM-SPEED CONTROL

$

$

Not available

27

Toro 933233

PIN-SPIROL 5/16X2.25

$

$

Not available

28

Toro 915692

5/16-24 E.S. NUT

$0.99

$

Usually ships in 3-6 days

0

29

Toro 78-2392

WLDMT-HOODSTAND B

$

$

Not available

Toro 100571

PLASTIC TIE

$

$

Not available
