22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) MAIN FRAME ASSEMBLY Parts Diagram

Yard Tractor

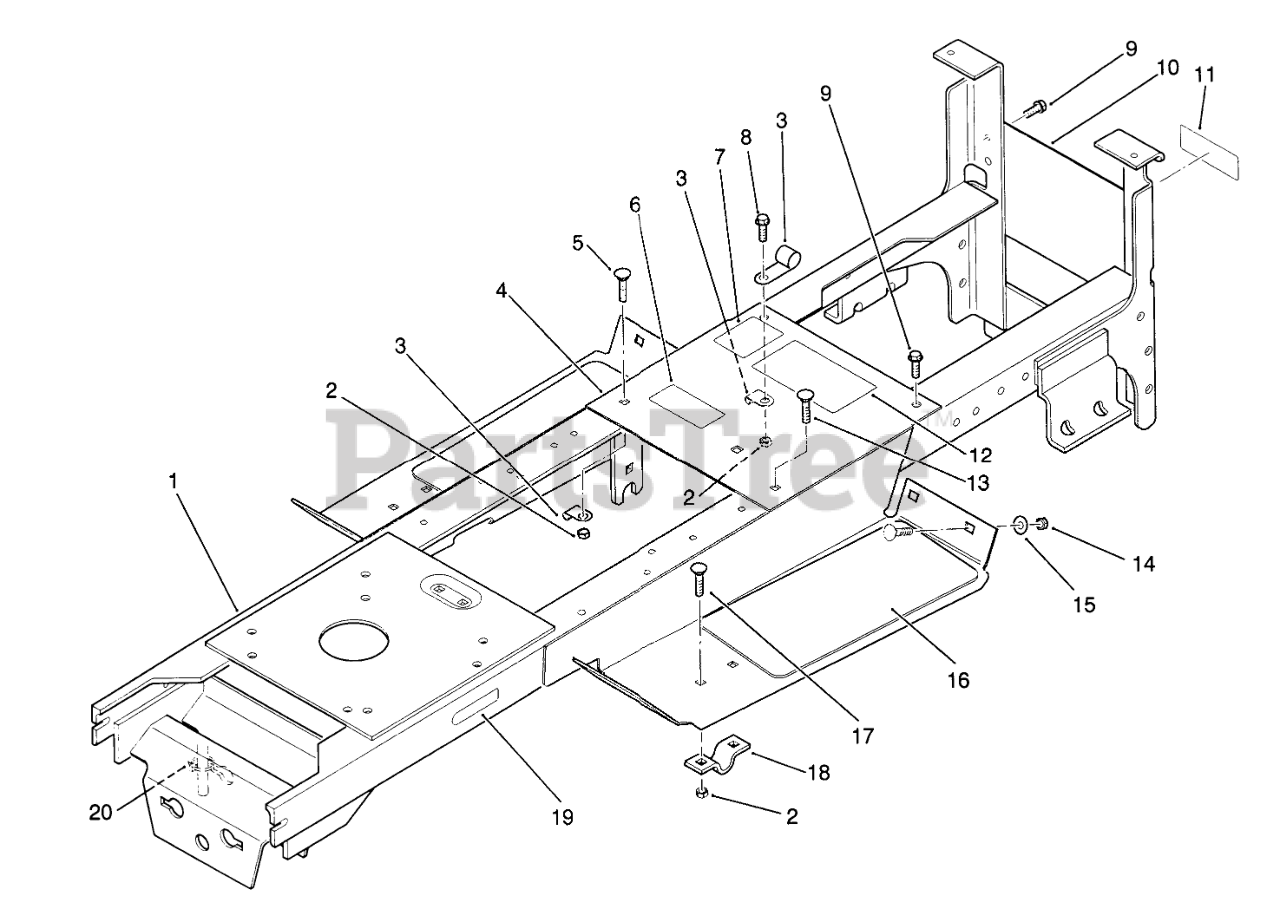

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 78-1142

Frame

$

$

Not available

2

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

3

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

4

Toro 78-1130

Panel
(Superseded to 92-6347)

$

$

Not available

5

Toro 900215

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

6

Toro 78-8470

Decal-Danger
(Superseded to 79-0370)

$

$

Not available

7

Toro 79-0120

DECAL-PARKING BRAKE

$

$

Not available

8

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

9

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

10

Toro 79-0681

PANEL-REAR R

$

$

Not available

11

Toro 116735

ROLLER-CHAIN #50 SEC

$

$

Not available

12

Toro 112670

DECAL-DANGER

$

$

Not available

13

Toro 900214

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 900214

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

18

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

19

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available
