22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) ENGINE AND BATTERY MOUNT ASSEMBLY Parts Diagram

Yard Tractor

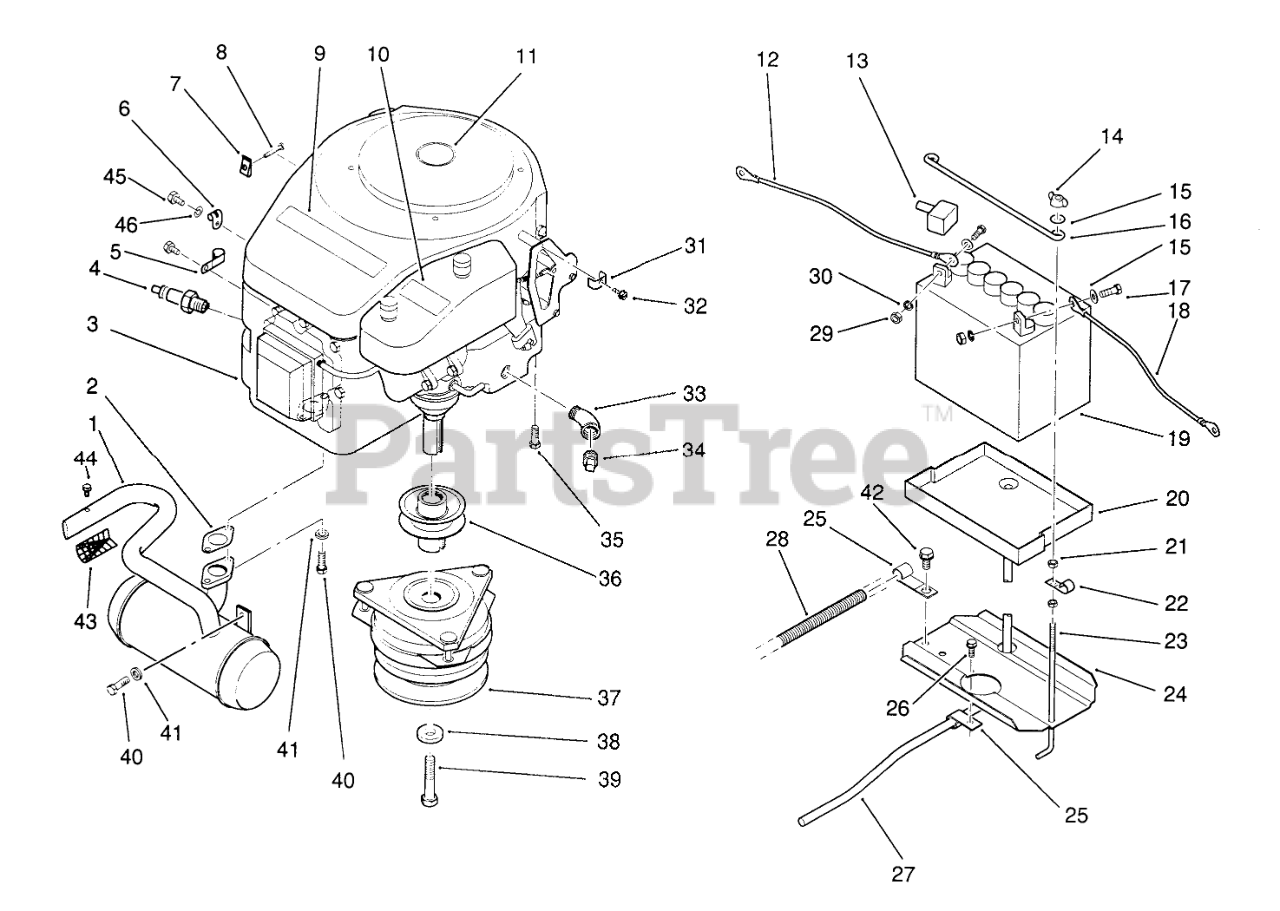

ENGINE AND BATTERY MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 78-2930

MUFFLER

$

$

Not available

2

Toro 117184

GASKET-EXHAUST

$34.99

$

Usually ships in 3-6 days

0

3

Toro 78-7110

ENGINE-E14OV/11207

$

$

Not available

4

Toro NN10728

Plug-Spark
(Superseded to NN10820)

$4.49

$

In Stock, only 4 left!

0

5

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

6

Toro 115413

CLEVIS

$

$

Not available

7

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

8

Toro 113114

HHCS M8X1.25X15

$

$

Not available

9

Toro 118600

DECAL-PWR PLUS

$

$

Not available

10

Toro 78-8740

DECAL-14.0 POWER PLV
(Superseded to 92-3073)

$

$

Not available

11

Toro 120040

DECAL-TORO ENGINE

$

$

Not available

12

Toro 111076

WIRE - 14" BLACK

$

$

Not available

13

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

14

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 17

0

15

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

16

Toro 117316

ROD-BATTERY HOLD DWN

$29.99

$

In Stock, only 1 left!

0

17

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 112757

ASS'Y-WIRE

$

$

Not available

19

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

20

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

21

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

22

Toro 105490

CLAMP

$

$

Not available

23

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

24

Toro 78-6820

Tray
(Superseded to 78-6820-03)

$

$

Not available

25

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

26

Toro 926694

SCREW

$

$

Not available

27

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

28

Toro 78-7230

WIRE-HARNESS

$

$

Not available

29

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

30

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

31

Toro 11688

Clamp

$

$

Currently unavailable

32

Toro 926566

Screw
(Superseded to 9265664)

$

$

Not available

33

Toro 943083

STREET ELBOW 45DEGRE

$19.99

$

Usually ships in 3-6 days

0

34

Toro NN10682

Plug
(Superseded to 82-1130)

$

$

Not available

35

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

36

Toro 78-6610

PULLEY-ENGINE HYD R

$

$

Not available

37

Toro 78-6990

Clutch
(Superseded to 92-6885)

$958.99

$

Usually ships in 3-6 days

0

38

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

39

Toro 115203

HHCS-M10X1.5X110 ESL

$11.99

$

Usually ships in 3-6 days

0

40

Toro 113113

HHCS M8X1.25X20

$

$

Not available

41

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

42

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

43

Toro 115356

Arrester-Spark
(Superseded to 93-9911)

$45.99

$

Usually ships in 3-6 days

0

44

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

45

Toro 118060

Screw
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

46

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0
