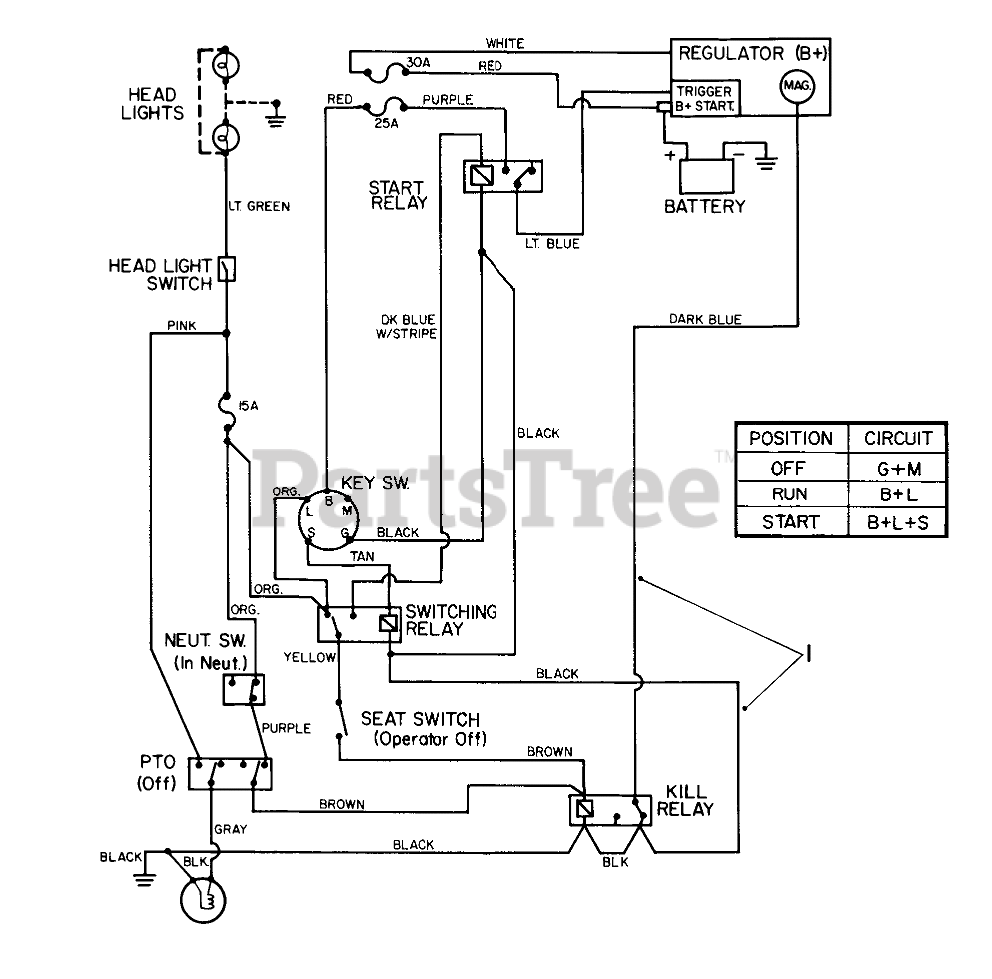

22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) ELECTRICAL SCHEMATIC Parts Diagram

Yard Tractor

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 78-7230

WIRE-HARNESS

$

$

Not available
