22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) DASH ASSEMBLY Parts Diagram

Yard Tractor

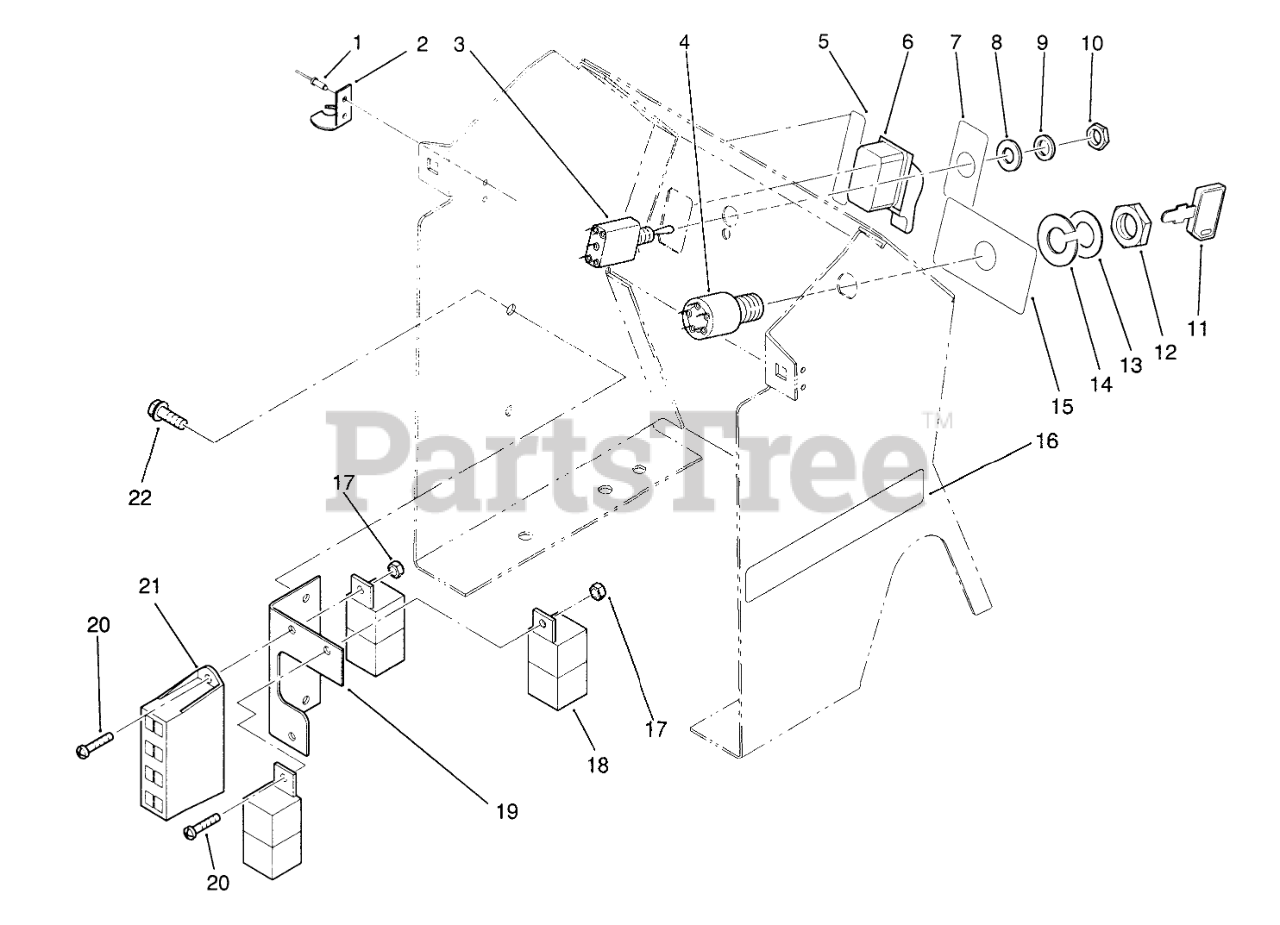

DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

2

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

3

Toro 102138

Switch-Lights (Incl. Ref. #8-10)

$40.99

$

Usually ships in 3-6 days

0

4

Toro 116338

Switch-Ignition, Assembly (Incl. Ref #11, 12 & 14)

$78.99

$

In Stock, only 2 left!

0

5

Toro 78-8440

DECAL-PTO

$

$

Not available

6

Toro 78-3030

PTO-SWITCH W/COVER

$126.99

$

In Stock, only 3 left!

0

7

Toro 78-8490

DECAL-LIGHTS

$

$

Not available

8

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

9

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

10

Toro 113179

DISC

$

$

Not available

11

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

12

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

13

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

14

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

15

Toro 78-8480

DECAL-IGNITION

$

$

Not available

16

Toro 117511

DECAL-MODEL HYDRO

$

$

Not available

17

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

18

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

19

Toro 78-2250A

Bracket-Holder, Fuse

$

$

Currently unavailable

20

Toro 78-8710

SCREW

$0.99

$

Usually ships in 3-6 days

0

21

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

22

Toro 79-1590

TRS-1/4-20X1/2 BLACK

$

$

Not available
