22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) 14HP ENGINE CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

Yard Tractor

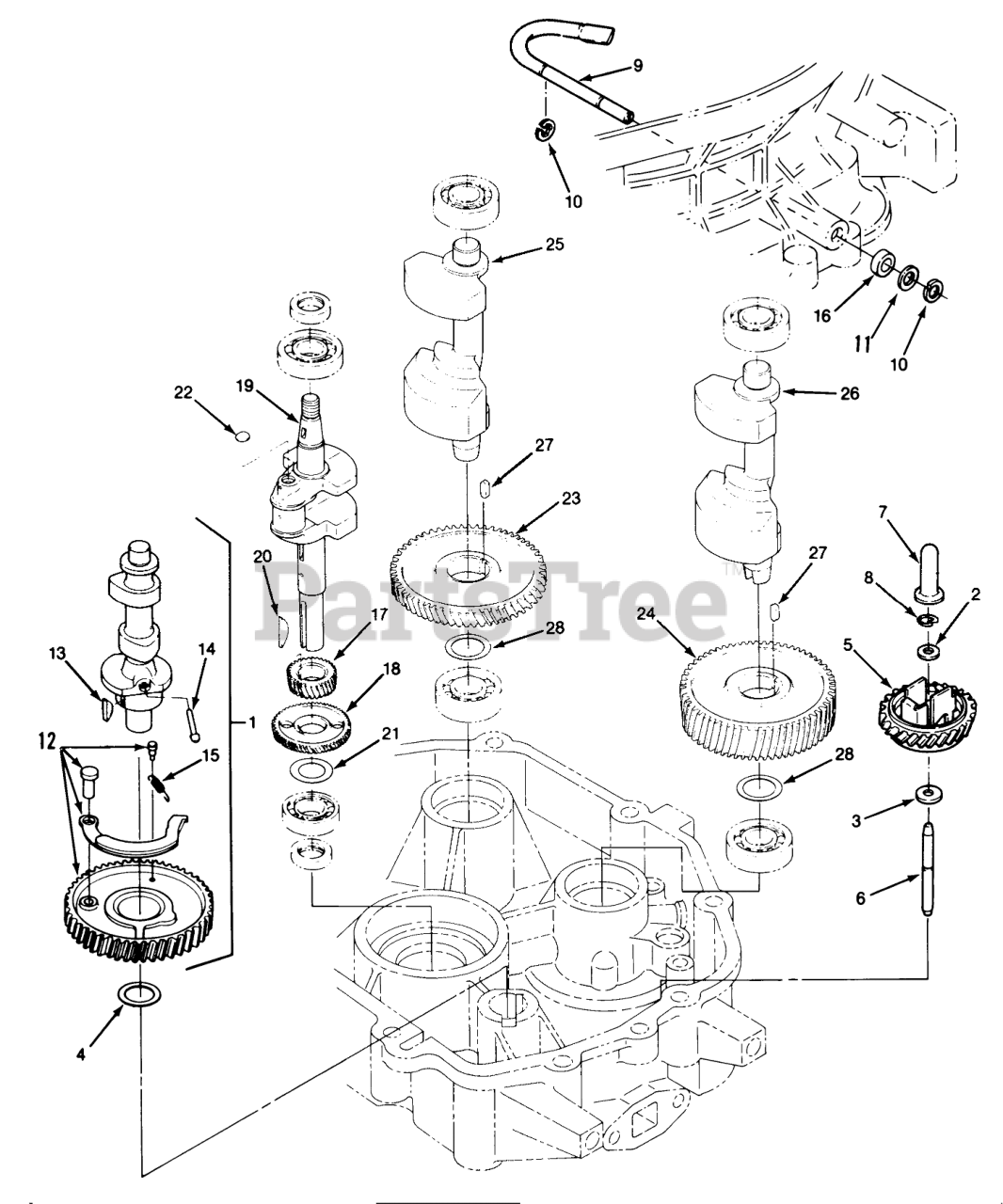

14HP ENGINE CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro NN10627

Camshaft Assembly (Incl. Ref. #12-15)
(Superseded to 92-5877)

$825.99

$

Usually ships in 3-6 days

0

2

Toro NN10628

WASHER-1.6MM THK

$

$

Not available

3

Toro NN10629

WASHER-1MM THK

$

$

Not available

4

Toro NN10630

SHIM-CAMSHFT 0.5MM

$

$

Not available

Toro NN10631

SHIM-CAMSHFT 0.6MM

$

$

Not available

Toro NN10632

SHIM-CAMSHFT 0.8MM

$

$

Not available

Toro NN10633

SHIM-CAMSHFT 0.9MM

$

$

Not available

Toro NN10634

SHIM-CAMSHFT 1.0MM

$

$

Not available

Toro NN10635

SHIM-CAMSHFT 1.2MM

$

$

Not available

5

Toro NN10636

GEAR-GOVERNOR

$

$

Not available

6

Toro NN10637

SHAFT-GOVERNOR

$

$

Not available

7

Toro NN10638

Sleeve
(Superseded to 92-5914)

$

$

Not available

8

Toro NN10639

STOP-GOVERNOR

$

$

Not available

9

Toro NN10640

SHAFT-GOVERNOR LEVER

$

$

Not available

10

Toro NN10641

CLIP-RETAINER

$

$

Not available

11

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

12

Toro NN10642

CAMGEAR ASS'Y

$

$

Not available

13

Toro NN10643

KEY-CAMGEAR

$

$

Not available

14

Toro NN10644

PIN-DECOMPRESSION

$

$

Not available

15

Toro NN10645

SPRING-DECOMPRESSION

$

$

Not available

16

Toro NN10646

SEAL-GVR SHAFT LEVER

$

$

Not available

17

Toro NN10742

GEAR-CRANKSHAFT

$103.99

$

Usually ships in 3-6 days

0

18

Toro NN10743

GEAR-BALANCER

$

$

Not available

19

Toro NN10744

Crankshaft
(Superseded to 92-5939)

$

$

Not available

20

Toro NN10745

KEY-CRANKSHAFT GEAR

$

$

Not available

21

Toro NN10746

SHIM-CRANKSHFT 0.2MM

$

$

Not available

Toro NN10747

SHIM-CRANKSHFT 0.3MM

$

$

Not available

Toro NN10748

SHIM-CRANKSHFT 0.4MM

$

$

Not available

Toro NN10749

SHIM-CRANKSHFT 0.5MM

$

$

Not available

22

Toro NN10750

PLUG-EXPANSION

$

$

Not available

23

Toro NN10751

GEAR-BALANCER

$

$

Not available

24

Toro NN10752

GEAR-BALANCER

$

$

Not available

25

Toro NN10753

SHAFT-BALANCER

$

$

Not available

26

Toro NN10754

SHAFT-BALANCER

$

$

Not available

27

Toro NN10755

KEY-BALANCER GEAR

$

$

Not available

28

Toro NN10756

SHIM-BAL SHAFT 0.5MM

$

$

Not available

Toro NN10757

SHIM-BAL SHAFT 0.6MM

$

$

Not available

Toro NN10758

SHIM-BAL SHAFT 0.7MM

$

$

Not available

Toro NN10759

SHIM-BAL SHAFT 0.8MM

$

$

Not available

Toro NN10760

SHIM-BAL SHAFT 0.9MM

$

$

Not available

Toro NN10761

SHIM-BAL SHAFT 1.0MM

$

$

Not available

Toro NN10762

SHIM-BAL SHAFT 1.2MM

$

$

Not available

Toro NN10765

KIT-GASKET ENGINE

$

$

Not available

Toro NN10764

KIT-FIELD CONVERSION

$

$

Not available

Toro NN10347

Sealant-Thread (50cc Bottle)
(Superseded to 82-1220)

$

$

Not available
