22-14O502 (244-5) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

Yard Tractor

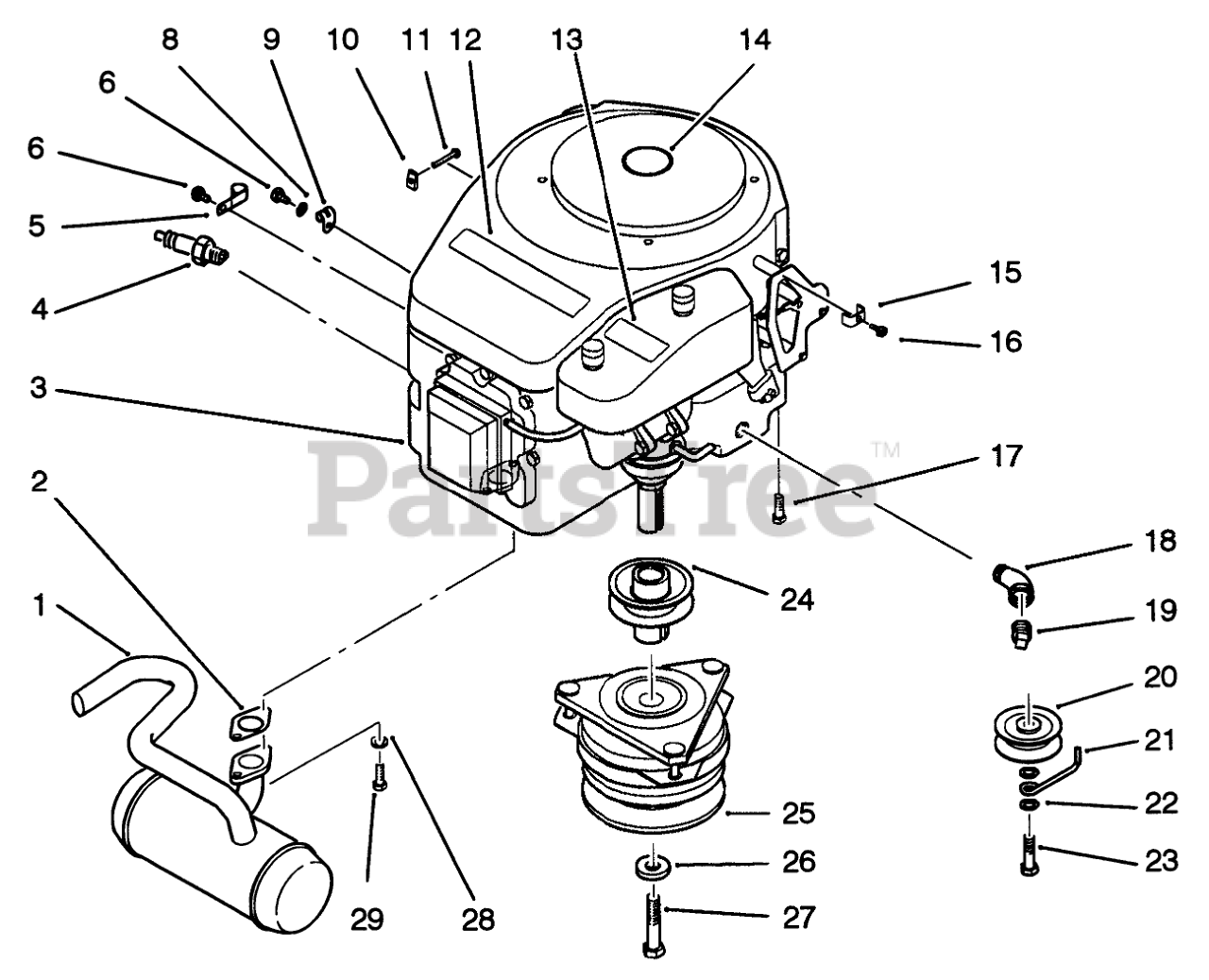

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 78-2930

MUFFLER

$

$

Not available

2

Toro 117184

GASKET-EXHAUST

$31.99

$

Usually ships in 3-6 days

0

3

Toro 78-7110

ENGINE-E14OV/11207

$

$

Not available

4

Toro NN10728

Plug-Spark
(Superseded to NN10820)

$4.49

$

In Stock, only 1 left!

0

5

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

6

Toro 118060

Screw
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 115413

CLEVIS

$

$

Not available

10

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

11

Toro 113114

HHCS M8X1.25X15

$

$

Not available

12

Toro 118600

DECAL-PWR PLUS

$

$

Not available

13

Toro 78-8740

DECAL-14.0 POWER PLV
(Superseded to 92-3073)

$

$

Not available

14

Toro 120040

DECAL-TORO ENGINE

$

$

Not available

15

Toro 11688

Clamp

$

$

Currently unavailable

16

Toro 926566

Screw
(Superseded to 9265664)

$

$

Not available

17

Toro 926696

Bolt
(Superseded to 9266964)

$7.99

$

Usually ships in 3-6 days

0

18

Toro 943083

STREET ELBOW 45DEGRE

$17.99

$

Usually ships in 3-6 days

0

19

Toro NN10682

Plug
(Superseded to 82-1130)

$4.99

$

Usually ships in 3-6 days

0

20

Toro 110370

IDLER PULLEY R
(Superseded to 93-0320)

$19.99

$

In Stock, only 4 left!

0

21

Toro 79-1790

GUIDE-BELT

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

24

Toro 78-6641

PULLEY ENGINE GEA
(Superseded to 93-0321)

$186.99

$

Usually ships in 3-6 days

0

25

Toro 78-6990

Clutch
(Superseded to 92-6885)

$958.99

$

Usually ships in 3-6 days

0

26

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

27

Toro 115203

HHCS-M10X1.5X110 ESL

$10.99

$

Usually ships in 3-6 days

0

28

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 113113

HHCS M8X1.25X20

$

$

Not available
