22-14O502 (244-5) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) 14HP ENGINE OIL BASE & PUMP ASSEMBLY Parts Diagram

Yard Tractor

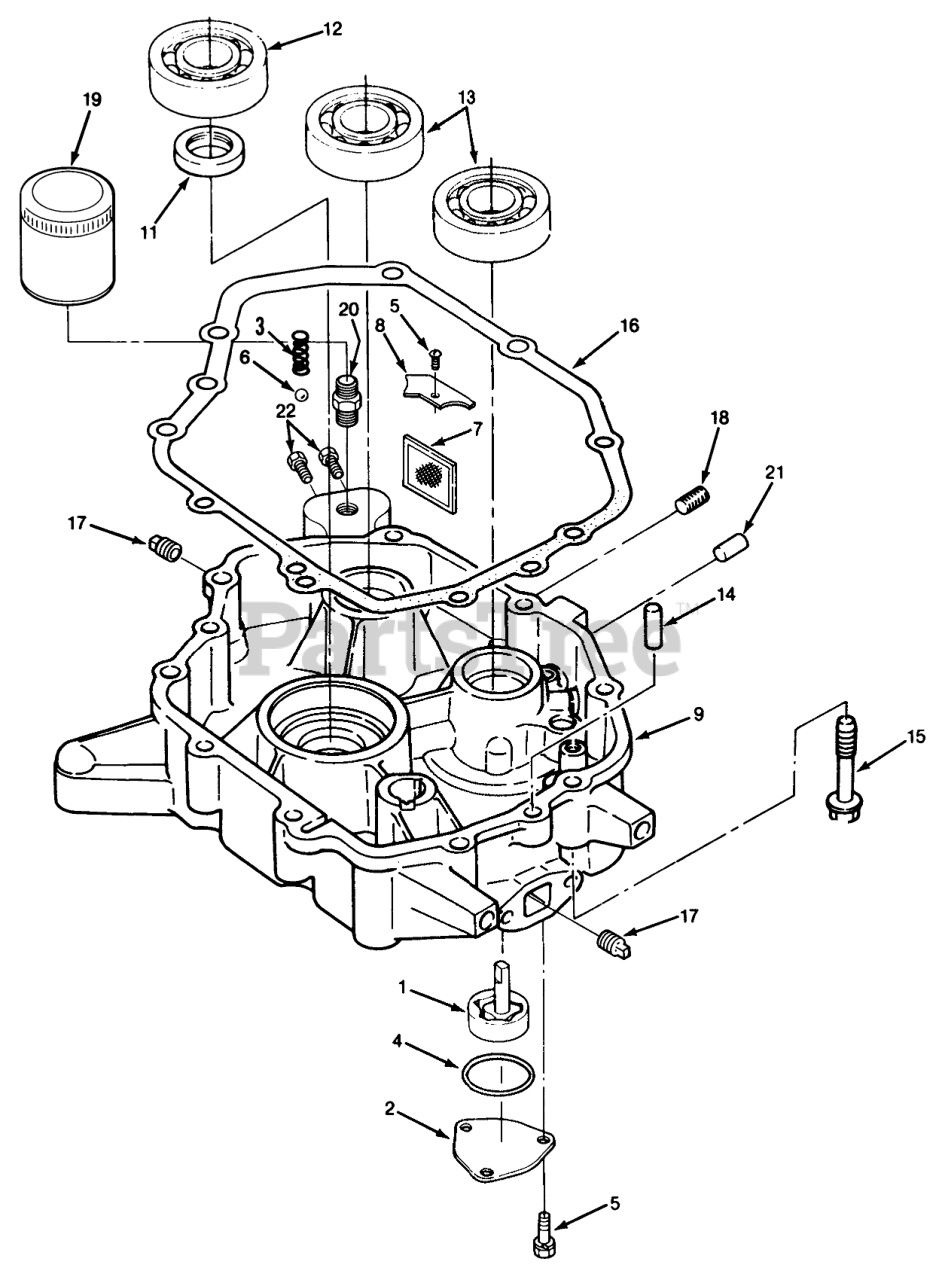

14HP ENGINE OIL BASE & PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro NN10572

PUMP-OIL

$

$

Not available

2

Toro NN10573

COVER-OIL PUMP

$

$

Not available

3

Toro NN10574

SPRING-RELIEF VALVE

$

$

Not available

4

Toro NN10575

RING-O

$

$

Not available

5

Toro NN10576

SCREW

$

$

Not available

6

Toro NN10534

BALL-BEARING

$

$

Not available

7

Toro NN10577

SCREEN

$

$

Not available

8

Toro NN10578

COVER

$

$

Not available

9

Toro NN10675

BASE-0IL

$

$

Not available

11

Toro NN10569

SEAL-OIL CRNKSHFT UP

$17.99

$

Usually ships in 3-6 days

0

12

Toro NN10677

BRNG-BALL CRANKSH L

$

$

Not available

13

Toro NN10678

BRNG-BALL BAL SHFT L

$

$

Not available

14

Toro NN10679

PIN-ALIGNMENT

$

$

Not available

15

Toro NN10680

SELF-TAP BOLT SP M8

$

$

Not available

16

Toro NN10681

Gasket
(Superseded to 93-9816)

$

$

Not available

17

Toro NN10682

Plug
(Superseded to 82-1130)

$4.99

$

Usually ships in 3-6 days

0

18

Toro NN10683

Plug
(Superseded to NN10770)

$

$

Not available

19

Toro NN10684

FILTER

$32.99

$

In Stock, only 3 left!

0

20

Toro NN10685

ADAPTER

$32.99

$

Usually ships in 3-6 days

0

21

Toro NN10686

PLUG

$

$

Not available

22

Toro NN10687

PLUG-HEX HD

$

$

Not available
