22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) MAIN FRAME ASSEMBLY Parts Diagram

Yard Tractor

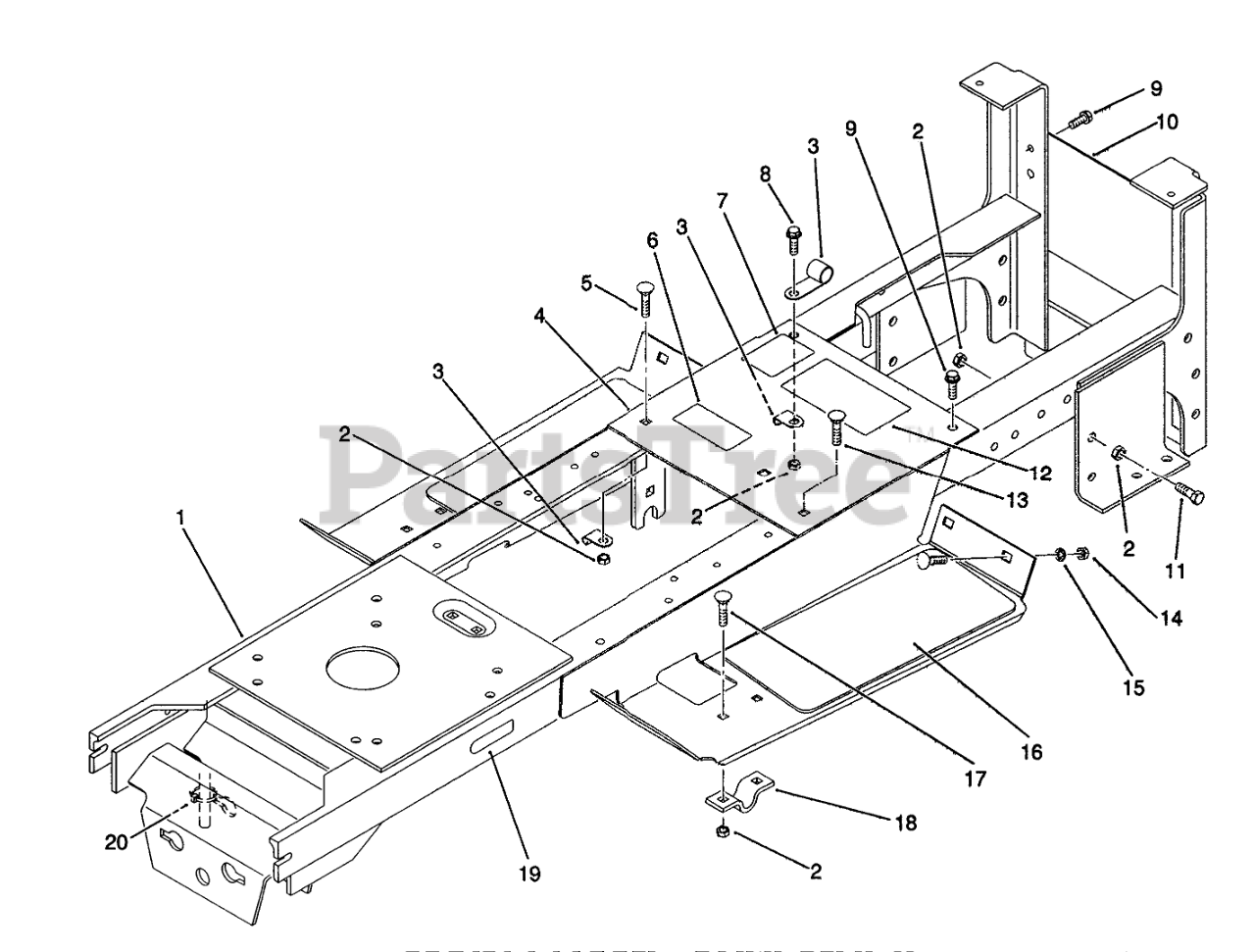

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 78-7292

WELDMENT-FRAME R

$

$

Not available

2

Toro 9156624

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

3

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

4

Toro 78-1130

Panel
(Superseded to 92-6347)

$

$

Not available

5

Toro 9000389

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

6

Toro 78-8470

Decal-Danger
(Superseded to 79-0370)

$

$

Not available

7

Toro 79-0120

DECAL-PARKING BRAKE

$

$

Not available

8

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

10

Toro 79-0681

PANEL-REAR R

$

$

Not available

11

Toro 9080214

Screw-Cap. Hex. Hd.
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

12

Toro 112670

DECAL-DANGER

$

$

Not available

13

Toro 9002159

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

14

Toro 9151124

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 9201554

Washer-Lock
(Superseded to 3254-8)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 900379

Bolt-Carriage

$

$

Currently unavailable

18

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

19

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available
