22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) FUEL TANK AND STEERING BRACKET ASSEMBLY Parts Diagram

Yard Tractor

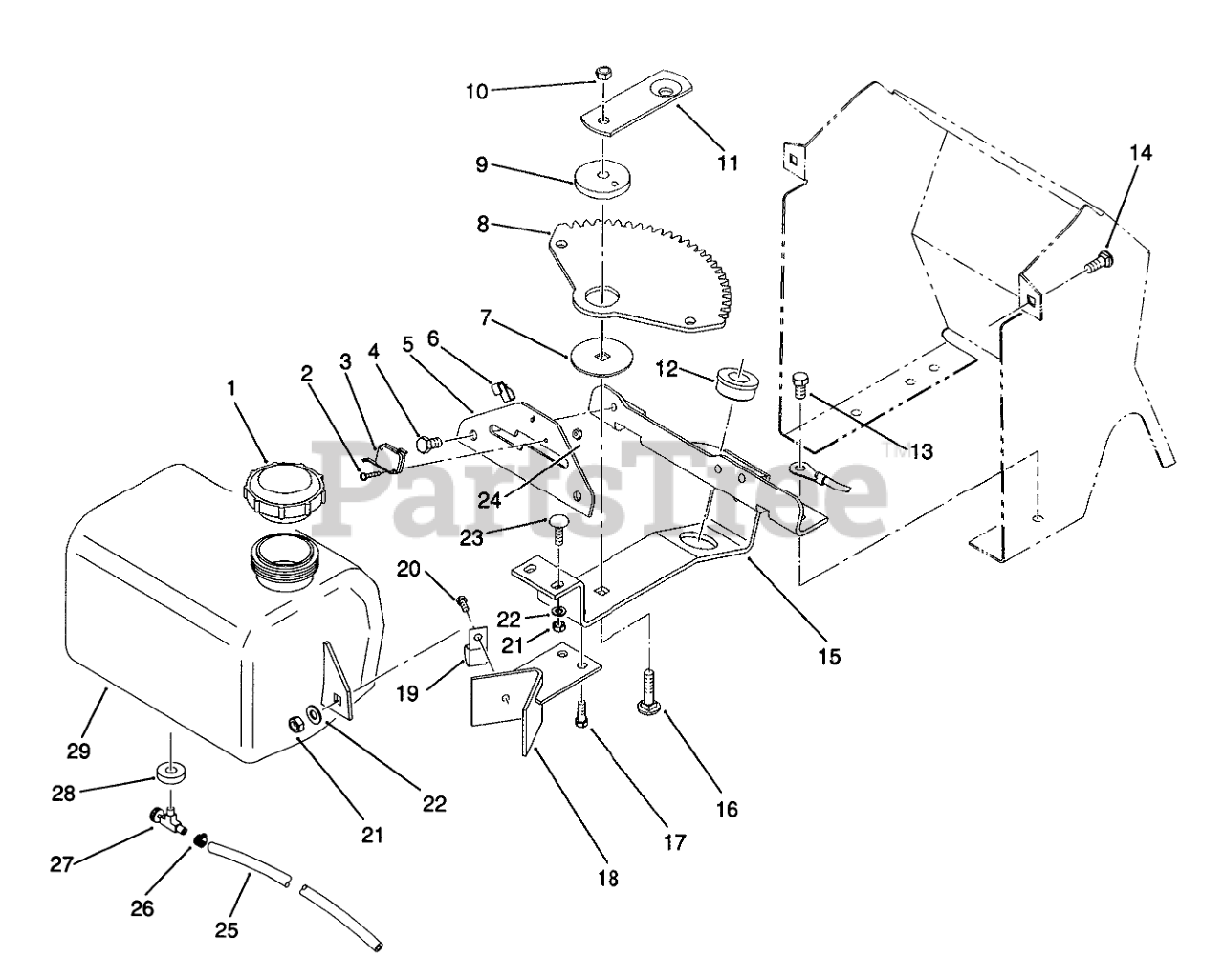

FUEL TANK AND STEERING BRACKET ASSEMBLY Parts Diagram

  • Title
1

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

2

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

3

Toro 115230

SWITCH - CLUTCH

$34.99

$

Usually ships in 3-6 days

0

4

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

5

Toro 78-8165

PLATE SHIFT R

$

$

Not available

6

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

7

Toro 111419

WASHER-BEARING

$

$

Not available

8

Toro 78-2610

GEAR-SECTOR
(Superseded to 106-8262)

$78.99

$

In Stock, only 2 left!

0

9

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

10

$

$

Currently unavailable

11

Toro 78-9190

Plate
(Superseded to 78-9150-03)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, only 4 left!

0

13

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

14

Toro 9000379

Bolt-Carriage
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

15

Toro 78-1192

Bracket-Steering
(Superseded to 78-1193)

$

$

Not available

16

Toro 9002359

Bolt-Carriage
(Superseded to 3231-28)

$4.49

$

In Stock, Qty 20+

0

17

Toro 9267204

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 78-2490

Stop-W.A.
(Superseded to 78-2491-03)

$46.99

$

Usually ships in 3-6 days

0

19

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

20

Toro 9267204

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

21

Toro 9156624

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 9200084

Washer
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

23

Toro 9062159

Bolt-Carriage

$

$

Not available

24

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

25

Toro 117225

Line-Fuel
(Superseded to 110521)

$

$

Not available

26

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

27

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

28

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

29

Toro 111473

Fuel Tank
(Superseded to 112153)

$

$

Not available

Toro 112153

Assy.-Tank, Fuel (Incl. Ref. #27-29)

$

$

Not available
