22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) FENDER AND SEAT ASSEMBLY Parts Diagram

Yard Tractor

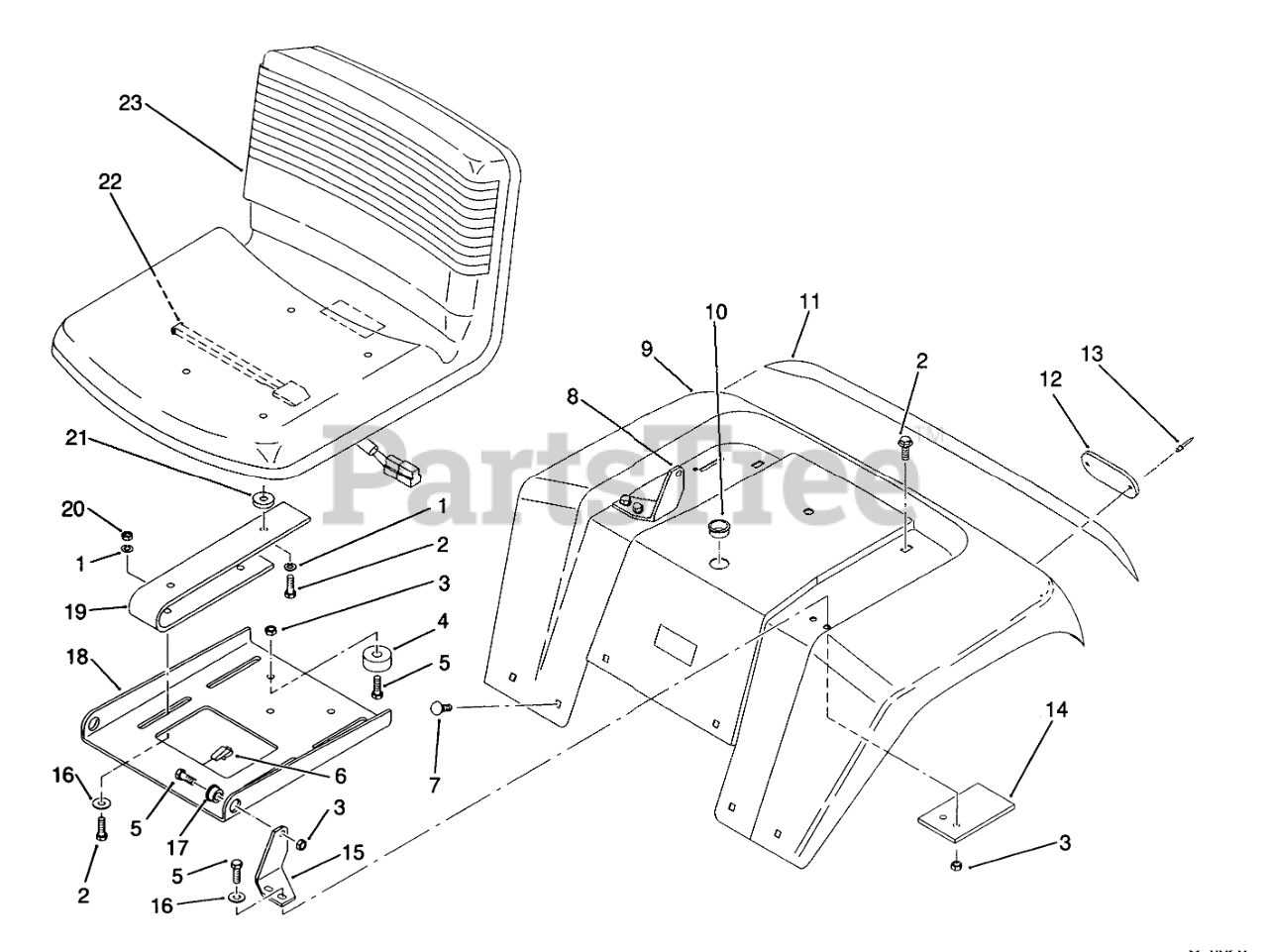

FENDER AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 9200824

Washer-Lock
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

2

Toro 9080184

Screw-Cap, Hex. Hd.
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

3

Toro 9156624

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 108889

BUMPER

$21.99

$

Usually ships in 3-6 days

0

5

Toro 9080194

Screw-Cap Hex. Hd.
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

6

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

7

Toro 9002149

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

8

Toro 112744

Bracket-Pivot RH

$36.99

$

Usually ships in 3-6 days

0

9

Toro 79-0050

FENDER R

$664.99

$

Usually ships in 3-6 days

0

10

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0

11

Toro 117760

DECAL-FENDER

$54.99

$

Usually ships in 3-6 days

0

12

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

13

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

14

Toro 112961

PLATE R

$

$

Not available

15

Toro 112745

BRACKET-PIVOT L.H B

$36.99

$

Usually ships in 3-6 days

0

16

Toro 9200084

Washer
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

17

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 7

0

18

Toro 113852

PLATE-SEAT PIVOT B

$

$

Not available

19

Toro 112837

SPRING-SEAT B

$

$

Not available

20

Toro 9151124

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

22

Toro 38-1420

SWITCH-SEAT

$

$

Not available

23

Toro 78-9160

SEAT V-410

$

$

Not available
