22-13KE02 (252-H) - Toro Yard Tractor (1989) FRAME, SHEET METAL AND COVERS Parts Diagram

Yard Tractor

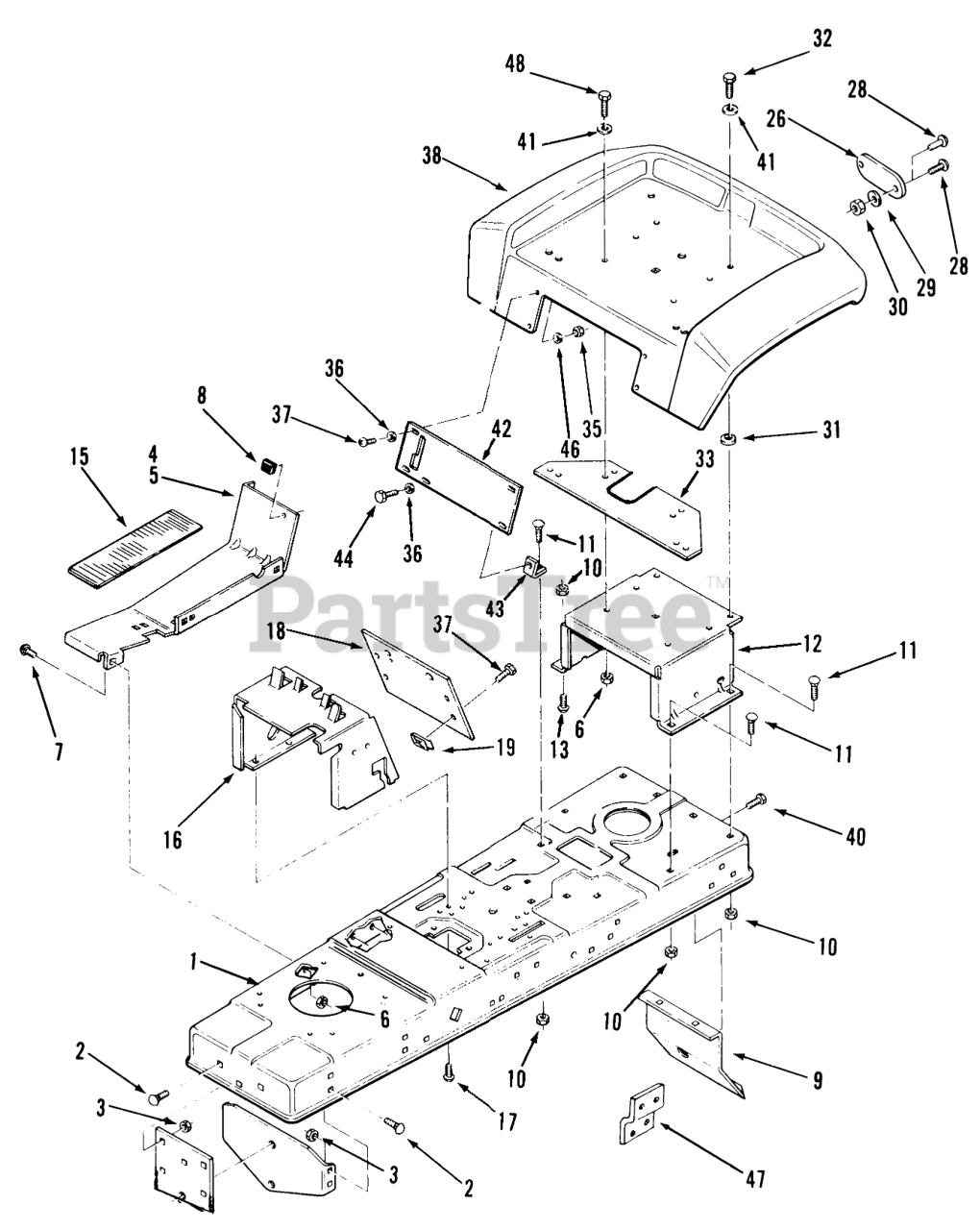

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 112880

Frame

$

$

Not available

2

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 112696

FOOTREST-R.H. R

$

$

Not available

5

Toro 112697

FOOTREST-L.H. R

$

$

Not available

6

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

7

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

9

Toro 112703

Hitch-Drawbar

$

$

Not available

10

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

11

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

12

Toro 112748

Support-Seat

$

$

Not available

13

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

15

Toro 106488

PAD-FOOTREST

$36.99

$

Usually ships in 3-6 days

0

15

Toro 114842

MAT-FOOTREST R.H.

$

$

Not available

15

Toro 114841

MAT-FOOTREST L.H.

$

$

Not available

16

Toro 114690

Hoodstand

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 114058

Hoodstand Plate 252-H

$

$

Not available

18

Toro 113325

PLATE-HOODSTAND R B

$

$

Not available

19

$2.99

$

In Stock, Qty 20+

0

26

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

28

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

28

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

29

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

30

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

31

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

32

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

33

Toro 114288

PLATE-SEAT R

$

$

Not available

35

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

36

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

37

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

38

Toro 112471

FENDER R

$

$

Not available

40

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

41

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

42

Toro 113336

Front Fender Plate

$

$

Not available

43

Toro 110511

BRACKET FENDER

$

$

Not available

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

46

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

47

Toro 111739

BRKT SWITCH BRAKE R

$

$

Not available

48

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0
