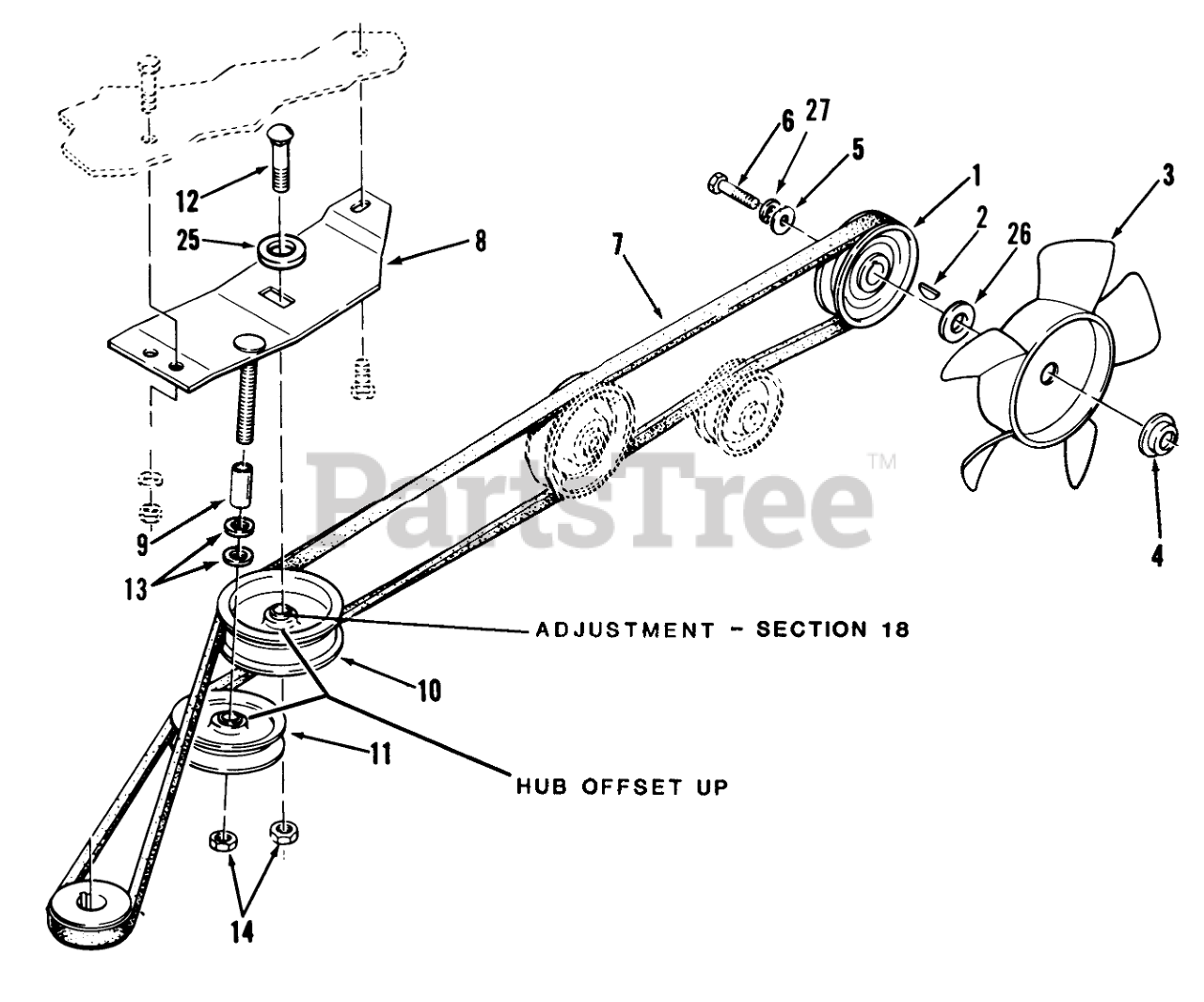

22-13KE02 (252-H) - Toro Yard Tractor (1989) DRIVE BELT AND PULLEYS-AUTOMATIC MODEL Parts Diagram

Yard Tractor

DRIVE BELT AND PULLEYS-AUTOMATIC MODEL Parts Diagram

  • Title
1

Toro 109387

PULLEY

$

$

Not available

2

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

3

Toro 109389

BLADE - FAN

$

$

Not available

4

Toro 109798

SPACER FAN

$

$

Not available

5

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

6

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

7

Toro 109428

V-BELT

$47.99

$

In Stock, only 1 left!

0

8

Toro 109429

ASSY PULLEY BRACK R

$

$

Not available

9

Toro 109414

Spacer

$

$

Not available

10

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

11

Toro 8205

PULLEY-IDLER STATION

$25.99

$

In Stock, only 1 left!

0

12

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

13

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

25

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

26

Toro 920261

Special Washer

$

$

Not available

27

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0
