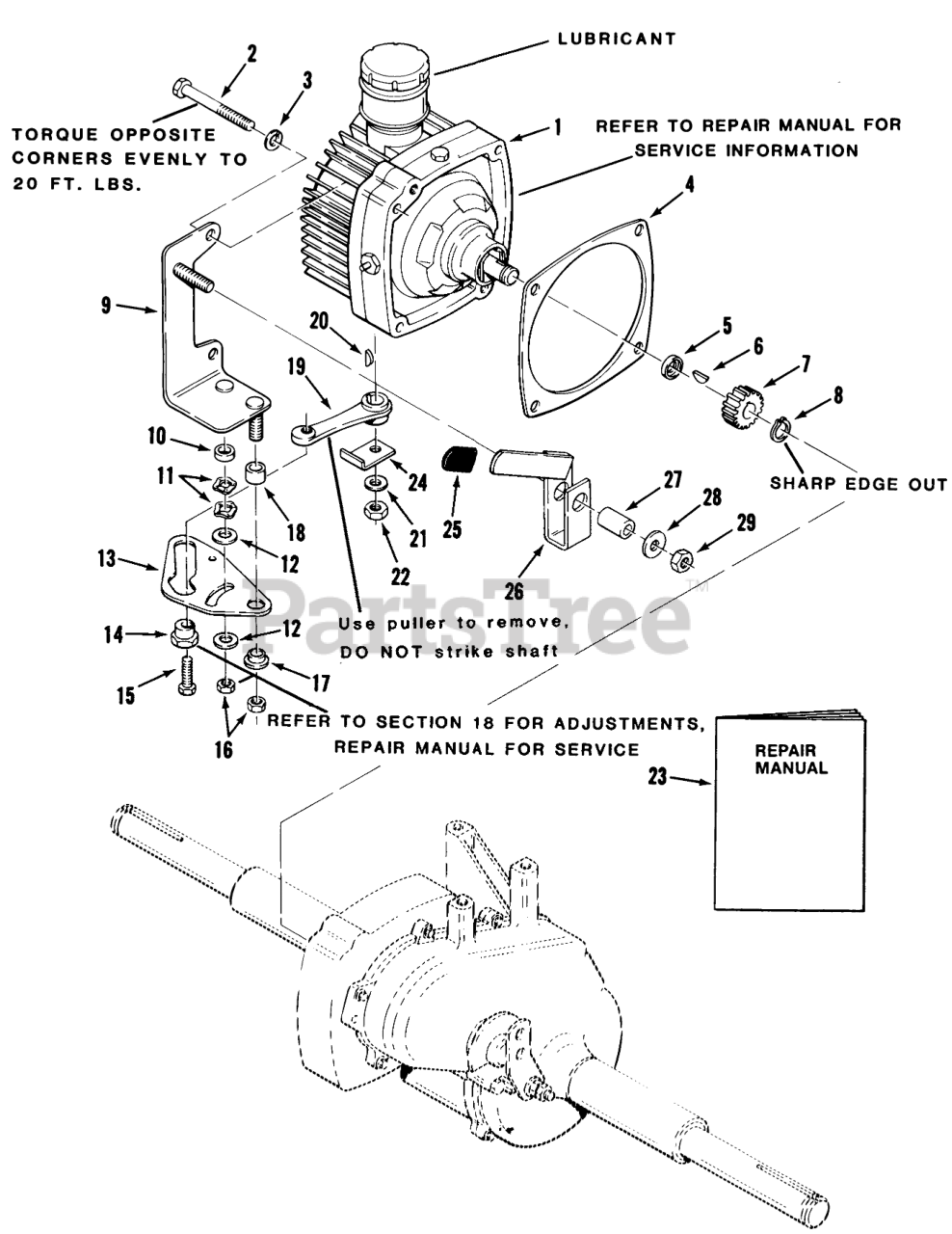

22-13KE02 (252-H) - Toro Yard Tractor (1989) AUTOMATIC TRANSMISSION Parts Diagram

Yard Tractor

AUTOMATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 1113442

Pump & Motor (219024-Rebuilt)

$

$

Currently unavailable

2

Toro 2908042

Bolt 3/8-16 X 3

$

$

Currently unavailable

3

Toro 3920083

Lockwasher 3/8

$

$

Currently unavailable

4

Toro 47951

Gasket

$

$

Currently unavailable

5

Toro 5109447

Spacer

$

$

Currently unavailable

6

Toro 6937082

Woodruff Key 1/8 X 1/2

$

$

Currently unavailable

7

Toro 7109446

Gear 12 Tooth

$

$

Currently unavailable

8

Toro 8936122

Snap Ring

$

$

Currently unavailable

9

Toro 9113334

Control Plate

$

$

Currently unavailable

10

Toro 10108327

Spacer (Short)

$

$

Currently unavailable

11

Toro 11100365

Washer-Spring

$

$

Currently unavailable

12

Toro 12100305

Washer-Friction

$

$

Currently unavailable

13

Toro 13108333

Cam-Speed Control

$

$

Currently unavailable

14

Toro 14106661

Eccentric Cam

$

$

Currently unavailable

15

Toro 15908019

Eslok Bolt 5/16-18 X 1

$

$

Currently unavailable

16

Toro 16108881

Lock Nut 3/8-16 Hi-Tensile

$

$

Currently unavailable

17

Toro 17100309

Spacer

$

$

Currently unavailable

18

Toro 18108326

Spacer (Long)

$

$

Currently unavailable

19

Toro 19109383

Cam Follower Arm

$

$

Currently unavailable

20

Toro 20937082

Woodruff Key 1/8 x 1/2

$

$

Currently unavailable

21

Toro 21920009

Washer 3/8 SAE

$

$

Currently unavailable

22

Toro 22915113

Eslok Nut 3/8-16

$

$

Currently unavailable

23

Toro 810283R2

Automatic Trans. Repair Parts & Service Manual

$

$

Currently unavailable

24

Toro 112473

STOP-CAM

$

$

Not available

25

Toro 6820

GRIP

$2.99

$

In Stock, only 1 left!

0

26

Toro 113337

ASS'Y-DUMP VALVE B

$

$

Not available

27

Toro 102025

SPACER

$

$

Not available

28

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

29

Toro 109779

NUT-HEX, JAM

$

$

Not available
