22-13KE01 (252-H) - Toro Yard Tractor (1988) WHEELS AND TIRES Parts Diagram

Yard Tractor

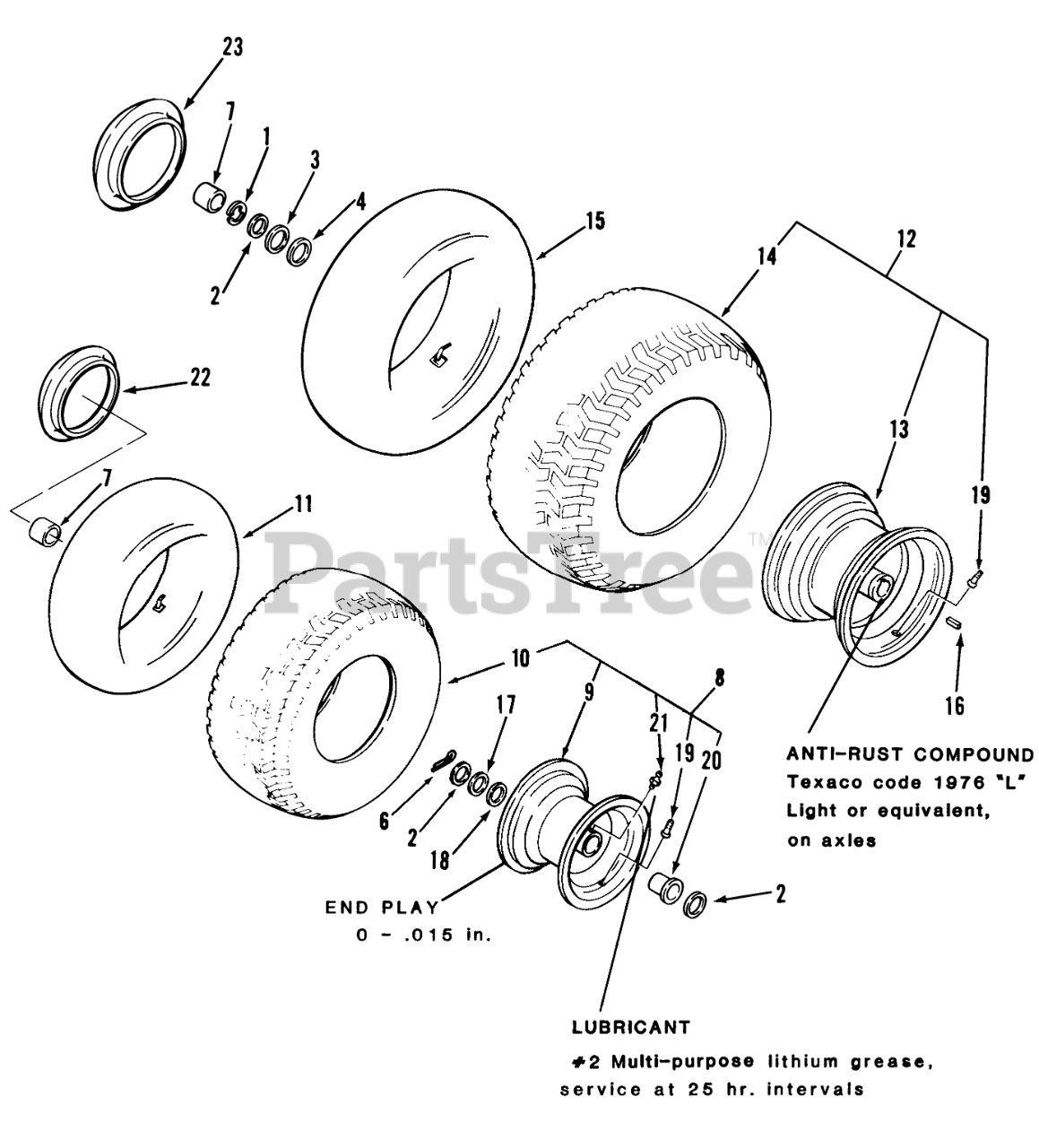

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 5700

E RING

$4.49

$

Usually ships in 3-6 days

0

2

Toro 109114

WASHER-WHEEL

$3.99

$

In Stock, only 2 left!

0

3

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

3

Toro 920252

Washer
(Superseded to 9202524)

$1.99

$

Usually ships in 3-6 days

0

4

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

4

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

6

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

7

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

8

Toro 110692

Assy-Wheel & Tire Front
(Superseded to 110697)

$

$

Not available

9

Toro 110693

Front Wheel (includes Rims items 19, 20 & 21)
(Superseded to 117285)

$

$

Not available

10

Toro 8119

TIRE15 X 6.00-6

$

$

Not available

11

Toro 100079

TUBE

$

$

Not available

12

Toro 113452

Assy-Wheel & Tire-Rear 252-H

$

$

Not available

12

Toro 112829

Assy-Wheel & Tire-Rear 257-H

$

$

Not available

13

Toro 112830

Rear Wheel (Complete)

$

$

Not available

14

Toro 100772

TIRE 22 X 7.50-12

$

$

Not available

14

Toro 111517

TIRE 22 X 9.00-12

$

$

Not available

15

Toro 1654

INNER TUBE

$

$

Not available

15

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$

$

Not available

16

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 5

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

18

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

19

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

20

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

21

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

22

Toro 114426

6"-HUB CAP LOGO

$

$

Not available

23

Toro 114428

12"-HUB CAP LOGO

$

$

Not available
