22-13KE01 (252-H) - Toro Yard Tractor (1988) PTO CLUTCH Parts Diagram

Yard Tractor

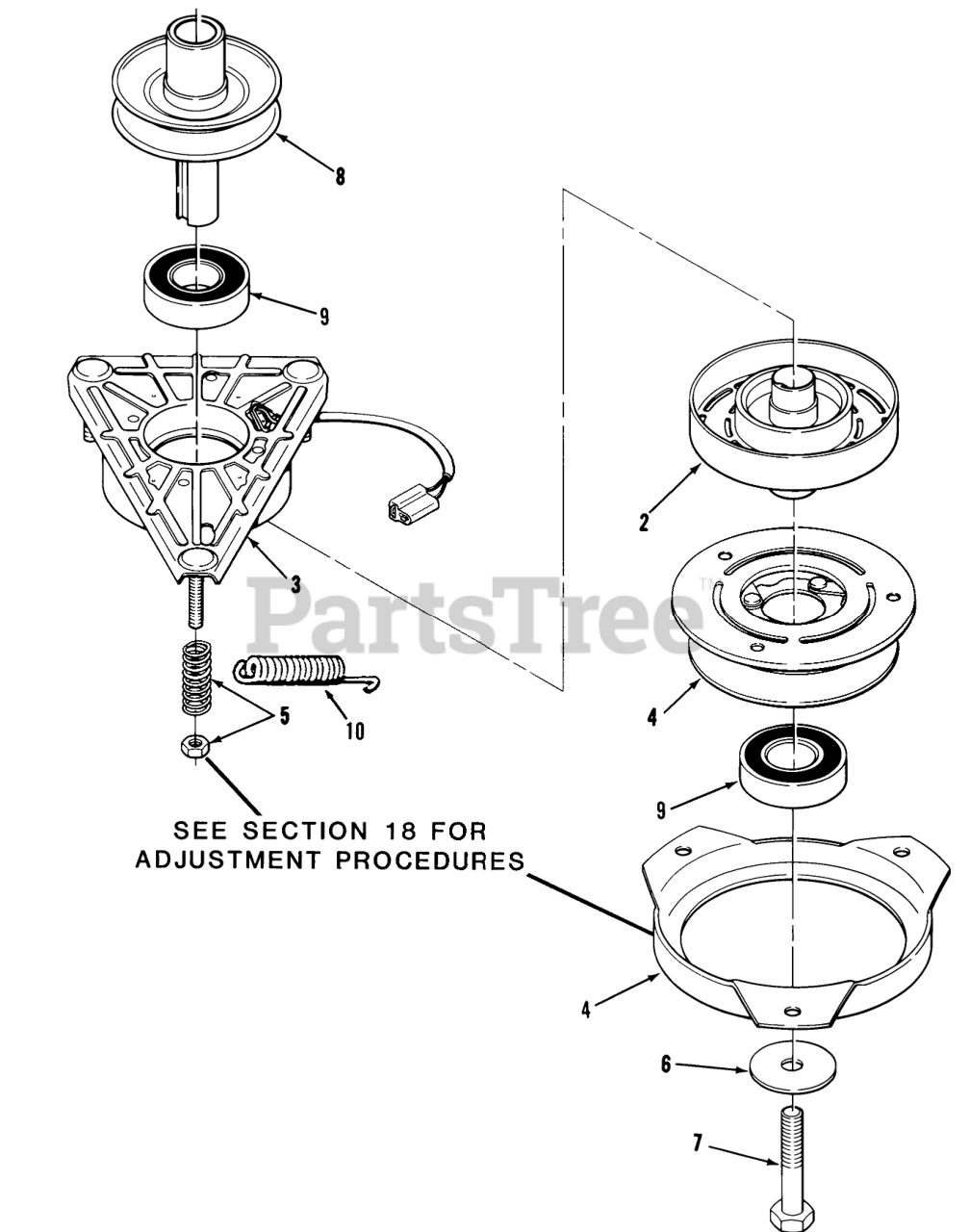

PTO CLUTCH Parts Diagram

  • Title

Toro 113426

Electric Clutch Assy (includes items 2, 3, 4 & 5)
(Superseded to 99-8012)

$

$

Not available

2

Toro 113820

ASS'Y-ROTOR

$

$

Not available

3

Toro 113821

Field Assy (includes one of item 9)

$

$

Not available

4

Toro 115347

Armature and Pulley Assy (includes one of item 9 and Brake Plate)

$

$

Not available

5

Toro 113823

ACCESS SPRING & NUT

$

$

Not available

6

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

7

Toro 112853

HHCS M10X1.5X120

$

$

Not available

8

Toro 113327

PULLEY-ENGINE

$

$

Not available

8

Toro 113326

PULLEY-ENGINE

$

$

Not available

9

Toro 114064

BEARING-ELEC CLUTCH

$78.99

$

In Stock, only 2 left!

0

10

Toro 105467

Spring

$

$

Not available
