22-13KE01 (252-H) - Toro Yard Tractor (1988) KAWASAKI FC540V TYPE AS-08 ENGINE Parts Diagram

Yard Tractor

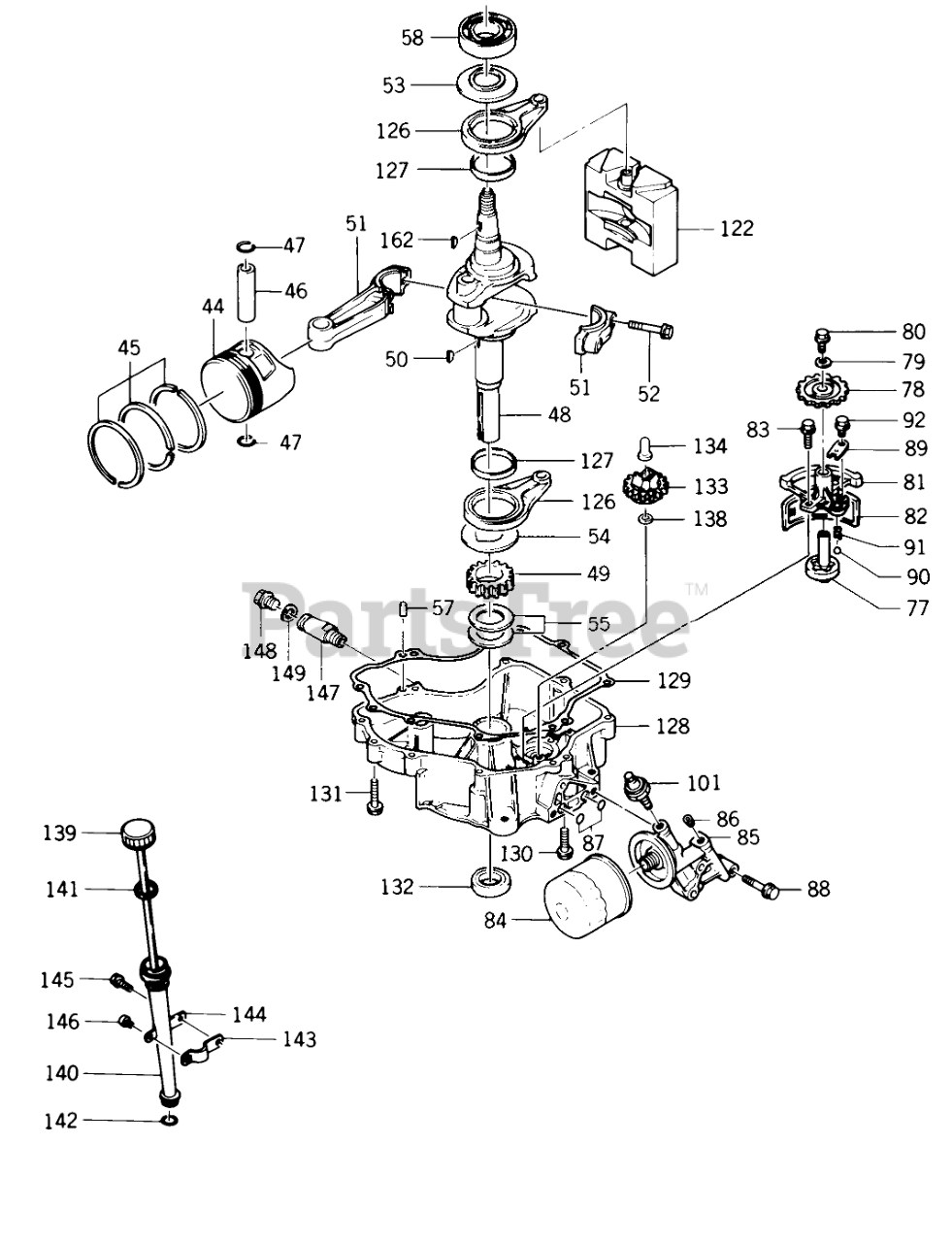

KAWASAKI FC540V TYPE AS-08 ENGINE Parts Diagram

  • Title

44

Toro KW10506

PISTON STD

$

$

Not available

44

Toro KW10509

PISTON 0.S.-.25MM

$

$

Not available

44

Toro KW10510

PISTON 0.S.-.50MM

$

$

Not available

44

Toro KW10508

PISTON 0.S.-.75MM

$

$

Not available

45

Toro KW10039

RING PISTON-STD

$

$

Not available

45

Toro KW10040

Piston Ring Set-.010 Over Size

$

$

Not available

45

Toro KW10041

RING-PISTON-.020

$

$

Not available

45

Toro KW10042

RING PISTON-.030

$

$

Not available

46

Toro KW10507

PIN PISTON

$

$

Not available

47

Toro KW10663

RING-SNAP

$

$

Not available

48

Toro KW10594

ASSY-CRANK SHAFT

$

$

Not available

49

Toro KW10606

GEAR-HELICAL

$

$

Not available

50

Toro KW10163

KEY-WOODRUFF

$4.99

$

Usually ships in 3-6 days

0

51

Toro KW10523

Connecting Rod Assty-Standard Size (Includes item 52)

$

$

Not available

51

Toro KW10524

Connecting Rod Assty-0.50mm Under Size (Includes item 52)

$

$

Not available

52

Toro KW10123

BOLT-CON ROD

$

$

Not available

53

Toro KW10658

SPACER

$

$

Not available

54

Toro KW10659

SPACER

$

$

Not available

55

Toro KW10636

SHIM-1.18

$

$

Not available

55

Toro KW10650

SHIM-1.215

$

$

Not available

55

Toro KW10637

SHIM-1.25

$

$

Not available

55

Toro KW10642

SHIM-1.60

$

$

Not available

55

Toro KW10638

SHIM-1.32

$

$

Not available

55

Toro KW10652

SHIM-1.355

$

$

Not available

55

Toro KW10639

SHIM

$

$

Not available

55

Toro KW10653

SHIM-1.425

$

$

Not available

55

Toro KW10640

SHIM-1.46

$

$

Not available

55

Toro KW10654

SHIM-1.495

$

$

Not available

55

Toro KW10641

SHIM-1.53

$

$

Not available

55

Toro KW10655

SHIM-1.565

$

$

Not available

55

Toro KW10656

SHIM-1.635

$

$

Not available

55

Toro KW10643

SHIM-1.67

$

$

Not available

55

Toro KW10657

SHIM-1.705

$

$

Not available

55

Toro KW10644

SHIM-1.74

$

$

Not available

57

Toro KW10224

PIN

$

$

Not available

58

Toro KW10610

BEARING-BALL

$

$

Not available

77

Toro KW10537

OIL PUMP ASS'Y

$

$

Not available

78

Toro KW10605

GEAR-HELICAL COIL

$

$

Not available

79

Toro KW10565

WASHER

$

$

Not available

80

Toro KW10288

Bolt
(Superseded to 93-8566)

$

$

Not available

81

Toro KW10540

PUMP COVER COMP

$

$

Not available

82

Toro KW10585

FILTER OIL INTERNAL

$

$

Not available

83

Toro KW10514

BOLT (8 X 25)

$

$

Not available

84

Toro KW10586

Filter-Oil
(Superseded to KW10761)

$18.99

$

In Stock, Qty 20+

0

85

Toro KW10563

PIPE COMP

$

$

Not available

86

Toro KW10576

PLUG

$

$

Not available

87

Toro KW10671

O-RING

$

$

Not available

88

Toro KW10516

BOLT (8 X 40)

$1.99

$

Usually ships in 3-6 days

0

89

Toro KW10053

PLATE

$

$

Not available

90

Toro KW10182

BALL-STEEL 5/16

$

$

Not available

91

Toro KW10679

SPRING

$

$

Not available

92

Kw10029

BOLT-FLANGED

$

$

Not available

101

Toro KW10129

SWITCH-OIL PRESSURE

$71.99

$

Usually ships in 3-6 days

0

122

Toro KW10511

WEIGHT COMP

$

$

Not available

126

Toro KW10580

ASSY-ROD

$

$

Not available

127

Toro KW10686

BEARING

$

$

Not available

128

Toro KW10583

COVER-CRANKCASE

$

$

Not available

129

Toro KW10489

GASKET

$

$

Not available

130

Toro KW10518

BOLT (8 X 30)

$

$

Not available

131

Toro KW10519

BOLT (8 X 45)

$

$

Not available

132

Toro KW10225

SEAL OIL

$

$

Not available

133

Toro KW10157

GOVERNON

$34.99

$

Usually ships in 3-6 days

0

134

Toro KW10140

SLEEVE-GOVERNOR

$

$

Not available

138

Toro KW10625

WASHER

$

$

Not available

139

Toro KW10598

GAGE-OIL

$

$

Not available

140

Toro KW10609

TUBE-FILLER

$

$

Not available

141

Toro KW10010

GASKET

$

$

Not available

142

Toro KW10184

O-RING

$

$

Not available

143

Toro KW10667

CLAMP

$

$

Not available

144

Toro KW10668

CLAMP

$

$

Not available

145

Toro KW10288

Bolt
(Superseded to 93-8566)

$

$

Not available

146

Toro KW10557

SCREW (6 X 8)

$

$

Not available

147

Toro KW10178

JOINT

$

$

Not available

148

Toro KW10232

PLUG DRAIN

$

$

Not available

149

Toro KW10128

GASKET

$

$

Not available

162

Toro KW10163

KEY-WOODRUFF

$4.99

$

Usually ships in 3-6 days

0
