22-13KE01 (252-H) - Toro Yard Tractor (1988) KAWASAKI FC540V TYPE AS-08 ENGINE Parts Diagram

Yard Tractor

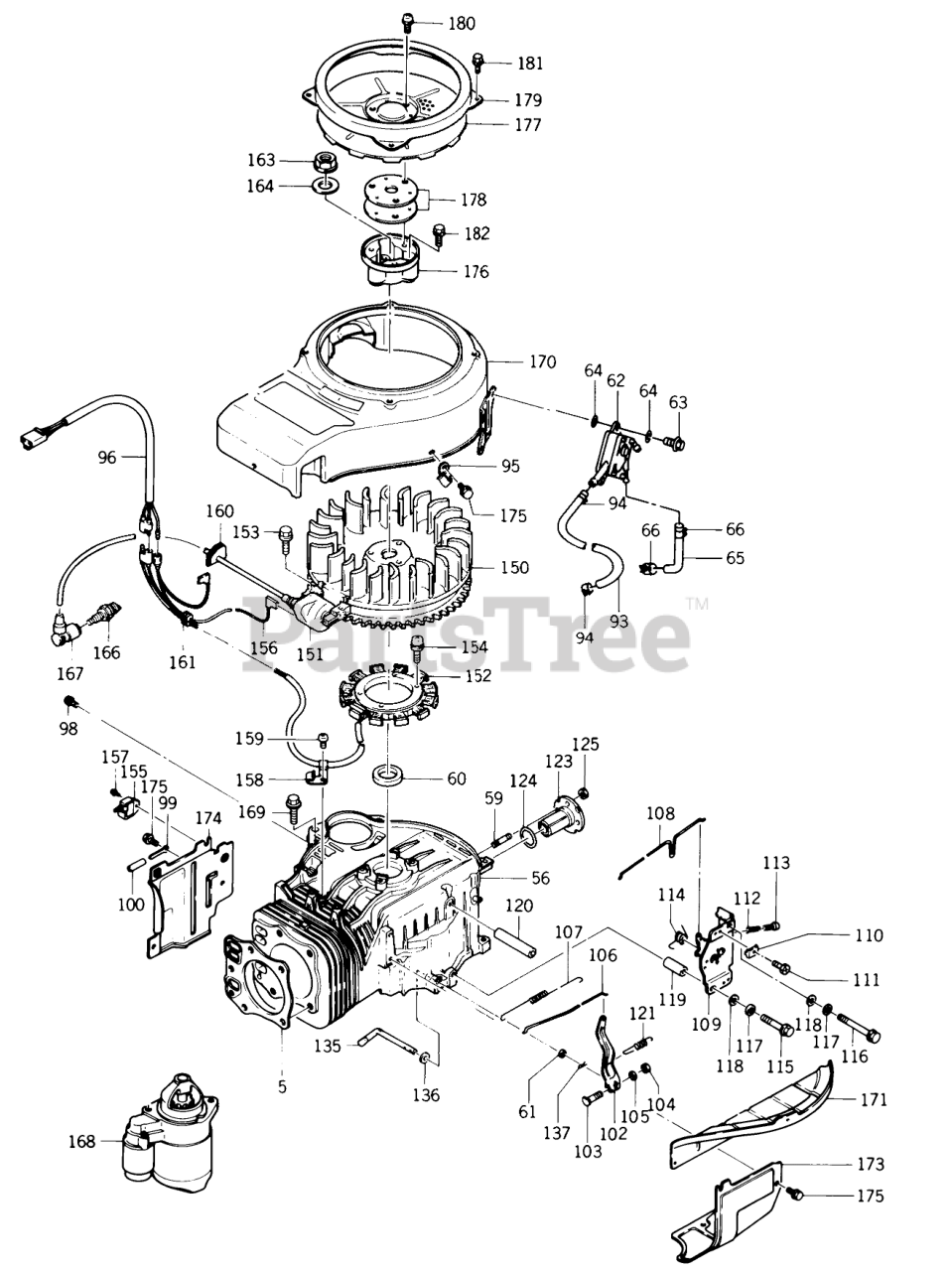

KAWASAKI FC540V TYPE AS-08 ENGINE Parts Diagram

  • Title

5

Toro KW10479

GASKET HEAD

$

$

Not available

56

Toro KW10595

CASE-CRANK

$2096.99

$

Usually ships in 3-6 days

0

59

Toro KW10193

STUD

$

$

Not available

60

Toro KW10226

SEAL OIL

$

$

Not available

61

Toro KW10227

SEAL-OIL, VC (6X10X2.5)

$

$

Not available

62

Toro KW10584

PUMP-FUEL ASSY

$

$

Not available

63

Toro KW10288

Bolt
(Superseded to 93-8566)

$

$

Not available

64

Toro KW10629

WASHER

$

$

Not available

65

Toro KW10672

TUBE

$

$

Not available

66

Toro KW10570

CLIP

$

$

Not available

93

Toro KW10611

TUBE

$

$

Not available

94

Toro KW10570

CLIP

$

$

Not available

95

Toro KW10665

CLAMP

$

$

Not available

96

Toro KW10560

HARNESS

$

$

Not available

98

Kw10029

BOLT-FLANGED

$

$

Not available

99

Toro KW10107

CLAMP

$

$

Not available

100

Toro KW10564

TUBE

$

$

Not available

102

Toro KW10553

ARM ASS'Y

$

$

Not available

103

Toro KW10189

Bolt
(Superseded to 93-8606)

$1.49

$

Usually ships in 3-6 days

0

104

Toro KW10101

NUT 6MM

$

$

Not available

105

Toro KW10139

Washer
(Superseded to 93-8645)

$

$

Not available

106

Toro KW10544

LINK GOVERNOR

$

$

Not available

107

Toro KW10680

SPRING-LINK

$

$

Not available

108

Toro KW10543

LINK CHOKE

$

$

Not available

109

Toro KW10591

PANEL-CONTROL

$

$

Not available

110

Toro KW10221

CLAMP

$

$

Not available

111

Toro KW10099

BOLT

$

$

Not available

112

Toro KW10113

SPRING

$

$

Not available

113

Toro KW10091

SCREW PAN HEAD 4X25

$

$

Not available

114

Toro KW10242

SPRING

$

$

Not available

115

Toro KW10497

BOLT (6 X 50)

$

$

Not available

116

Toro KW10498

BOLT (6 X 90)

$

$

Not available

117

Toro KW10142

WASHER-SPRING 6MM

$

$

Not available

118

Toro KW10102

WASHER, CLUTCH

$

$

Not available

119

Toro KW10217

COLLAR

$

$

Not available

120

Toro KW10661

COLLAR

$

$

Not available

121

Toro KW10681

SPRING

$

$

Not available

123

Toro KW10049

SHAFT

$

$

Not available

124

Toro KW10229

O-RING

$

$

Not available

125

Toro KW10195

Nut
(Superseded to 119-5954)

$11.99

$

In Stock, only 1 left!

0

135

Toro KW10577

ARM-PIVOT

$

$

Not available

136

Toro KW10137

WASHER-PLAIN 6MM

$

$

Not available

137

Toro KW10167

Pin
(Superseded to 93-8607)

$1.49

$

Usually ships in 3-6 days

0

150

Toro KW10554

FLYWHEEL ASS'Y

$

$

Not available

151

Toro KW10551

COIL IGNITION

$

$

Not available

152

Toro KW10604

COIL-CHARGING

$

$

Not available

153

Toro KW10028

Bolt

$

$

Not available

154

Toro KW10559

SCREW (6 X 25)

$

$

Not available

155

Toro KW10085

IGNITER

$

$

Not available

156

Toro KW10561

LEAD WIRE

$

$

Not available

157

Toro KW10558

SCREW (4 X 8)

$

$

Not available

158

Toro KW10666

CLAMP

$

$

Not available

159

Toro KW10567

SCREW

$

$

Not available

160

Toro KW10677

GROMMET

$

$

Not available

161

Toro KW10233

GROMMET

$

$

Not available

163

Toro KW10624

NUT

$

$

Not available

164

Toro KW10627

WASHER

$

$

Not available

166

Toro KW10676

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

167

Toro KW10087

CAP-SPARKPLUG

$39.99

$

Usually ships in 3-6 days

0

168

Toro KW10552

Starter Assembly See Section 10-7 For Complete Parts Breakdown
(Superseded to KW10744)

$

$

Not available

169

Toro KW10515

BOLT (8 X 35)

$

$

Not available

170

Toro KW10607

HOUSING-FAN

$

$

Not available

171

Toro KW10608

HOUSING-FAN

$

$

Not available

173

Toro KW10589

SHROUD

$

$

Not available

174

Toro KW10590

SHROUD

$

$

Not available

175

Toro KW10517

Bolt 6 x 12
(Superseded to 93-8600)

$1.49

$

Usually ships in 3-6 days

0

176

Toro KW10478

BRACKET

$

$

Not available

177

Toro KW10526

SCREEN

$

$

Not available

178

Toro KW10202

SHIM

$

$

Not available

179

Toro KW10599

GUARD

$

$

Not available

180

Toro KW10107

CLAMP

$

$

Not available

181

Toro KW10026

Bolt
(Superseded to 93-8680)

$0.99

$

Usually ships in 3-6 days

0

182

Toro KW10513

BOLT (8 X 20)

$

$

Not available
