22-13KE01 (252-H) - Toro Yard Tractor (1988) KAWASAKI FB460V TYPE AS-26 ENGINE Parts Diagram

Yard Tractor

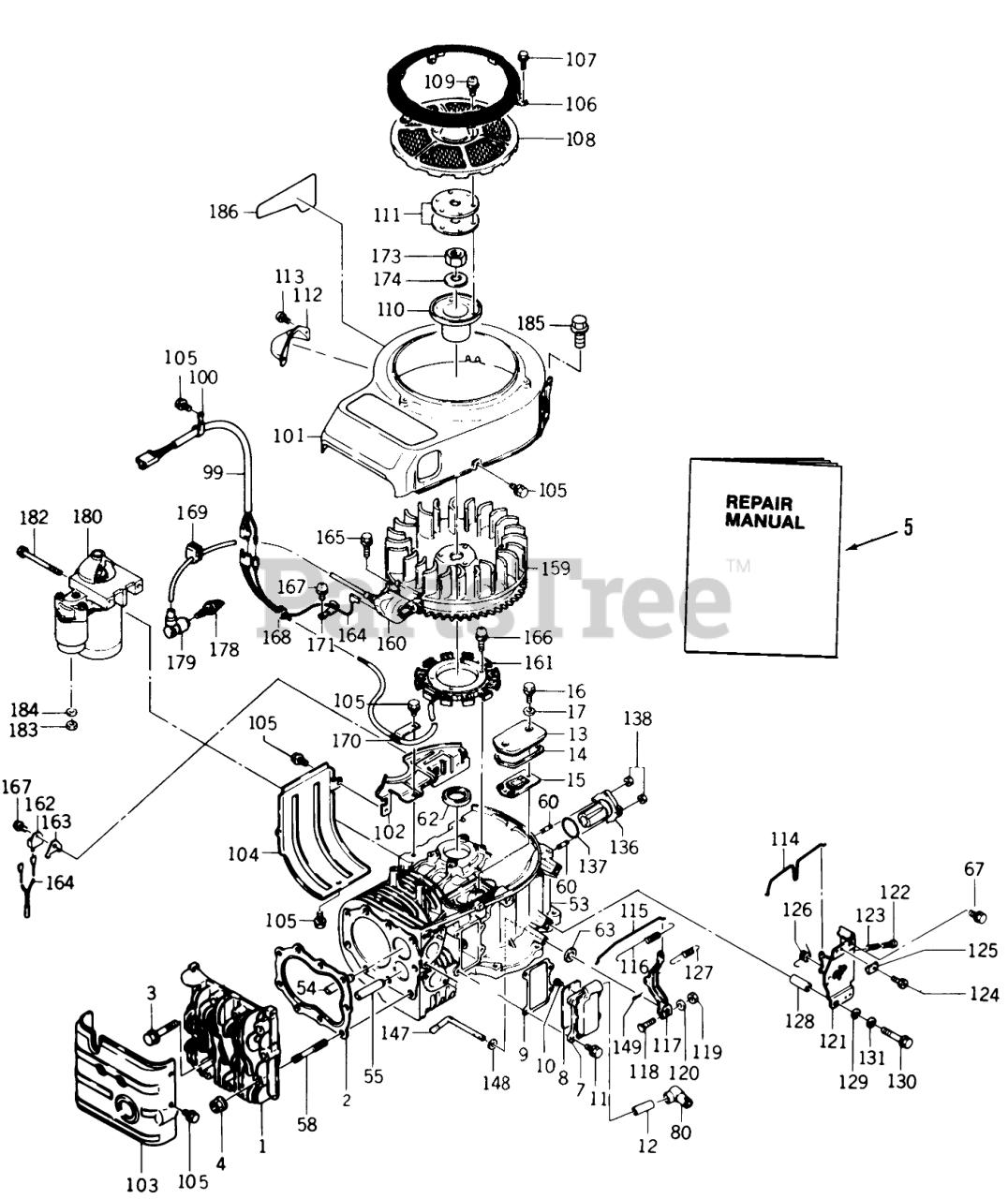

KAWASAKI FB460V TYPE AS-26 ENGINE Parts Diagram

  • Title

1

Toro KW10259

Cylinder Head

$

$

Not available

2

Toro KW10260

GASKET-HEAD

$

$

Not available

3

Toro KW10036

BOLT 10X55

$

$

Not available

4

Toro KW10196

NUT

$

$

Not available

5

Kawasaki FB460V Workshop Manual

$

$

Not available

7

Toro KW10156

COVER

$

$

Not available

8

Toro KW10059

COVER

$

$

Not available

9

Toro KW10247

GASKET

$

$

Not available

10

Toro KW10114

SCREW

$

$

Not available

11

Toro KW10032

Bolt
(Superseded to 93-8575)

$

$

Not available

12

Toro KW10230

TUBE

$

$

Not available

13

Toro KW10058

COVER

$

$

Not available

14

Toro KW10006

GASKET

$

$

Not available

15

Toro KW10062

BREATHER

$

$

Not available

16

Toro KW10122

BOLT

$

$

Not available

17

Toro KW10104

GASKET-OIL GAUGE

$

$

Not available

53

Toro KW10693

Crankcase Complete (includes items 54 & 55)

$

$

Not available

54

Toro KW10145

GUIDE-VALVE

$

$

Not available

55

Toro KW10146

VALVE-GUIDE

$

$

Not available

58

Toro KW10192

STUD

$

$

Not available

60

Toro KW10193

STUD

$

$

Not available

62

Toro KW10226

SEAL OIL

$

$

Not available

63

Toro KW10227

SEAL-OIL, VC (6X10X2.5)

$

$

Not available

67

Kw10029

BOLT-FLANGED

$

$

Not available

80

Toro KW10176

JOINT

$

$

Not available

99

Toro KW10096

WIRE

$

$

Not available

100

Toro KW10107

CLAMP

$

$

Not available

101

Toro KW10699

Fan Housing

$

$

Not available

102

Toro KW10173

HOUSING-FAN

$

$

Not available

103

Toro KW10257

SHROUD

$

$

Not available

104

Toro KW10155

Shroud

$

$

Not available

105

Kw10029

BOLT-FLANGED

$

$

Not available

106

Toro KW10701

GUARD

$

$

Not available

107

Toro KW10026

Bolt
(Superseded to 93-8680)

$

$

Not available

108

Toro KW10069

SHAFT-CHOKE

$

$

Not available

109

Toro KW10093

SCREW-PAN-WP-CROS

$

$

Not available

110

Toro KW10019

BRACKET

$

$

Not available

111

Toro KW10202

SHIM

$

$

Not available

112

Toro KW10057

COVER

$

$

Not available

113

Toro KW10095

SCREW 4X8

$

$

Not available

114

Toro KW10079

LINK

$

$

Not available

115

Toro KW10080

LINK

$

$

Not available

116

Toro KW10237

SPRING

$

$

Not available

117

Toro KW10089

GOVERNOR ARM COMP

$

$

Not available

118

Toro KW10189

Bolt
(Superseded to 93-8606)

$

$

Not available

119

Toro KW10101

NUT 6MM

$

$

Not available

120

Toro KW10139

Washer
(Superseded to 93-8645)

$

$

Not available

121

Toro KW10702

Control Panel Assy (includes items 122, 123, 124, 125 & 126)

$

$

Not available

122

Toro KW10091

SCREW PAN HEAD 4X25

$

$

Not available

123

Toro KW10113

SPRING

$

$

Not available

124

Toro KW10099

BOLT

$

$

Not available

125

Toro KW10221

CLAMP

$

$

Not available

126

Toro KW10242

SPRING

$

$

Not available

127

Toro KW10238

Spring

$

$

Not available

128

Toro KW10217

COLLAR

$

$

Not available

129

Toro KW10102

WASHER, CLUTCH

$

$

Not available

130

Toro KW10020

BOLT 6X50

$

$

Not available

131

Toro KW10142

WASHER-SPRING 6MM

$

$

Not available

136

Toro KW10049

SHAFT

$

$

Not available

137

Toro KW10229

O-RING

$

$

Not available

138

Toro KW10195

Nut
(Superseded to 119-5954)

$11.99

$

In Stock, only 1 left!

0

147

Toro KW10135

ARM-GOVERNOR

$

$

Not available

148

Toro KW10137

WASHER-PLAIN 6MM

$

$

Not available

149

Toro KW10167

Pin
(Superseded to 93-8607)

$

$

Not available

159

Toro KW10090

FLYWHEEL ASSY

$

$

Not available

160

Toro KW10086

IGNITION COIL

$

$

Not available

161

Toro KW10171

COIL-CHARGING

$

$

Not available

162

Toro KW10085

IGNITER

$

$

Not available

163

Toro KW10100

BRACKET

$

$

Not available

164

Toro KW10097

WIRE-LEAD

$

$

Not available

165

Toro KW10028

Bolt

$

$

Not available

166

Toro KW10094

SCREW-PAN-WP-CROS

$

$

Not available

167

Toro KW10095

SCREW 4X8

$

$

Not available

168

Toro KW10233

GROMMET

$

$

Not available

169

Toro KW10234

GROMMET

$

$

Not available

170

Toro KW10222

CLAMP

$

$

Not available

171

Toro KW10103

CLAMP

$

$

Not available

173

Toro KW10110

NUT 18MM

$

$

Not available

174

Toro KW10199

WASHER

$

$

Not available

178

Toro KW10001

Plug-Spark
(Superseded to 95-9833)

$

$

Not available

179

Toro KW10087

CAP-SPARKPLUG

$49.99

$

Usually ships in 3-6 days

0

180

Toro KW10088

STARTER ASSY ELECTRI

$

$

Not available

182

Toro KW10191

BOLT

$

$

Not available

183

Toro KW10127

NUT-8M/M

$

$

Not available

184

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

185

Toro KW10288

Bolt
(Superseded to 93-8566)

$

$

Not available
