22-13KE01 (252-H) - Toro Yard Tractor (1988) FUEL PUMP Parts Diagram

Yard Tractor

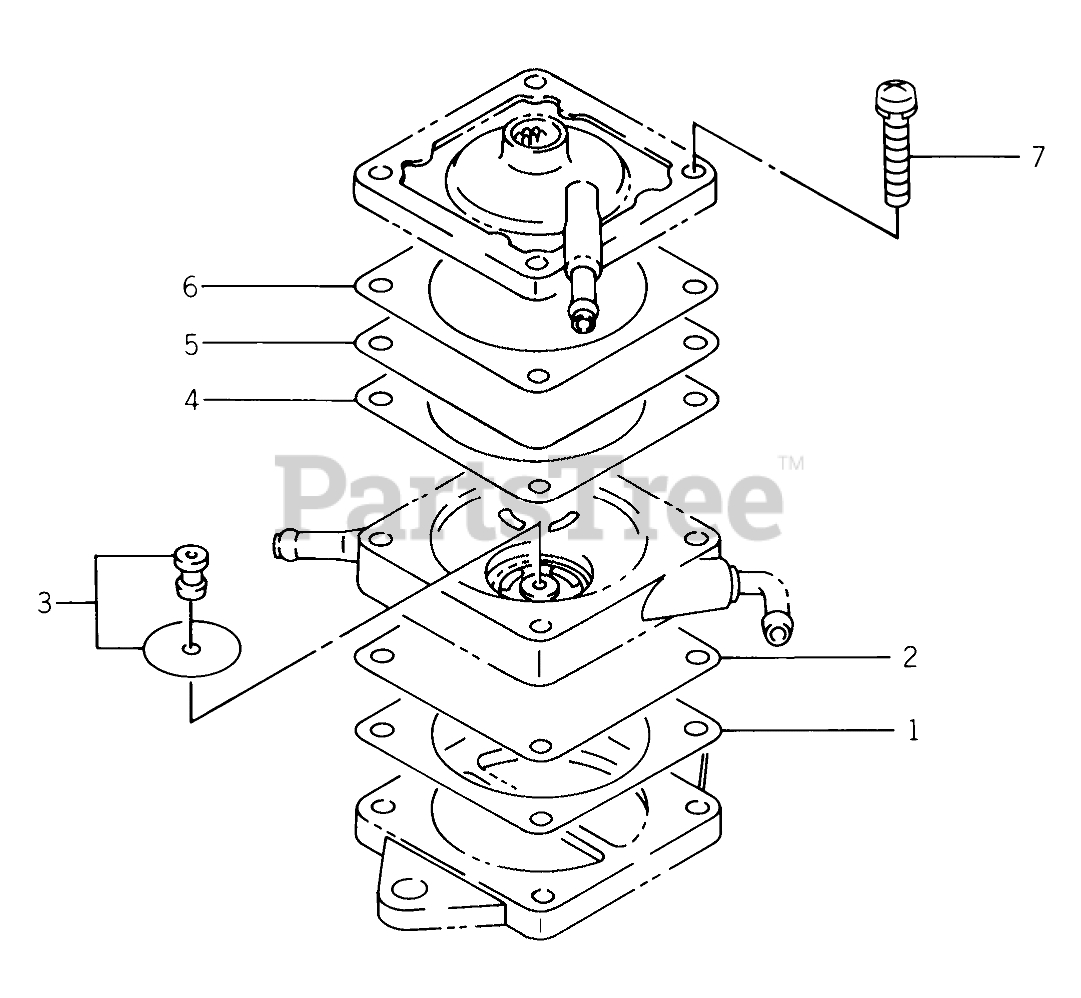

FUEL PUMP Parts Diagram

  • Title
1

Toro KW10704

GASKET

$

$

Not available

2

Toro KW10705

DIAPHRAGM

$

$

Not available

3

Toro KW10706

ASS'Y-VALVE

$

$

Not available

4

Toro KW10707

GASKET

$

$

Not available

5

Toro KW10708

DIAPHRAGM

$

$

Not available

6

Toro KW10709

GASKET

$

$

Not available

7

Toro KW10619

SCREW

$

$

Not available
