22-13KE01 (252-H) - Toro Yard Tractor (1988) FRAME, SHEET METAL AND COVERS Parts Diagram

Yard Tractor

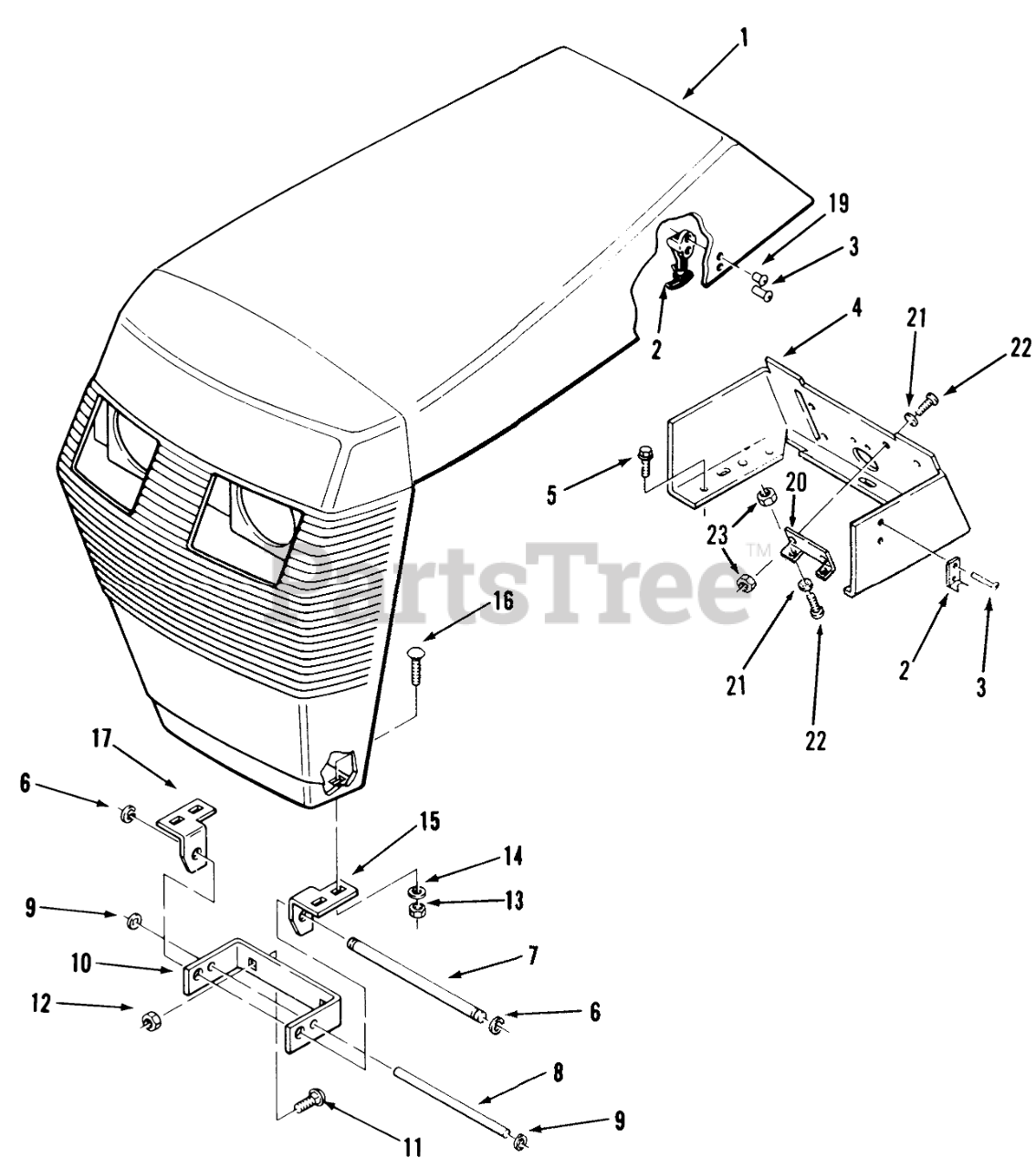

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 113458

Hood
(Superseded to 11-5679)

$

$

Not available

2

Toro 106825

ASSY-FLEX DRAW LATCH

$53.99

$

Usually ships in 3-6 days

0

3

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

4

Toro 112472

Console 252-H

$

$

Not available

4

Toro 112704

Console

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

8

Toro 108243

ROD-HOOD STOP

$

$

Not available

9

Toro 5466

SPEED NUT

$

$

Not available

10

Toro 112695

Bracket-Hood Pivot

$

$

Not available

11

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

14

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

15

Toro 109146

BRKT-GRILL PIVOT R (NS)
(Superseded to 109146-01)

$

$

Not available

16

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

16

Toro 900016

Carriage Bolt 1/4-20 x 1
(Superseded to 3229-2)

$3.49

$

Usually ships in 3-6 days

0

17

Toro 109145

BRKT-GRILL PIVOT R
(Superseded to 109145-01)

$34.99

$

Usually ships in 3-6 days

0

19

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

20

Toro 112506

BRACKET

$9.49

$

Usually ships in 3-6 days

0

21

Toro 920150

Washer-Lock
(Superseded to 3254-9)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 9107622

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

23

Toro 915960

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0
