22-13KE01 (252-H) - Toro Yard Tractor (1988) ELECTRICAL SYSTEM-257-H Parts Diagram

Yard Tractor

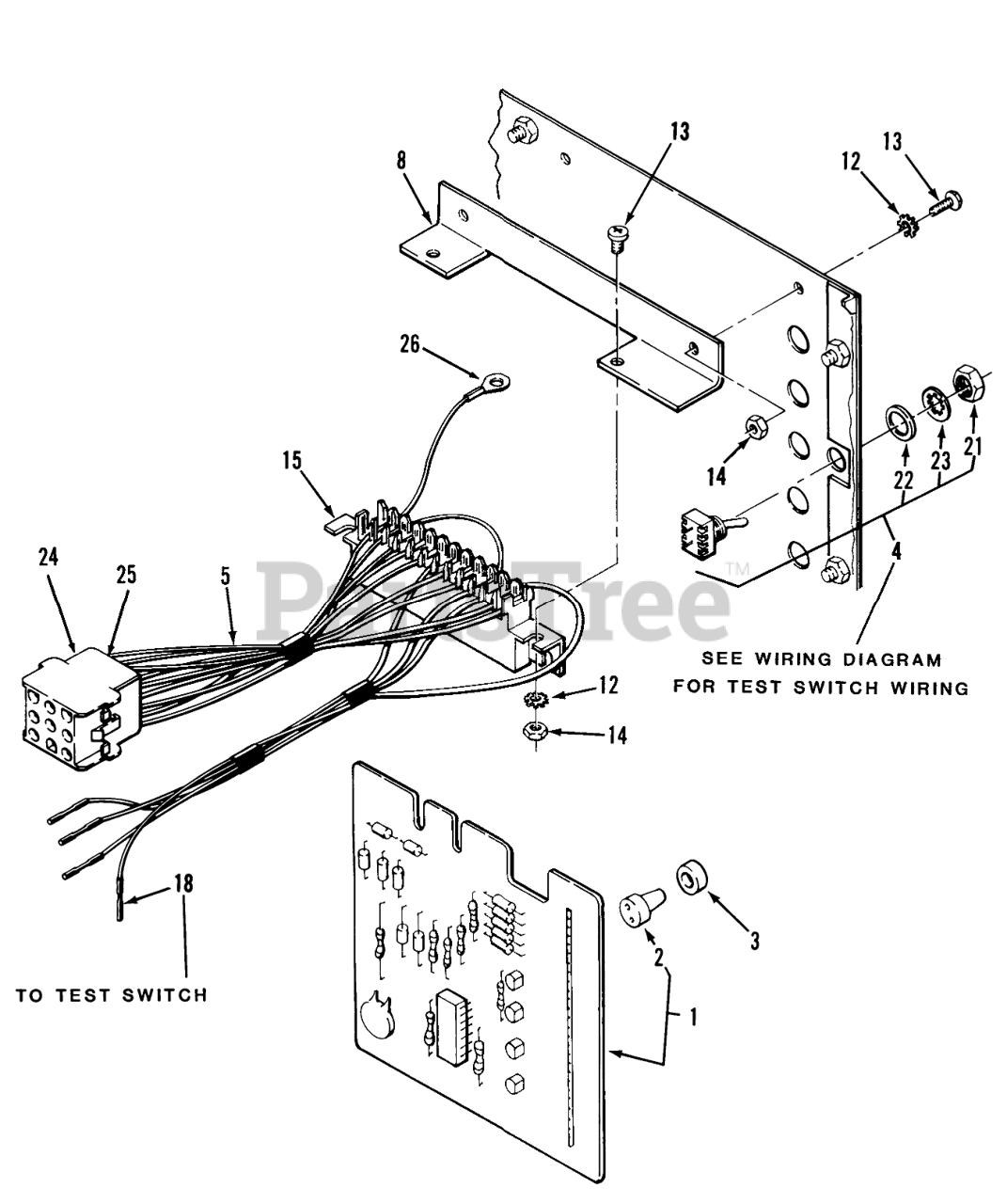

ELECTRICAL SYSTEM-257-H Parts Diagram

  • Title

1

Toro 111390

P.C Board (Includes item 2)
(Superseded to 115207)

$

$

Not available

2

Toro 111331

LIGHT INDICATOR

$9.49

$

Usually ships in 3-6 days

0

3

Toro 111343

ASSY LENS & BUSHING

$

$

Not available

4

Toro 111353

SWITCH TOGGLE

$

$

Not available

5

Toro 113139

P.C. BOARD HARNESS

$275.99

$

Usually ships in 3-6 days

0

8

Toro 112506

BRACKET

$9.49

$

Usually ships in 3-6 days

0

12

Toro 920150

Washer-Lock
(Superseded to 3254-9)

$0.99

$

Usually ships in 3-6 days

0

13

Toro 910762

SCREW

$

$

Not available

14

Toro 915960

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 111374

Molex Connector (Part of 6)

$

$

Not available

18

Toro 111485

062 X 031 TAB RECEPT

$

$

Not available

21

Toro 111359

NUT F/W 116796

$4.49

$

Usually ships in 3-6 days

0

22

Toro 111360

RING LOCKING

$

$

Not available

23

Toro 111767

Washer
(Superseded to 3254-8)

$0.99

$

Usually ships in 3-6 days

0

24

Toro 113119

9-CIRCUIT CAP

$

$

Not available

25

Toro 113123

TERMINAL - SOCKET

$

$

Not available

26

Toro 113164

No. 6 Ring Terminal

$

$

Currently unavailable
